2.4.2 Ethernet communication

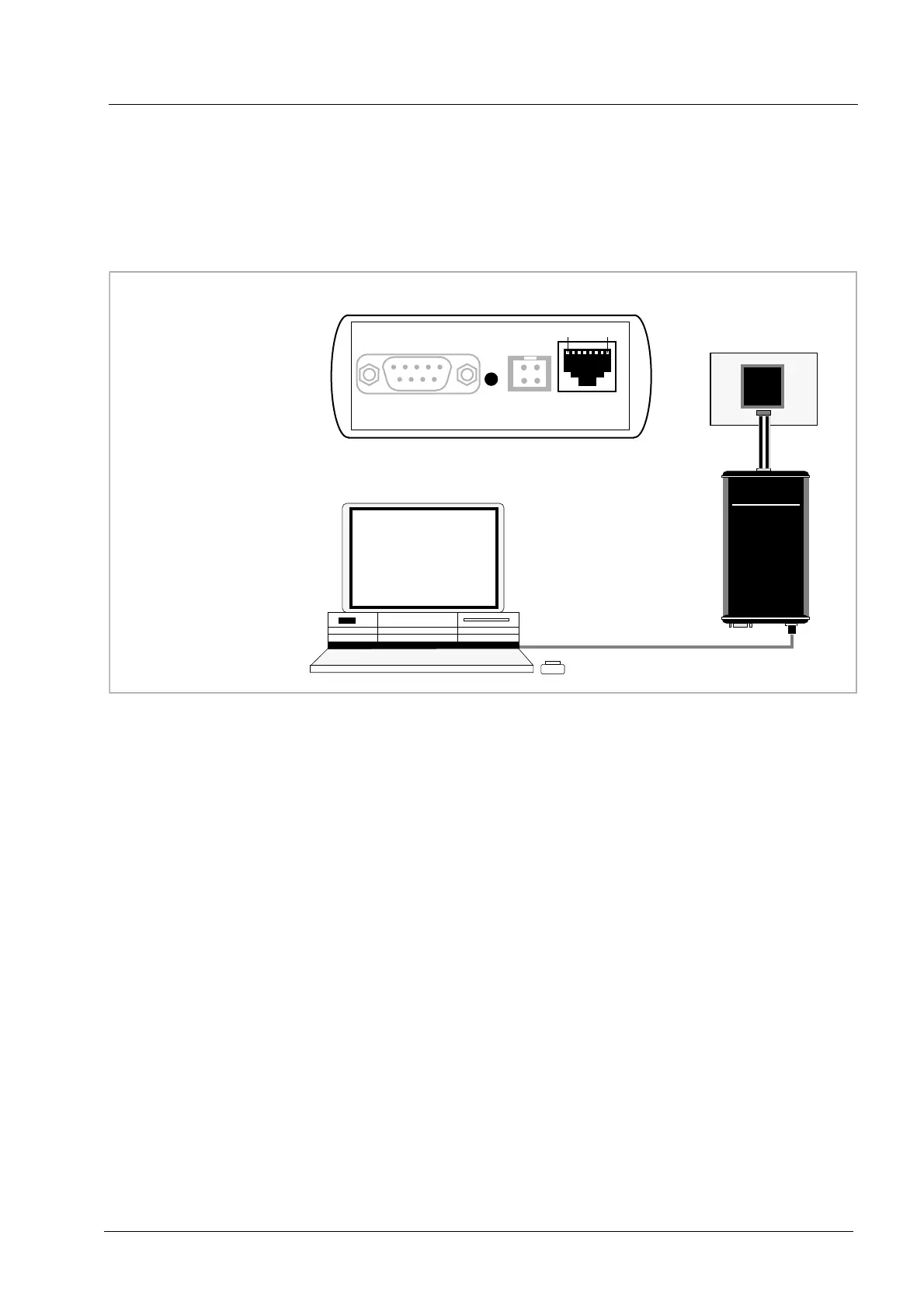

The BDI1000 has a built-in 10 BASE-T Ethernet interface (see figure below). Connect an UTP (Un-
shilded Twisted Pair) cable to the BD1000. For thin Ethernet coaxial networks you can connect a
commercially available media converter (BNC --> 10 BASE-T) between your network and the
BDI1000. Contact your network administrator if you have questions about the network.
10 BASE-T
PC Host
Target System
Ethernet (10 BASE-T)
1 - TD+
2 - TD-
3 - RD+
4 - NC
5 - NC
6 - RD-
7 - NC
8 - NC
Connector
BDI1000
AA
AA
bb
bb
aa
aa
tt
tt
rr
rr
oo
oo
nn
nn
AA
AA
GG
GG
SS
SS
ww
ww
ii
ii
ss
ss
ss
ss
MM
MM
aa
aa
dd
dd
ee
ee
RS232 LI POWER 10 BASE-T
18
When the LI LED light is ON, data link is successful between the
UTP
port of the BDI1000 and the hub to which it is connected.
