ABB 261GS - Version with the Options LCD Indicator and Harting Han Plug

44 IM/261Gx/Ax-EN Rev. 08 | 261Gx, 261Ax
9.5.2 Version with the options “LCD indicator” and “Harting Han plug”

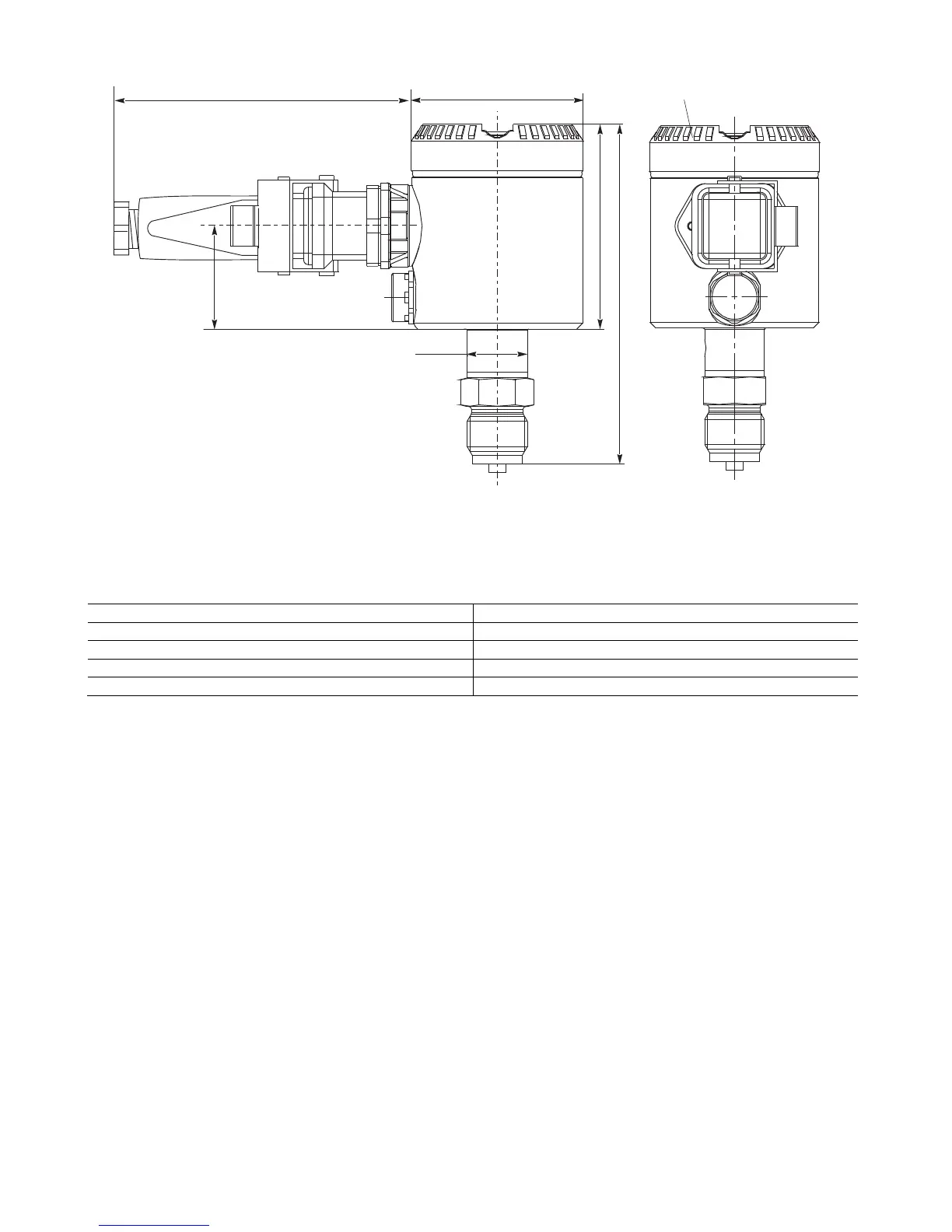

Fig. 25: Dimensions — with options
1 Housing cover for LCD indicator option
1 Dimensions for sensor code C, F
Dimension "A" is dependent on the process connection as per the following table:
Process connection Dimension "A" in mm (inch)
1/2-14 NPT male thread 111 (4.37)
1/2-14 NPT female thread 106 ( 4.17 ) / (110 (4.33) sensor V)
DIN EN 837-1 G 1/2 B 111 (4.37)
DIN EN 837-1 G 1/2 B ( HP ) for connections with convex seal 121 (4.76)
M10685-01
Ø 60 (2.36)
102 (4.02)
72 (2.83)
36 (1.42)
A + 8
Ø 21 (0.83)
Ø 28 (2.13)
1)
1
