1.6 Plates and symbols
1.6.1 Safety / warning symbols, note symbols
The warnings in these instructions are structured as follows:
DANGER
The signal word "DANGER" indicates an imminent danger.
Failure to observe this information will result in death or
severe injury.
WARNING
The signal word "WARNING" indicates an imminent danger.
Failure to observe this information may result in death or
severe injury.
CAUTION
The signal word "CAUTION" indicates an imminent danger.
Failure to observe this information may result in minor or
moderate injury.
NOTICE
The signal word "NOTICE" indicates useful or important
information about the product.
The signal word "NOTICE" is not a signal word indicating a
danger to personnel. The signal word "NOTICE" can also
refer to material damage.
1.7 Name plate

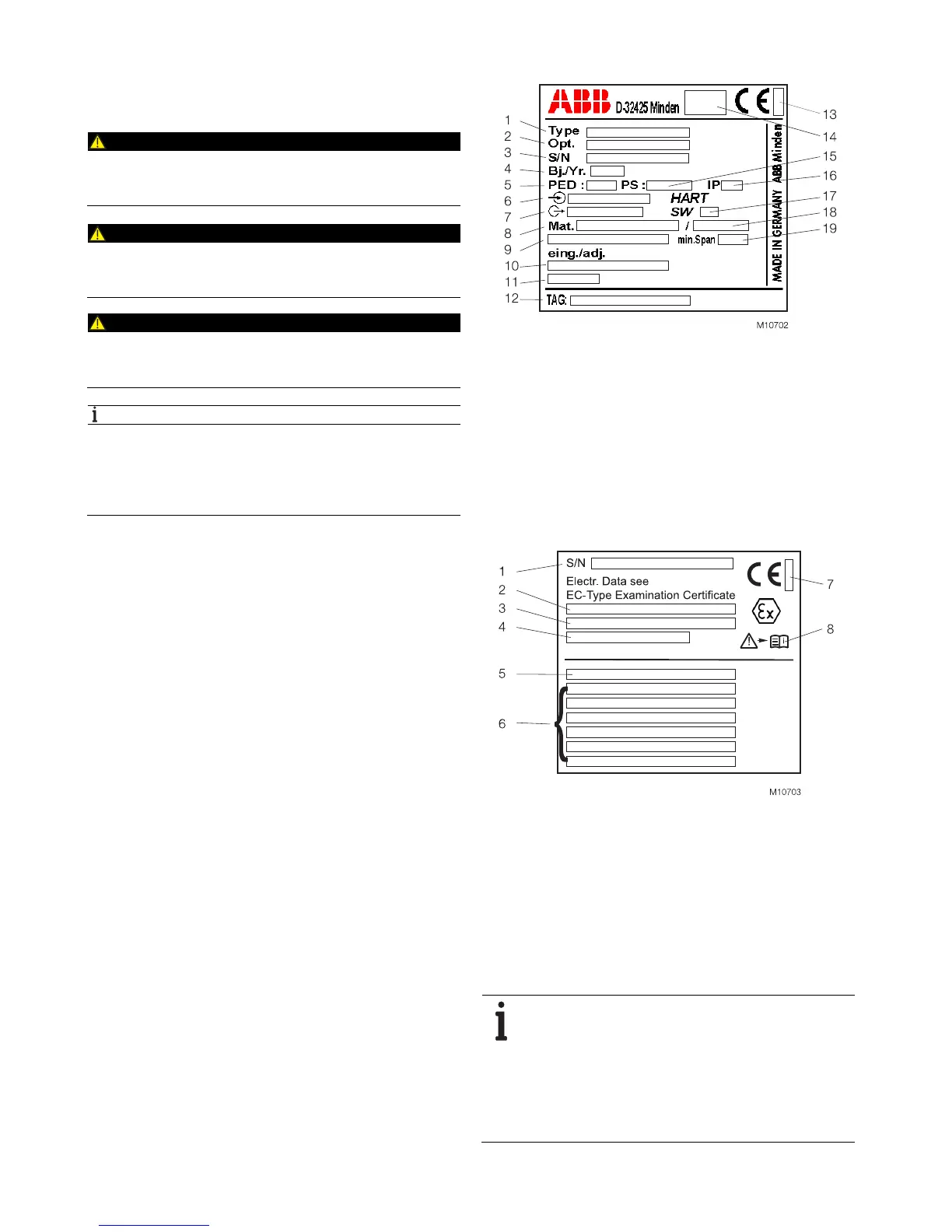

Fig. 1: Name plate for pressure transmitter model 261xx
1 Device type / Order code |
2 Options – additional information on the order code |
3 Device serial number (factory no.) | 4 Year of manufacture |
5 Identification code with reference to the Pressure Equipment
Directive (SEP or 1 G) | 6 Power supply | 7 Output signal |
8 Materials that come into contact with the medium |
9 Measuring range lower limit to measuring range upper limit (LRL to
URL) | 10 Measuring range, set to … | 11 HART output (process
variable) | 12 Measuring point tag (max. 32 characters) |
13 "SIL2" identification code (optional) | 14 Permissible pressure |
15 Degree of protection | 16 Software version |
17 Filling fluid, if present | 18 Minimum measuring span
Fig. 2: Additional name plate for devices intended for use in
explosion risk areas or for devices with direct mount or
remote seals (optional)
1 Serial number (factory no.) | 2 Type of protection |
3 Type of protection (continued) |
4 Number of the EC-type-examination certificate |
5 Order code for direct mount seal |
6 Type of seal, nominal diameter, max. pressure, temperature limits,
sealing surface, material, filling fluid |
7 Identification number of the notified body according to ATEX
(optional) | 8 Symbol: "Notice". Observe the specifications in the
operating instructions and type-examination certificate.
IMPORTANT (NOTICE)
For information on the individual letters/numbers that
make up the order code, please refer to the order
confirmation or associated data sheet.
For information about labeling in accordance with the
Pressure Equipment Directive, please observe the
information in "Compliance with Pressure Equipment
Directive".
