78 OI/266/FF/ADD-EN Rev. B | 2600T Series Pressure transmitters
266 Models - FOUNDATION Fieldbus

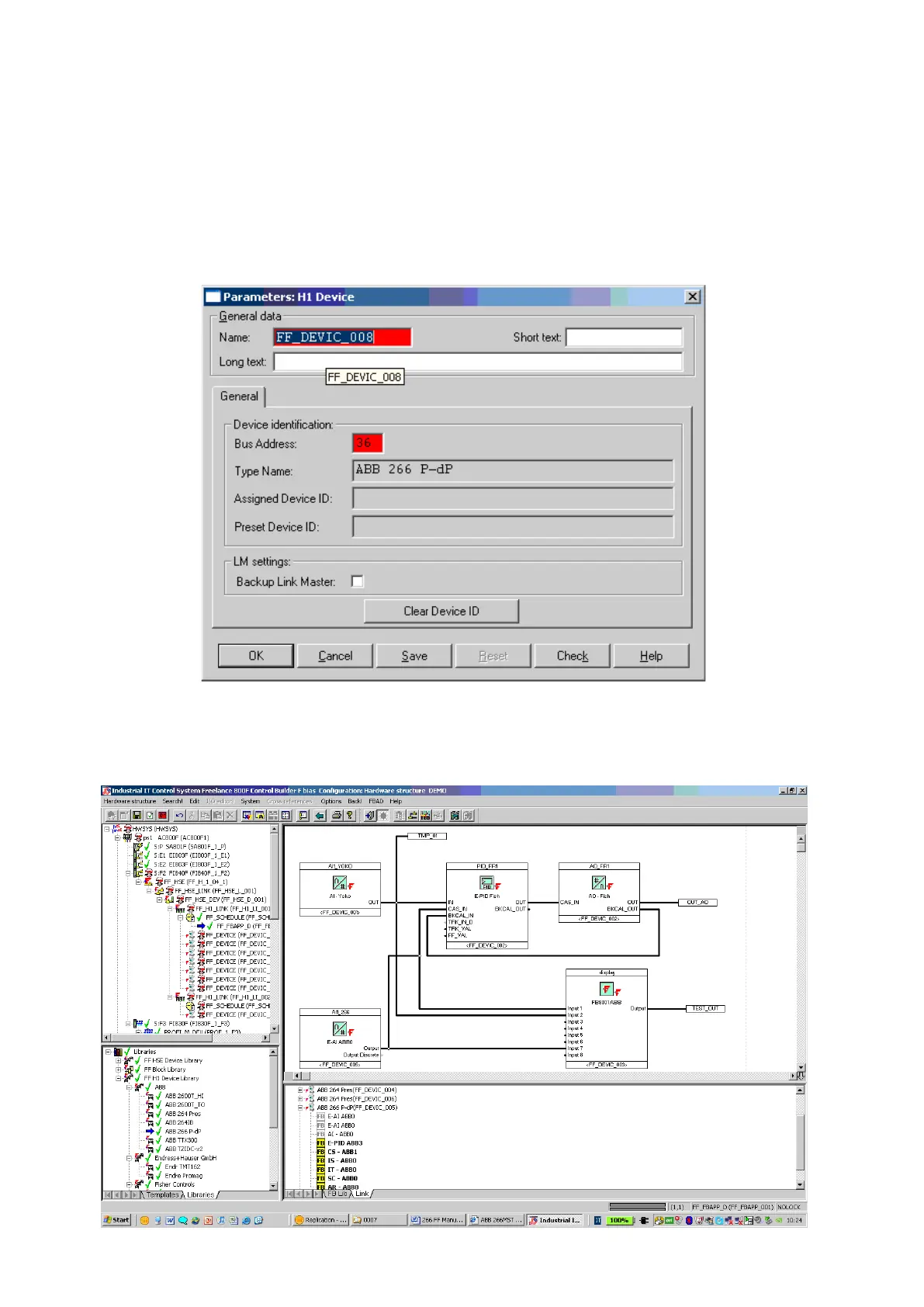

………parameters that can be changed as desired opening the “Parameters” box of the device with a right mouse click.
From this box is also possible select the Backup Link Master function (LAS) of the device.
Design of the Function Block Application (FBAP)
Select the FF Function Block Application section. In the lower part of the screen the list of the selected devices and their function
blocks will appear. The yellow blocks mean that they are not in use and thus available. Drag and drop these blocks to move them in
the upper box, rename and link them with other blocks in order to achieve the desired control strategy.
