ABB 266 - Transducer Blocks Diagram

86 OI/266/FF/ADD-EN Rev. B | 2600T Series Pressure transmitters
266 Models - FOUNDATION Fieldbus

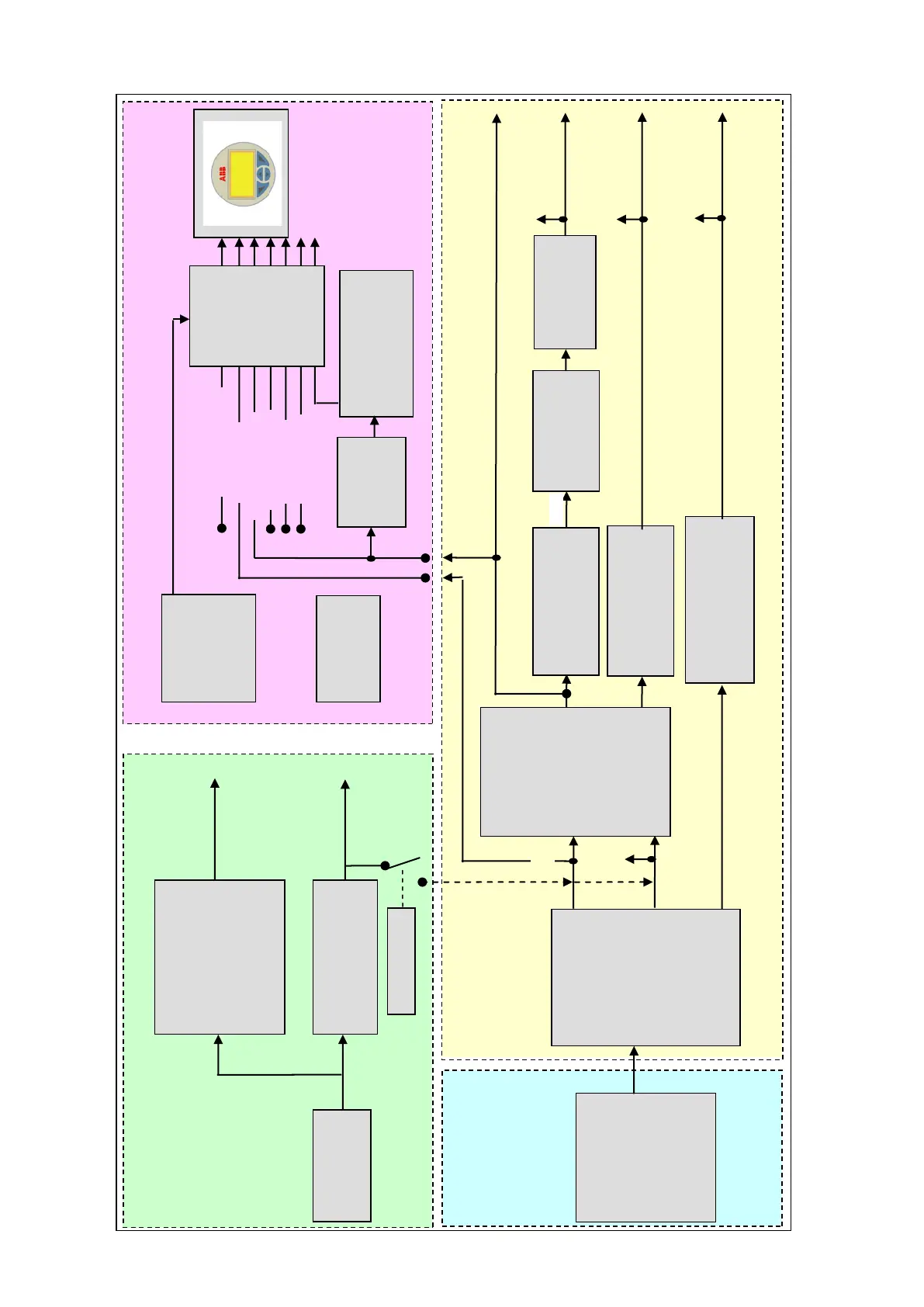

Transducer Blocks Diagram
PILD_Status
PILD_COMMAND
NORMAL
PILD_DETECTION_TIME
PILD_MAX_PRESSURE_DEV
TRAINING
PILD_DETECTION_TIME
PILD_RETRAIN
PILD_TRAIN_TIME
PILD_TRAIN_RETRIES
PILD_SENSITIVITY
PILD_BAND_AUTOTUNING
PILD_BAND_HI
PILD_BAND_LO
PILD_OUTPUT
PILD_TRAIN_OUTPUT
PILD_AFFECT_PV
ADVANCED DIAGNOSTIC TRANSDUCER BLOCK / PILD
Physical I/O
SENSOR_TYPE
SENSOR_SERIAL_NUMBER
INTEGRATION_TIME
SENSOR_RANGE_100%
SENSOR_RANGE_0%
SENSOR_RANGE_UNIT
RAW
VALUES
CAL_VALUE
(1) (MV)
STATIC_P_
TRIM_VALUE (MV)
Static Pressure Ranging
TERTIARY_VALUE_RANGE_100
%
TERTIARY_VALUE_RANGE_0%
TERTIARY_VALUE_RANGE_UNIT
PdP Output Scale
QUATERNARY_RANGE
0 – 100 %
TERTIARY_VALUE
(STATIC PRESSURE)
Calibration
/ Trimming
CAL_POINT_HI
CAL_POINT_LO
CAL_MIN_SPAN
STATIC_P_CAL_POINT_HI
STATIC_P_CAL_POINT_LO
STATIC_P_MIN_SPAN
SENSOR_TEMP_CAL_POINT
PRESSURE TRANSDUCER BLOCK
PV_Bias/ Offset
[PV = MV +/- BIAS_VALUE]
DESIRED_PRIMARY_VALUE
RESET_BIAS
BIAS_VALUE
DESIRED_STATIC_P_VALUE
RESET_STATIC_P_BIAS
STATIC_P_BIAS_VALUE
PdP Ranging
PRIMARY_VALUE_RANGE_100%
PRIMARY_VALUE_RANGE_0%
PRIMARY_VALUE_RANGE_UNIT
Transfer Function
QUATERNARY_LIN_TYPE
QUATERNARY_CUT_OFF
QUATERNARY_LIN_POINT
Sensor temp Ranging
SECONDARY_VALUE_RANGE_100%
SECONDARY_VALUE_RANGE_0%
SECONDARY_VALUE_RANGE_UNIT
SECONDARY_VALUE
(SENSOR TEMPERATURE)
PRIMARY_VALUE
(PRESSURE P-dP)
PV (2)
SV (3)
AI _CHANNEL = 1
AI _CHANNEL = 3
AI _CHANNEL = 2
To HMI
To HMI
To HMI
To HMI
QUATERNARY_VALUE
(SCALED_PV [%])
AI _CHANNEL = 4
Transfer
Function
HMI_LIN_TYPE
Output Scale
HMI_VARIABLE_RANGE_100%
HMI_VARIABLE_RANGE_0%
HMI_VARIABLE_RANGE_UNIT
HMI_General
HMI_LANGUAGE
HMI_CONTRAST
HMI TRANSDUCER BLOCK
From Function Bllcck
Outputs
HMI Selection
HMI_VARIABLE_1 HMI_VARIABLE_2 HMI_VARIABLE_3 HMI_VARIABLE_4
HMI_Setting
HMI_MODE
HMI_LINE_1 HMI_LINE_2
HMI_BARGRAPH HMI_SEQUENCE
TEMPERATURE
CAL_VALUE
PRIMARY_VARIABLE
STATIC_PRESSURE
QUATERNARY_VALUE
