2600T Series Pressure transmitters | OI/266/LowP-EN Rev.A 9
4 Opening the box

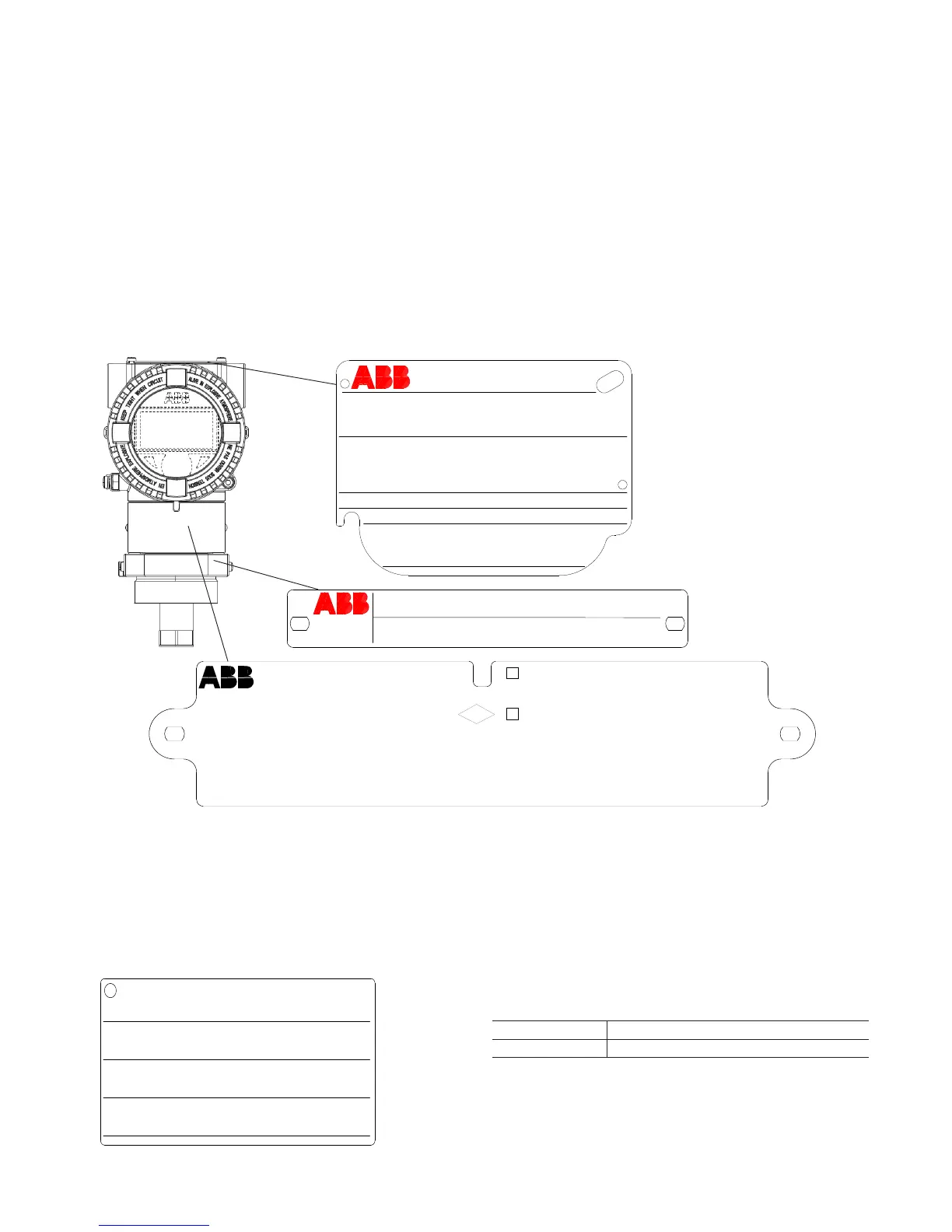

Figure 2: Product identification
Local keys below label
PRODUCT CODE
SEAL-H
SEAL-L
SPEC.REQUEST
LRL/URL
SPAN LIMITS
POWER SUPPLY
OUTPUT SIGNAL
ABB S.p.A.
Made in Italy
TS
PS
SERIAL\NUMBER
SENSOR DIAPH.-FILL
FLANGE/CONN.-GASKET/S
H DIAPH.-FILL
L DIAPH.-FILL
SEAL
HW Rev.
MD:
PED:
MWP/OVP
General Purpose IP66/67 ENCL Type 4X Max.Supply Voltage 30 Vdc
XP (US) CL I/DIV1/GP ABCD, DIP CL II, III /DIV1/GP EFG,
XP (Canada) CL I/DIV1/GP BCD, DIP CL II, III /DIV1/GP EFG,
CL I, ZONE 1, AEx/Ex d IIC T4 -50°C<Ta<+85°C
ENCL Type 4X T AMB=85°C "Seal not required"
APPROVED
FM
C US
ABB S.p.A.
Lenno (Co) Italy
A
B
C
2600T
Tag
Number
Calib.
Range
PRESSURE TRANSMITTER
4 Opening the box
4.1 Identification
The instrument is identified by the data plates shown in Figure 3. The certification plate (ref. A): contains the certification related
parameters for use in Hazardous area.
The Nameplate (ref.B), always made of AISI 316 ss, provides information concerning the model code, maximum working pressure,
range and span limits, power supply, output signal, diaphragms material, fill fluid, range limit, serial number, maximum process
working pressure (PS) and temperature (TS).
The Tag plate, instead, provides customer tag number and calibrated range.
Both certification and tag plates are supplied self-adhesive attached to the electronics housing, as standard. Option I2 allows to
select these plates as metal AISI 316 ss fastened to the electronics housing with rivets or screws
The instrument may be used as a pressure accessory (category III) as defined by the Pressure Equipment Directive 97/23/EC. In
this case, near the CE mark, you will find the number of the notified body (0474) that have verified the compliance. 266 pressure
transmitters are in compliance with EMC Directive 2004/108/CE.
4.2 Optional wired-on SST plate (I1)
The 266 transmitter can be supplied with the optional
“Wired-On Stainless Steel plate” (figure 4) which is permanently
laser printed with a custom text specified in phase of order. The
available space consists in 4 lines with 32 characters per line.
The plate will be connected to the transmitter with a Stainless
Steel wire.
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC
DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD
Figure 3: 4-line layout of the optional wired-on Stainless Steel plate
4.3 Handling
The instrument does not require any special precautions during
handling although normal good practice should be observed.
4.4 Storage
The instrument does not require any special treatment if stored
as dispatched and within the specified ambient conditions.
There is no limit to the storage period, although the terms of
guarantee remain as agreed with the Company and as given in
the order acknowledgement.
Model 266HSH Storage temperature limits
With LCD –40 and 85 °C (–40 and 185 °F)
