2600T Series Pressure transmitters | OI/266/LowP-EN Rev.A 11
5 Mounting
5.5 Mounting a P style pressure transmitter
The pressure transmitter can be mounted directly on the
manifold.
A mounting bracket for wall or pipe mounting (2” pipe) is also
available as an accessory.
Ideally, the pressure transmitter should be mounted in a
vertical position to prevent subsequent zero shifts.

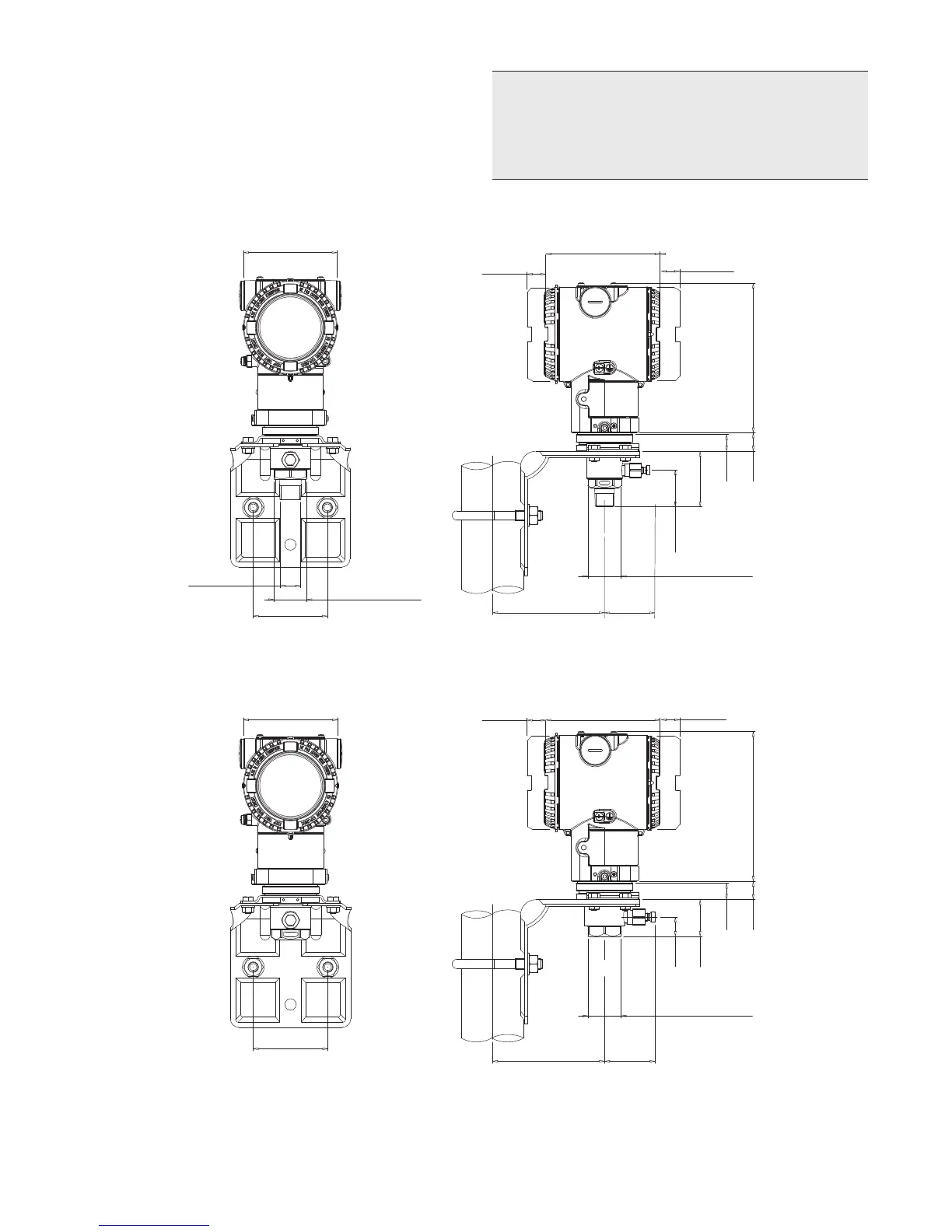

Figure 5 Model 266HSH with 1/2-14 NPT male process connection and barrel housing installed on a 2”pipe with optional bracket (B6
carbon steel or B7 Stainless Steel 316L) for sensor P, Q and S
Important. If the transmitter is installed inclined with respect to the
vertical, the filling liquid exerts hydrostatic pressure on the
measuring diaphragm, resulting in a zero shift. In such an event, the
zero point can be corrected via the “set PV to zero” command.
Please refer to the configuration section for further details. Vent /
Drain considerations below should also be taken into consideration.
91 (3.58)
72 (2.83)
1/2 - 14 NPT
32 (1.26) width across
flats of exagon
Figure 6: Model 266HSH with 1/2-14 NPT female process connection and barrel housing installed on a 2”pipe with optional bracket (B6
carbon steel or B7 Stainless Steel 316L) for sensor P, Q and S
18 (0.71)
113 (4.45)
18 (0.71)
145 (5.71)
18 (0.71)
16 (0.63)
108 (4.25)
49 (1.93)
39 (1.54)
32 (1.26) width across
flats of exagon
54 (2.13)
18 (0.71)
113 (4.45)
18 (0.71)
145 (5.71)
18 (0.71)
16 (0.63)
36 (1.42)
108 (4.25)
49 (1.93)
19 (0.75)
32 (1.26) width across
flats of exagon
