4.4.4 Transmitter
Pos: 56 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Bedienu ng/AudioVideo/Eins tellungen Änderungs menü/Einstellungen Sen der - 8215 @ 21\mod_133154925 7641_15.docx @ 202708 @ @ 1

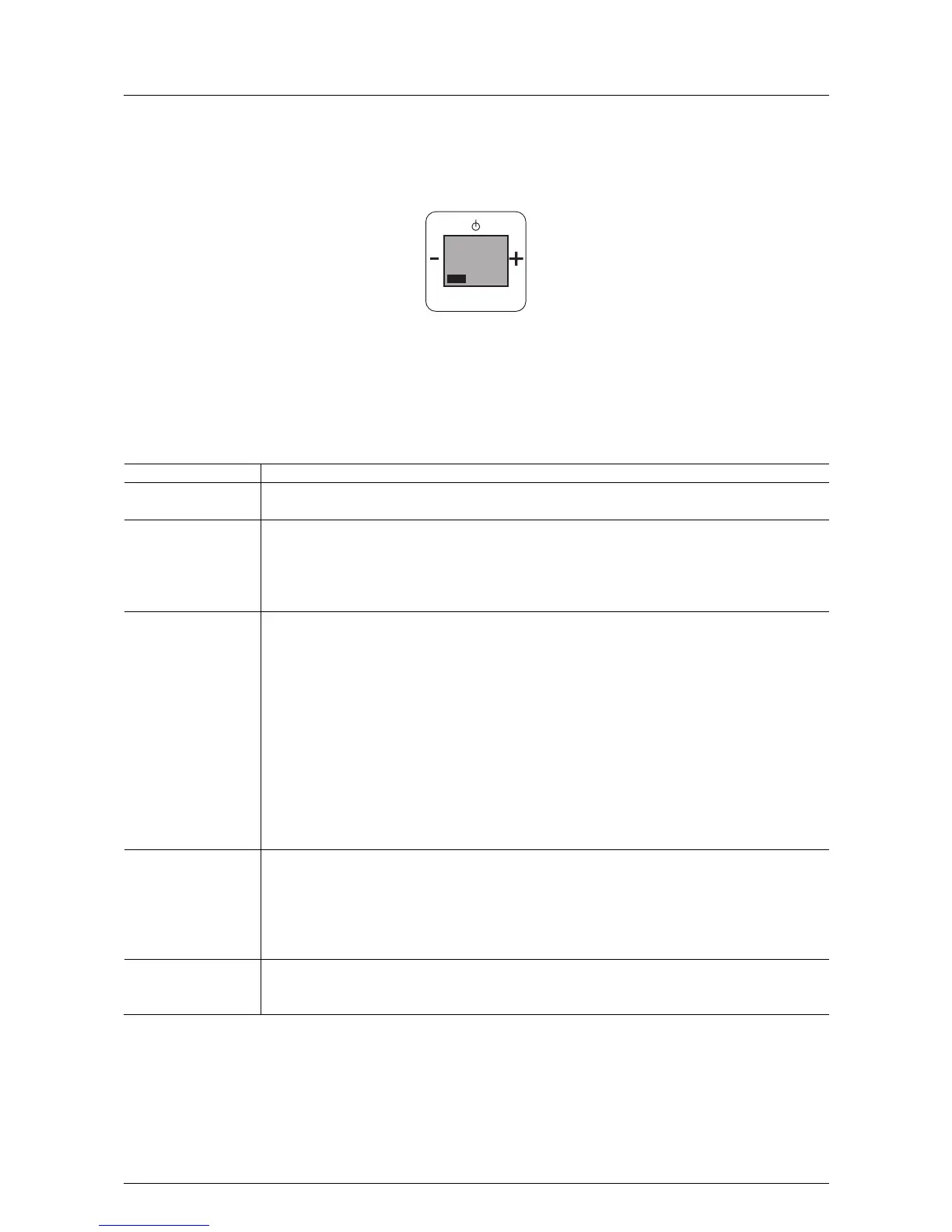

Fig. 13:
If this function is not relevant for you, you can change to the next menu item by pressing the "plus or minus"
button.
In step 4 "Station" the following functions become available:
No. Function
1 Transmitter
- When confirming with the Prog button you switch to menu item "Station".
2 Set the radio station
Select between the following options with the "plus / minus" buttons:
Save
- Delete
– Exit
3 Save
If you wish to search for and store a new radio frequency, confirm this menu item with the Prog button.
- Search for the suitable radio frequencies with the "plus or minus" buttons.
Tip: If you keep the "plus / minus" buttons pressed for approximately 5 seconds, the next most powerful
station will be displayed.
- Confirm the manual selection of the station with the Prog button.
- Search for a memory location (location 1-8) with the "plus or minus buttons.
- Confirm the memory location with the Prog button.
Repeat these steps until you have saved or overwritten all suitable stations.
- Confirm the display "Saved" with the Prog button.
- Select "Yes" with the "plus or minus" buttons for additional changes to the memory, or "No" to exit this
menu item.
4 Delete
If you wish to delete stations, confirm menu item "Delete" with the Prog button.
- Use the "plus / minus" buttons to select the station to be deleted.
- Confirm your selection with the Prog button.
- The selected station location is now deleted and can, if required, be occupied again as described in no.
3.
5 Exit
- If you wish to exit processing item "Station", confirm menu item "Exit" with the Prog button. You
simultaneously switch to the next processing step.
