ABB 8215 U-500 - Mounting and Wiring

Operating Instructions
Busch-AudioWorld
®
Installation and electrical
connection
Operating Instructions | 1473-1-7955 — 26 —
Pos: 80 /#Neustruktur#/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/M - O/Montage @ 18\mod_130261596045 8_15.docx @ 103424 @ 2 @ 1

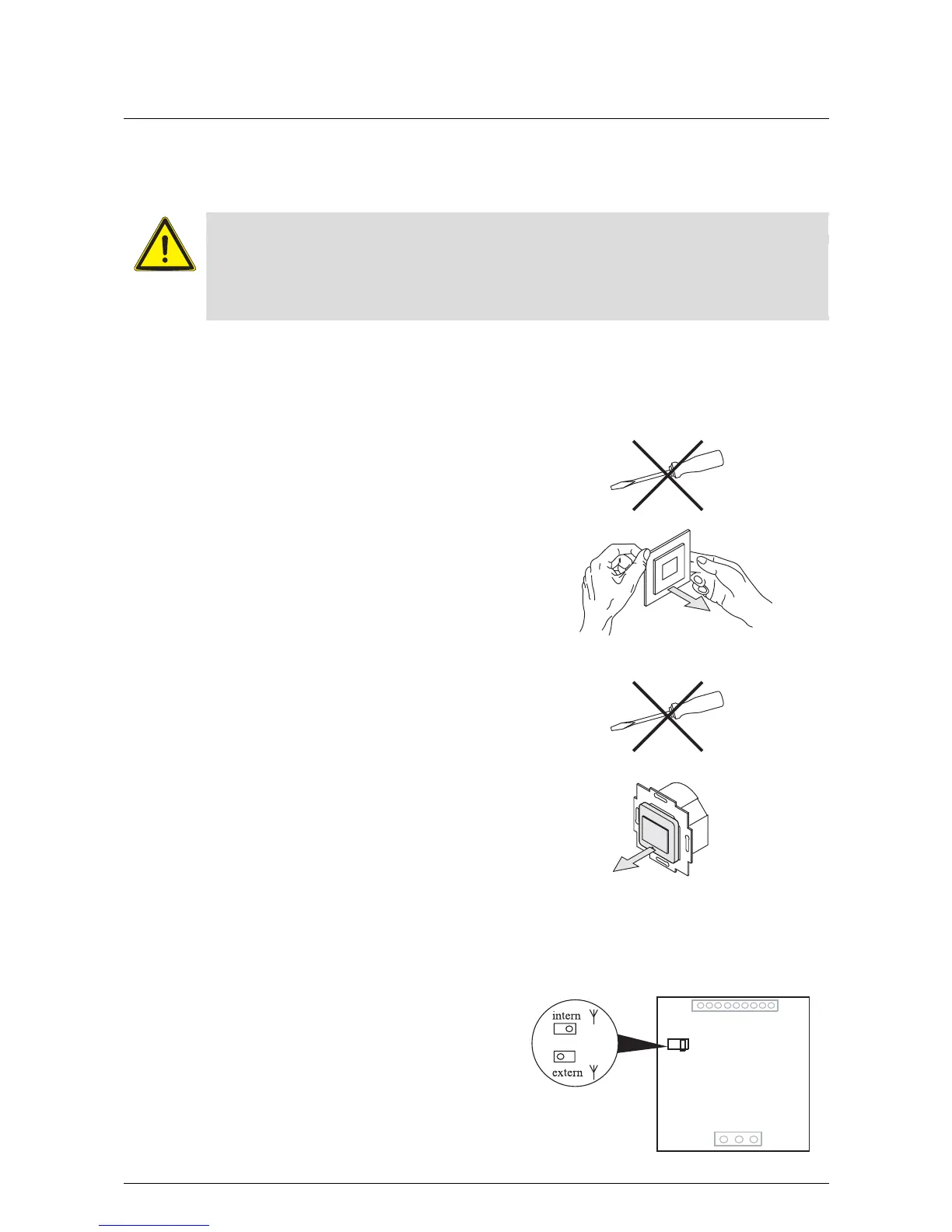

7.2 Mounting
Pos: 81 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Sic herheitshinweise und Hin weise (--> Für alle Dokumente <--)/Hinweise - Sachschäden/Achtung - Beschaedigung durc h harte Gegenstaende @ 24\mod _1339419856381_15.doc x @ 216486 @ @ 1
Pos: 79 /Busch-J aeger (Neustruktur)/Online- Dokumentation/ Sicherheitshinwei se und Hinweise (--> Für alle Dokumente <--)/Hinweise - Sachschäden/Achtung - Beschaedi gung durch harte Gegens taende @ 24\mod_133941985 6381_1.docx @ 216485 @ @ 1
Caution
The device can sustain damage when coming into contact with hard objects!
The plastic parts of the device are sensitive.
– Pull the attachment off only with your hands.
- Do not lever parts off with screwdrivers or similar hard objects.
Pos: 82 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Montage/ alle Geräte/Montag e - UP-Dosen - DIN 49073-1 oder geei gnetes Aufputzgehaeu se - Ohne Docvariable @ 25\m od_1340354979636_15.d ocx @ 219890 @ @ 1
The flush-mounted insert must only be installed in flush-mounted wall boxes according to DIN 49073-1, Part 1, or
suitable surface-mounted housings.
Pos: 83 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Montage/ alle Geräte/Montag e -- UP-Geraete mit Disp lay @ 24\mod_133941802850 6_15.docx @ 216473 @ @ 1
1. Pull the attachment off.
- If the device is already mounted or assembled, pull off the
attachment from the flush-mounted-insert with the aid
of the frame.
Fig. 18: Wall mounting: pulling off the attachment
– If the state of the device is at the point of delivery, pull
off the attachment from the flush-mounted-insert with
your hands.
– Pull the attachment off only with your hands!
Do not lever parts off with screwdrivers or similar hard
objects. This damages the device.
– When pulling off, first the resistance of the spring
clamps must be overcome.
Fig. 19: State of the device at the point of delivery:
pulling off the attachment
In addition to the integrated antenna, an external antenna can be connected to the corresponding connector.
2. For the selection of the antenna set the switch on the rear
of the device on "Internal" or "External".
- Connecting lamps or electronic transformers to the
same phase can cause interference to reception. In
this case, always use an external antenna.
