Operation Manual / 4 Product description / A130-M.. - A145-M..

8 Dismantling and fitting / 8.21 Installing the gas outlet casing

8.21 Installing the gas outlet casing

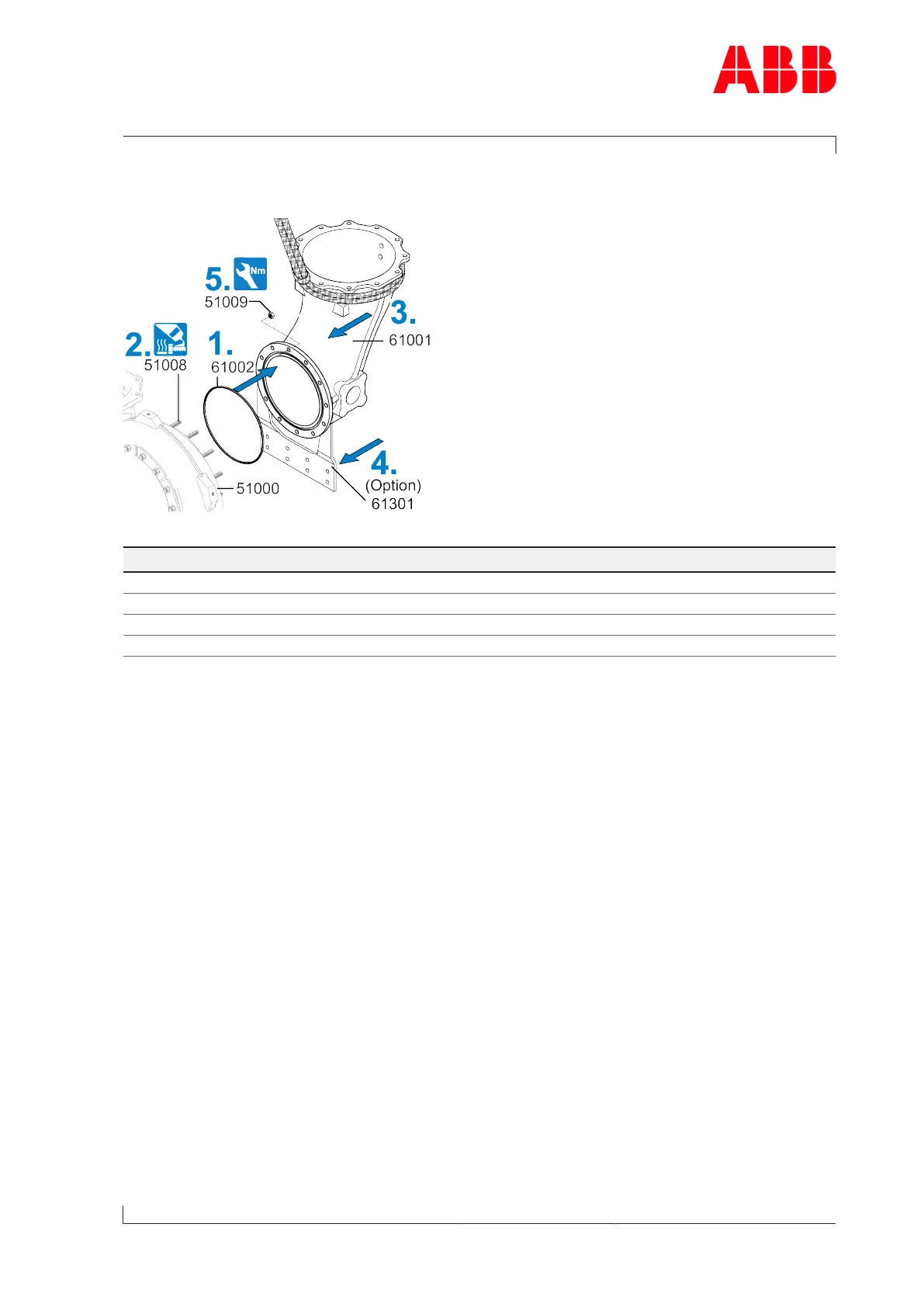

Fig.58: Installing the gas outlet casing

Product Size Tightening torque [Nm]

A130 M8 20

A135 M10 40

A140 M12 65

A145 M12 65

Table44: Tightening torque (51009)

1. Insert a new gasket(61002) into the gas outlet casing(61001).

2. Coat the threads of the studs(51008) with high-temperature grease.

3. Attach the lifting gear to the gas outlet casing(61001) and position the gas outlet casing

in the correct position on the turbine casing(51000).

4. If present: Fit support(61301).

5. Fit hexagon nuts(51009). Observe the tightening torque.

Page 95 / 114
