Operation Manual / 4 Product description / A130-M.. - A145-M..
12 Spare parts / 12.3 View of turbocharger with part numbers
© Copyright 2020 ABB. All rights reserved.
HZTL4031_EN
Rev.L
July 2020
12.3

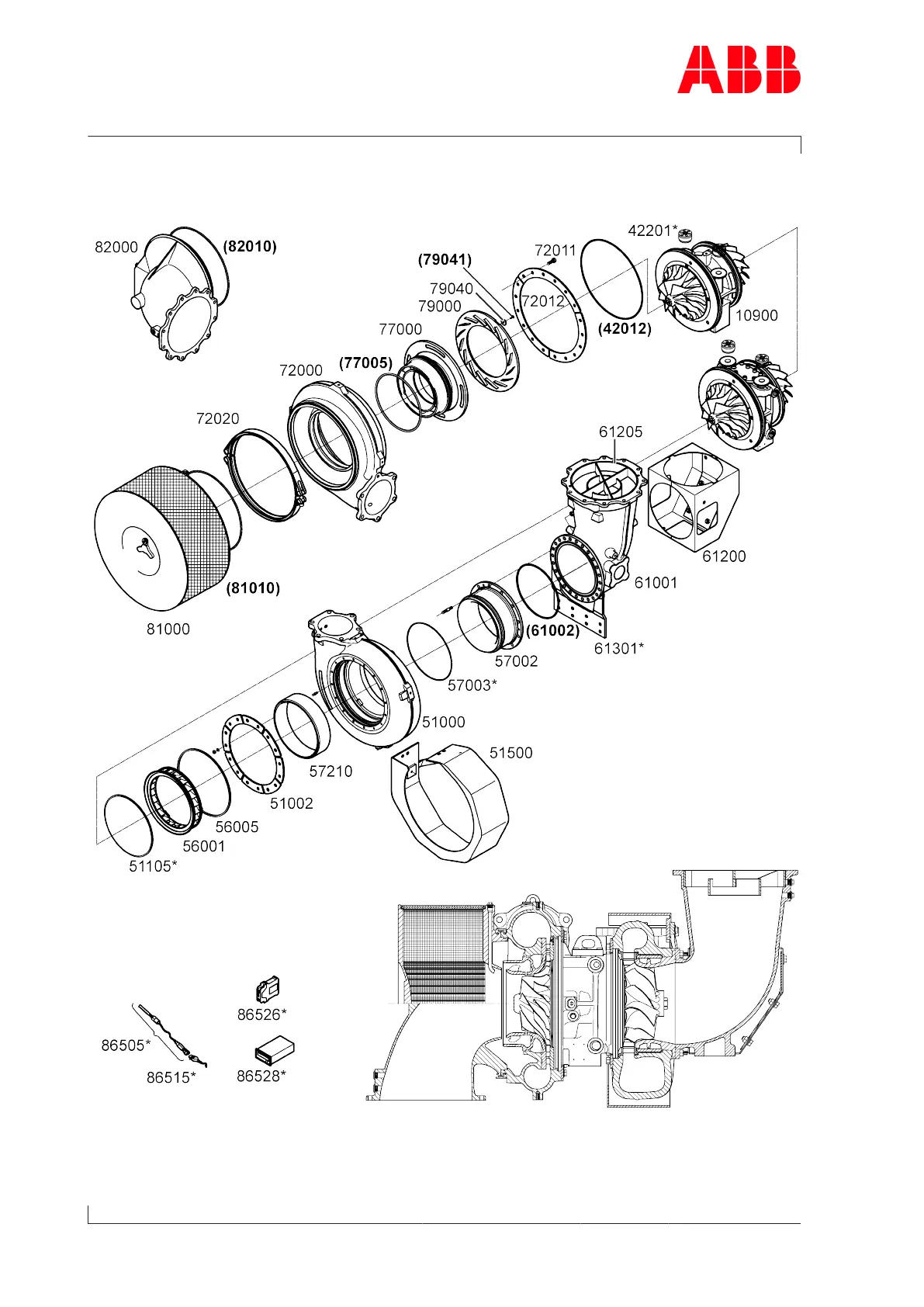

View of turbocharger with part numbers
Fig.64: Overview of part numbers
(……)
only available in customer spare part set (97070).
Page 108 / 114
