Operation Manual / 4 Product description / A130-M.. - A145-M..

2 Removing and Installing / 2.1 Turbocharger weight and transporta-

tion

2 Removing and Installing

2.1 Turbocharger weight and transportation

Lifting gear with a sufficient load limit must be used for transporting the turbocharger. The

weight specified below applies to the heaviest variant possible. Depending on the specifica-

tion, the weight specified on the rating plate may be lower than the standard value specified

here.

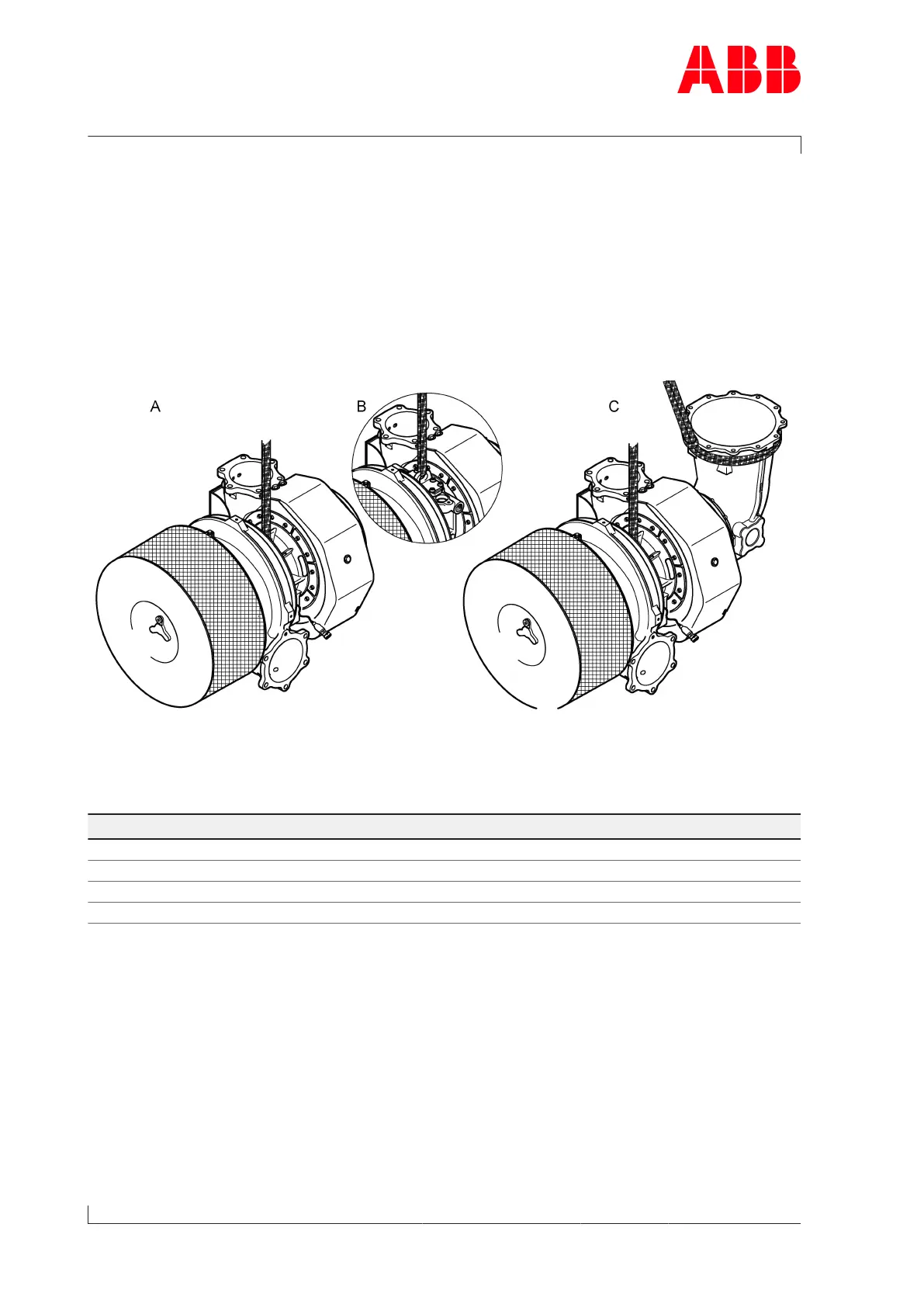

Fig.5: Suspension of complete turbocharger unit

A Turbocharger with oil-cooled bearing casing

B Turbocharger with water-cooled bearing casing

C Complete turbocharger unit with gas outlet casing

Product Weight of complete turbocharger unit [kg]

A130-M 210

A135-M 300

A140-M 500

A145-M 850

Table2: Weight of complete turbocharger unit

Page 8 / 114
