4.3.2 Settings for different operating conditions
IED settings can be designed for various operation conditions by defining different
setting values to different setting groups. The active setting group can be changed
by the IED application or manually via the WHMI or PCM600.
4.3.3 Activating programmable virtual LEDs
1. Select IED Configuration> Configuration> Programmable LEDs.
2. Select General to set the alarm color for the programmable LEDs.
3. Enable parameter editing by selecting Enable edit.

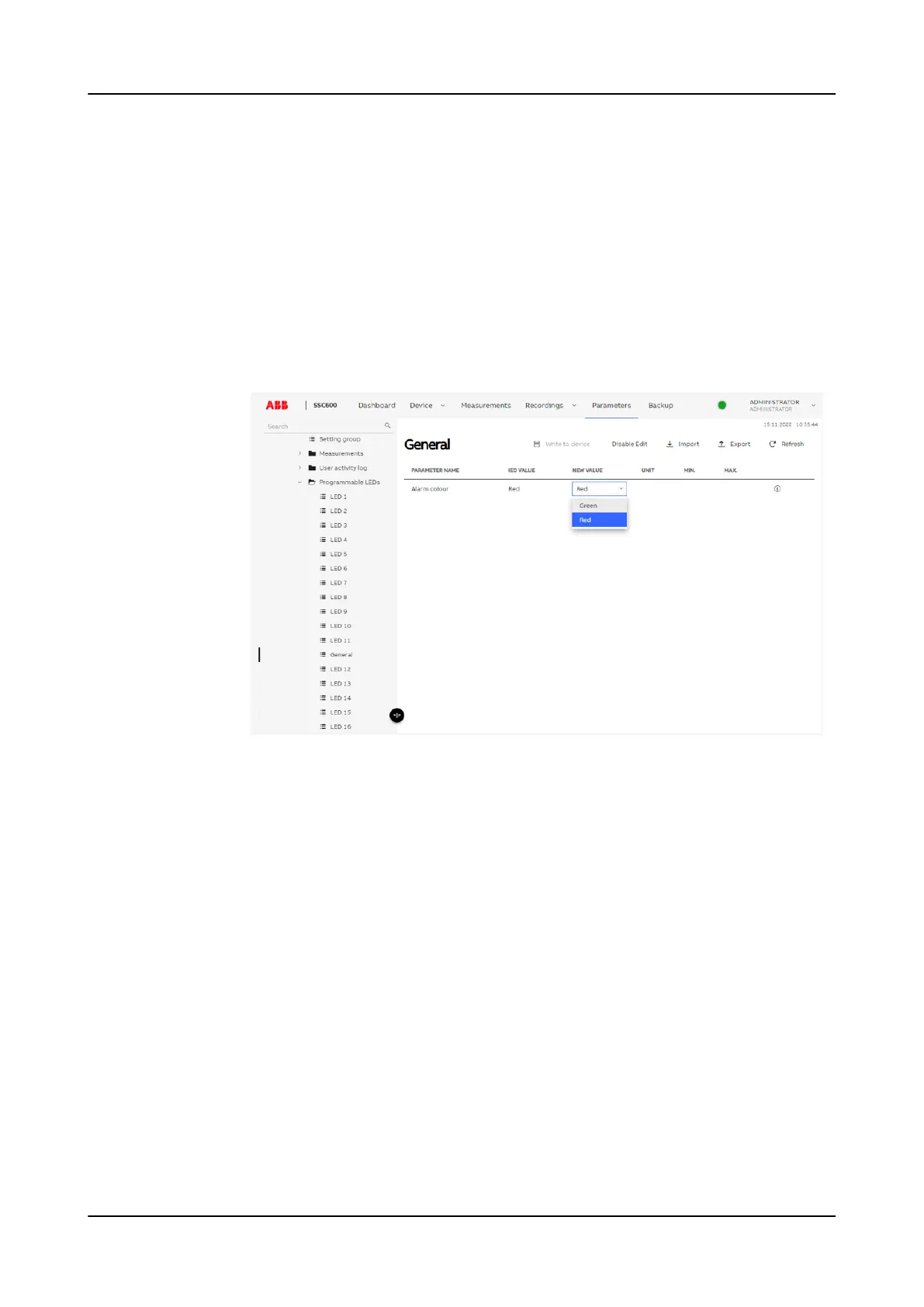

Figure 31: Enabling parameter editing
4. Select Write to device to save changes into the IED's memory.
5. Select LED 1 ... LED 100 to define the alarm mode and description for each
programmable LED.
6. Enable parameter editing by selecting Enable edit.
