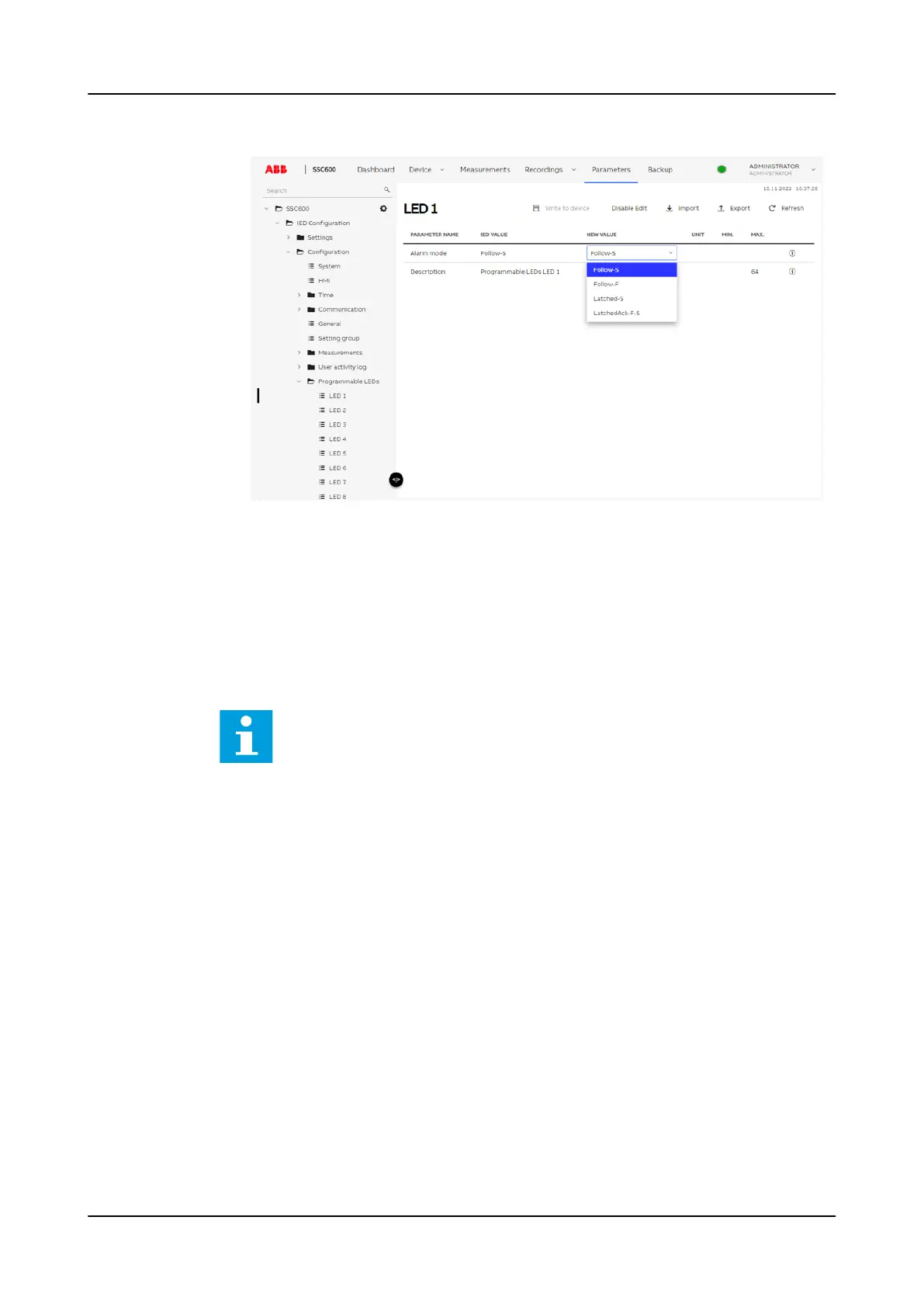

Figure 32: Alarm modes
The available alarm modes are:
- Follow-S
- Follow-F
- Latched-S
- LatchedAck-F-S.
7. Select Write to device to save changes into the IED's memory.
See the Technical manual for details on LED configuration.
4.4 Monitoring
4.4.1 Indications
The operation of the IED can be monitored via three different indications:
1. Four indicator LEDs with fixed functionality: Ready, Start, Trip and Alarm
2. Programmable virtual LEDs on the WHMI
3. Information on the Events view.
4.4.2 Recorded data
The IED is provided with intelligent and flexible functionality that collects different
kinds of data. The recorded data gives substantial information for post fault
analysis.
