ABB ACH580 - Troubleshooting and Maintenance; Internal Connections

USER’S MANUAL
21/26
Use only spare parts approved by ABB.
Any failures of the Safe torque off function must be reported to ABB.
Troubleshooting and maintenance

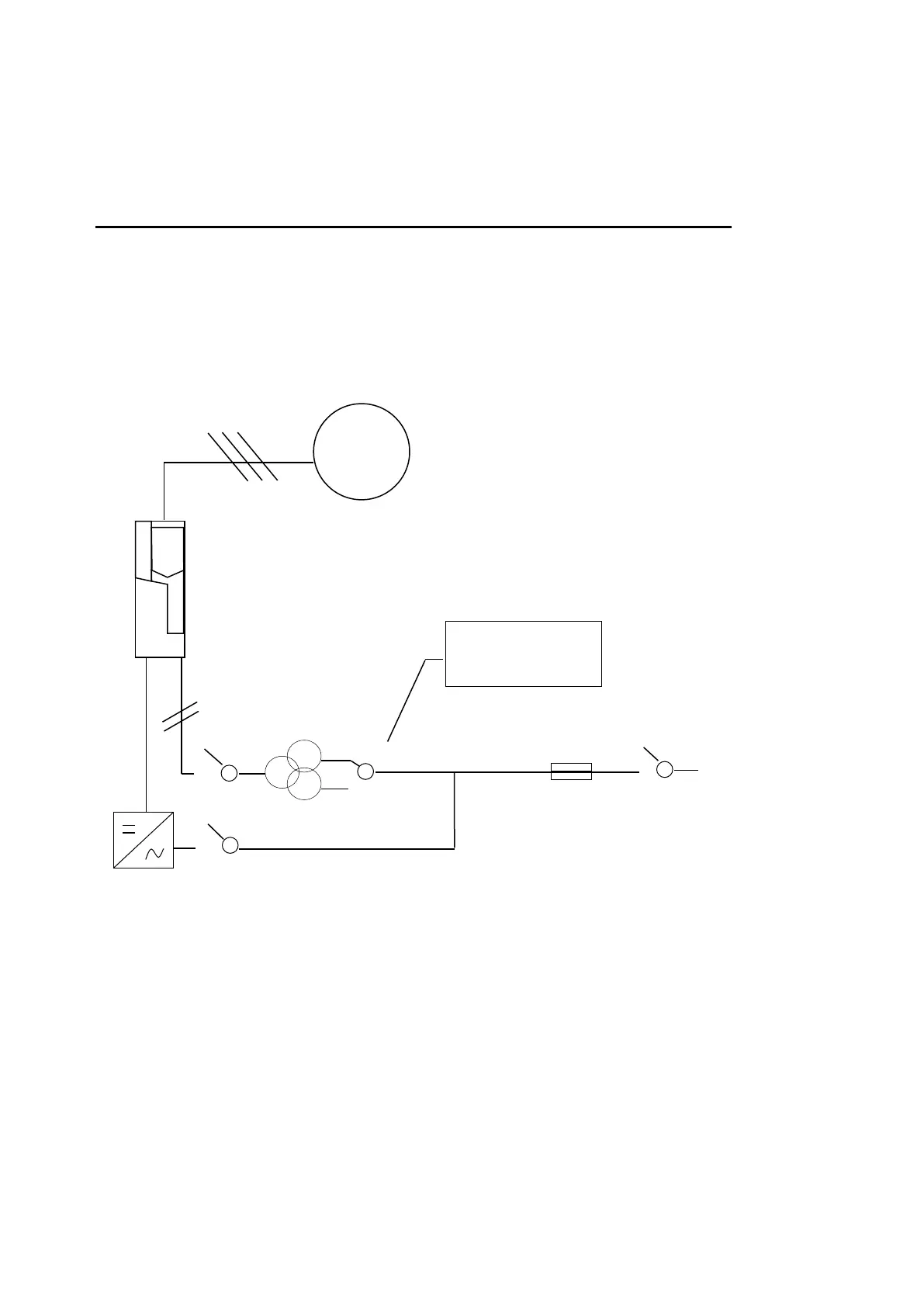

Internal connections
M
M2VA 63 B 4
motor
ACH580-01
drive
24VDC out
Drive main
Supply switch
400VAC
24VDC in switch
115VAC
230VAC
Main switch
Input voltage switch
(115VAC/230VAC)
