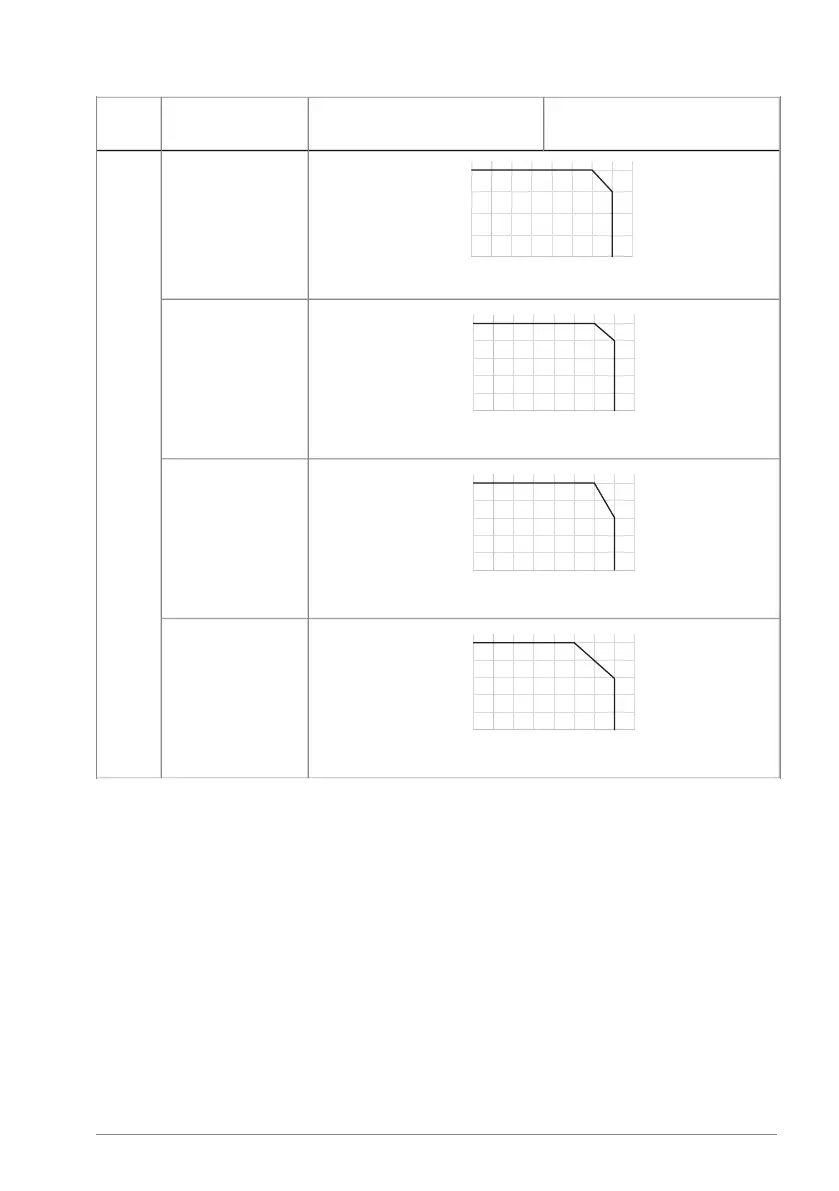

ABB ACS180-04S-03A7-1 - Page 105

Installation with 50mm space
between
Install side-by-side
RatingFrame
0%
25%
50%
75%
100%
Derating factor
-10 0 10 20 30 40 50 60 70
Ambient temperature
(°C)
(°F)
1581401221048668503214
Derating factor for
I
Hd
R1
0%
20%
40%
60%
80%
100%
Derating factor
-10 0 10 20 30 40 50 60 70
Ambient temperature
(°C)
(°F)
1581401221048668503214
Derating factor for
I
n
and I
Ld
on
ACS180-...-1
0%
20%
40%
60%
80%
100%
Derating factor
-10 0 10 20 30 40 50 60 70
Ambient temperature
(°C)
(°F)
1581401221048668503214
Derating factor for
I
n
and I
Ld
on
ACS180-...-2
0%
20%
40%
60%
80%
100%
Derating factor
-10 0 10 20 30 40 50 60 70
Ambient temperature
(°C)
(°F)
1581401221048668503214
Derating factor for
I
n
and I
Ld
on
ACS180-...-4
Technical data 105
