ABB Advant Controller 80 User Manual

4-18 AC 80 User’s Manual

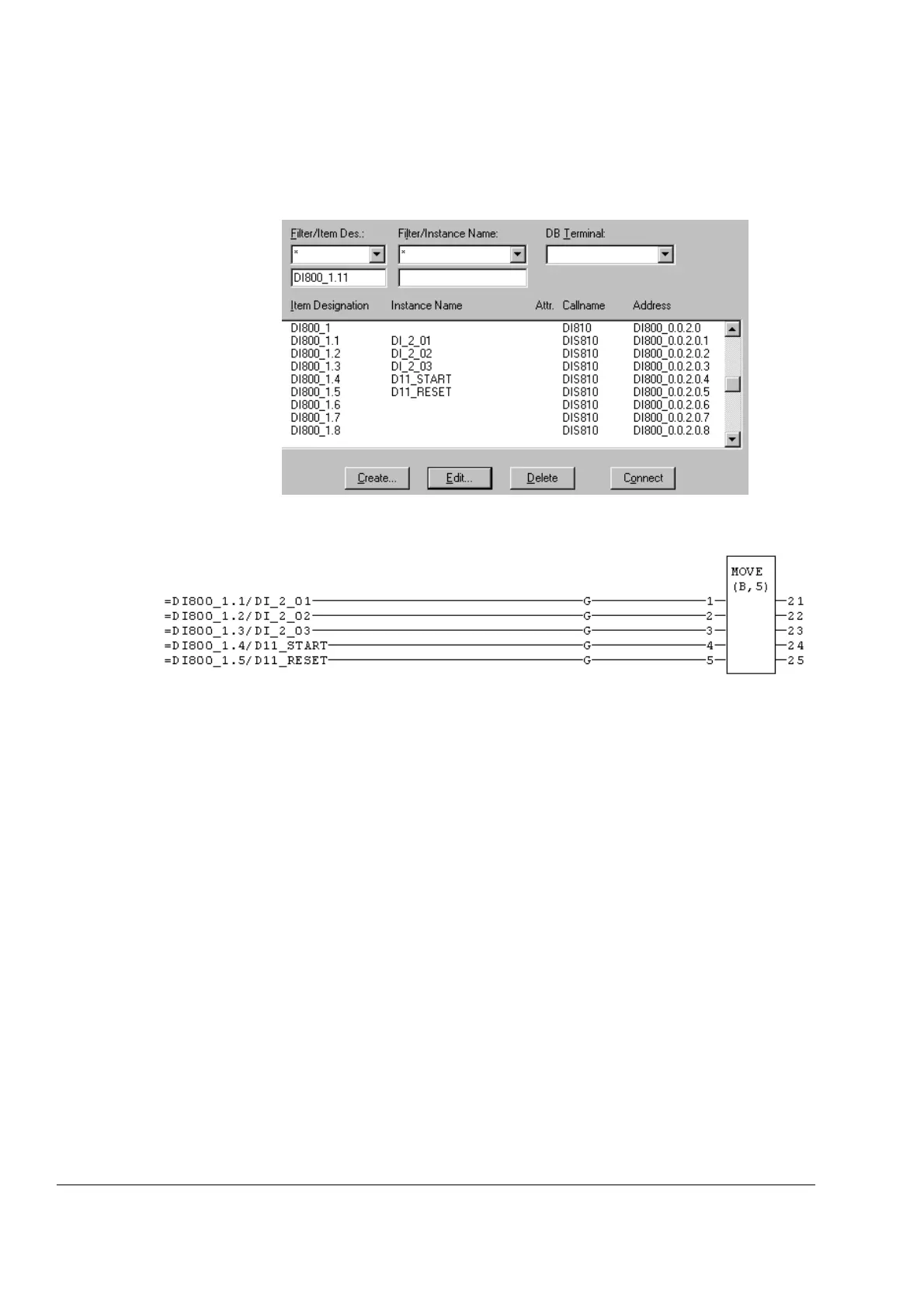

In the figure below, five terminals have been named and connected to a
MOVE element in the PC section.
Figure 4-14 Connection of the subordinate elements of an
S800 I/O module element to the PC section of the application program.
DB section
PC section
