ControlMaster CM15 and CMF160
Universal process indicator
1
/8 DIN 3 Display, Icons and Keys
8 IM/CM/I–EN Rev. P
3.2 CMF160 Indicator
An example of an Operator Page is shown in Fig. 3.2.

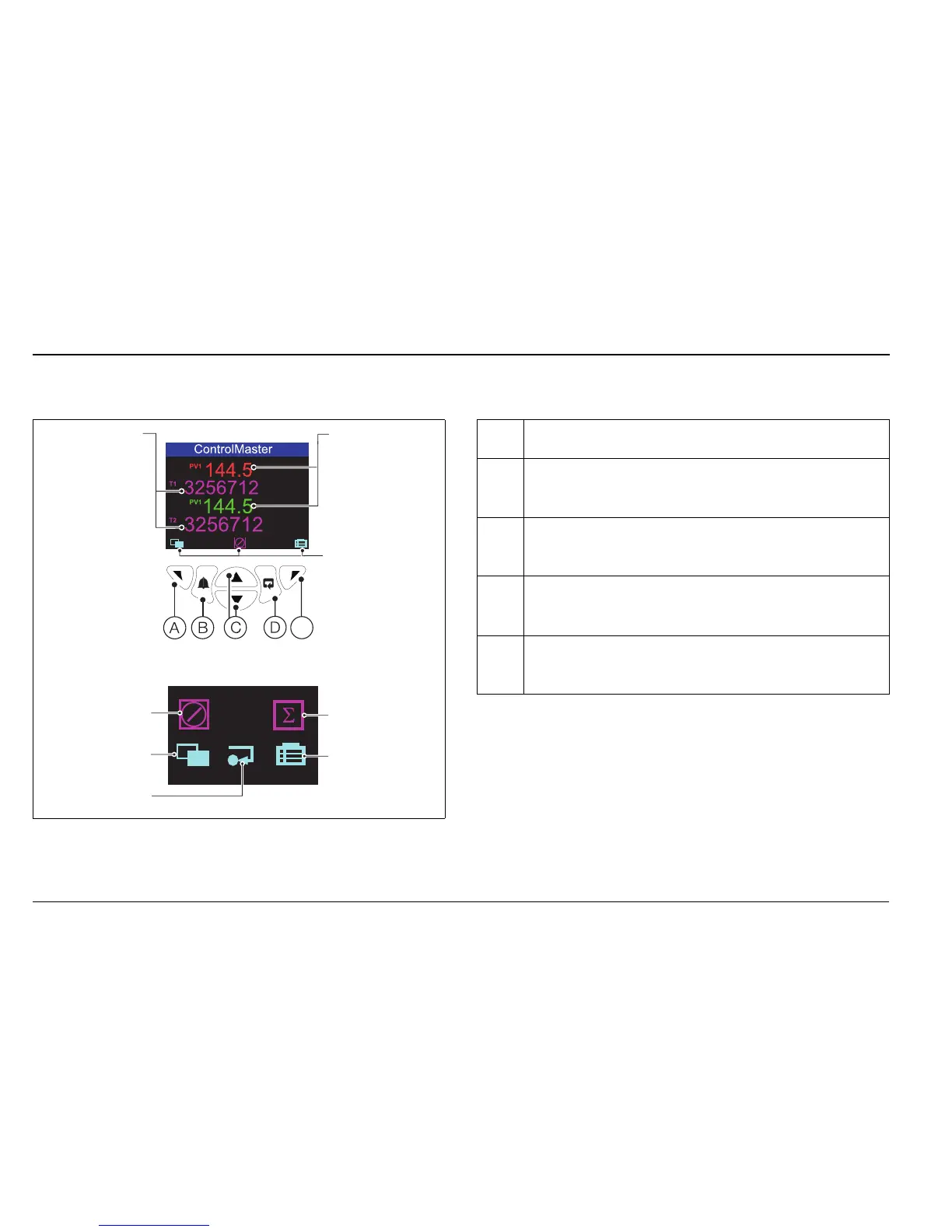

Fig. 3.2 ControlMaster CMF160 Operator Page and Keys
A Navigation key – left and Operator Level access key
B
Alarm acknowledge key – acknowledges any active
and unacknowledged alarms
C
Up / Down keys – navigate up / down menus and
increase / decrease displayed values
D
Scroll key – scrolls through each available operator
view
E
Navigation key (right) / programmable Soft Key –
see page 39
Table 3.2 CMF160 Front Panel Key Functions
