4 Installation
4.1 Siting

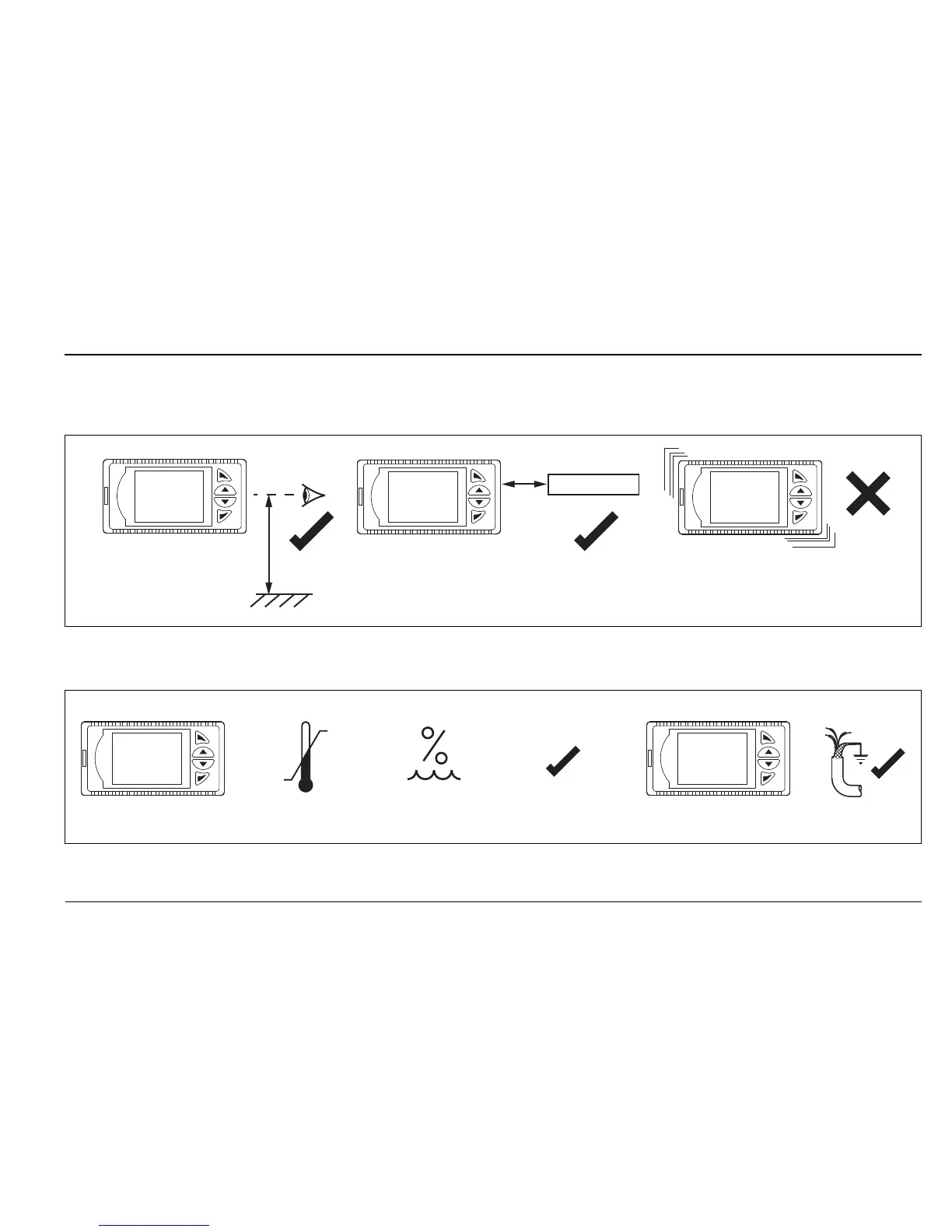

Fig. 4.1 Siting (applicable to both CM15 and CMF160 – CM15 shown for example only)
Fig. 4.2 Environmental Requirements (applicable to both CM15 and CMF160 – CM15 shown for example only)
At Eye Level Close to the Sensor Avoid Vibration
Sensor
+
Temperature Limits
55 °C
(131 °F)
Max.
0 °C
(32 °F)
Min.
Humidity Limits
0 to 95% RH
IP66 / NEMA4X (front panel) IP20 (rear)
Use Screened Cable
