ABB ControlMaster CMF160 User Manual

ControlMaster CM15 and CMF160
Universal process indicator
1
/8 DIN 3 Display, Icons and Keys
IM/CM/I–EN Rev. P 7
3 Display, Icons and Keys
3.1 CM15 Indicator
An example of an Operator Page is shown in Fig. 3.1.

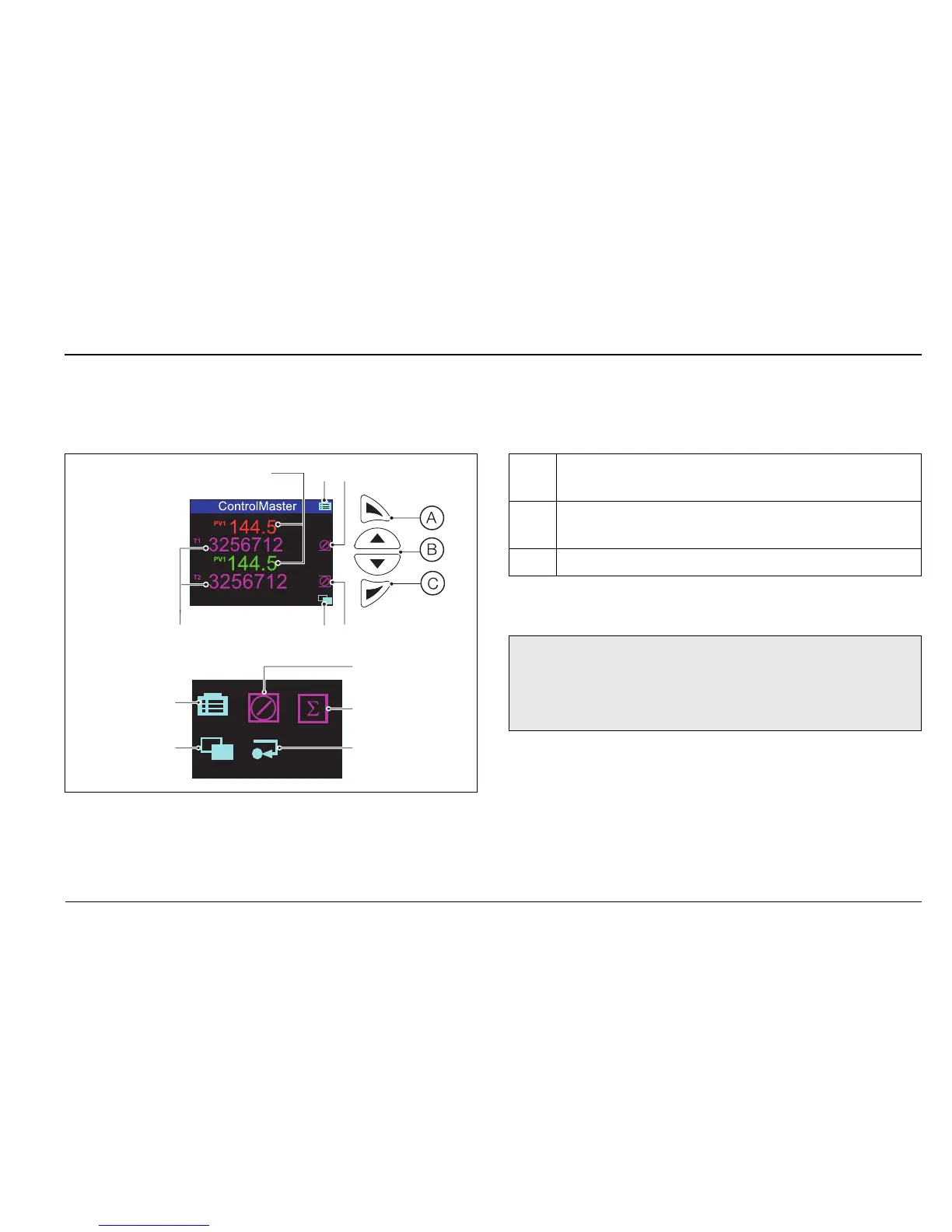

Fig. 3.1 ControlMaster CM15 Operator Page and Keys
PV Values
Icons
Access
Level
Operator
Menus
Icons
Icons
Totalizer
Running
Totalizer Values
Totalizer
Stopped
Enter
A
Navigation key (upper) / programmable Soft Key –
see page 39.
B
Up / Down keys – navigate up / down menu items
and increase / decrease displayed values
C Navigation key (lower) / Operator Level access key.
Table 3.1 CM15 Front Panel Key Functions
Note. When a Soft Key option is assigned to the (upper)
navigation key
A, the Advanced Level (see page 34) must
be accessed using the (lower) Operator Level access
key
C.
