Installation and commissioning guide
1ZSC000563-AAF EN, REV. 4, 2021-06-23

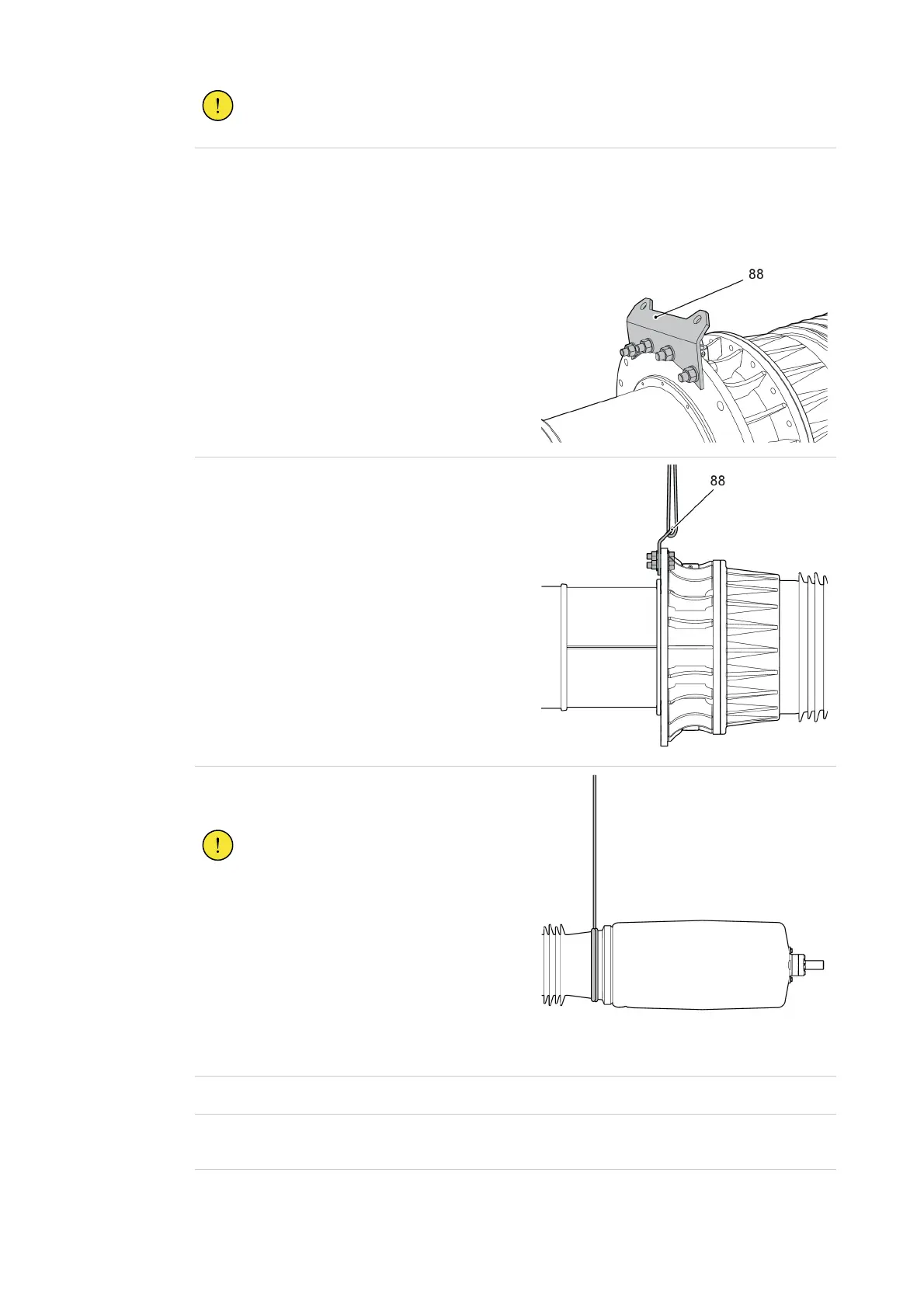

3. Remove the support blocks from the transport box and put them on the ground.
CAUTION!
Make sure that the ground is flat.
4.
Install the lifting tool (88) on the flange.
G007208
5.
Attach a soft lifting sling to the lifting tool (88) on
the lower part of the flange and then to the crane
hook.
G006950
6.
Attach a soft lifting sling to the top part of the
porcelain insulator.
CAUTION!
Attach the soft lifting sling as close to
the top housing as possible, or damage
will occur.
G006951
7.
Carefully lift the bushing.
8.
Make sure that the support blocks are in the same positions as the support blocks in the
transport box.
