ABB HT611036 Instruction Manual

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
9 Dismantling and fitting with removed air inlet and gas outlet / 9.1
Removing air inlets
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
9 Dismantling and fitting with removed
air inlet and gas outlet
9.1 Removing air inlets

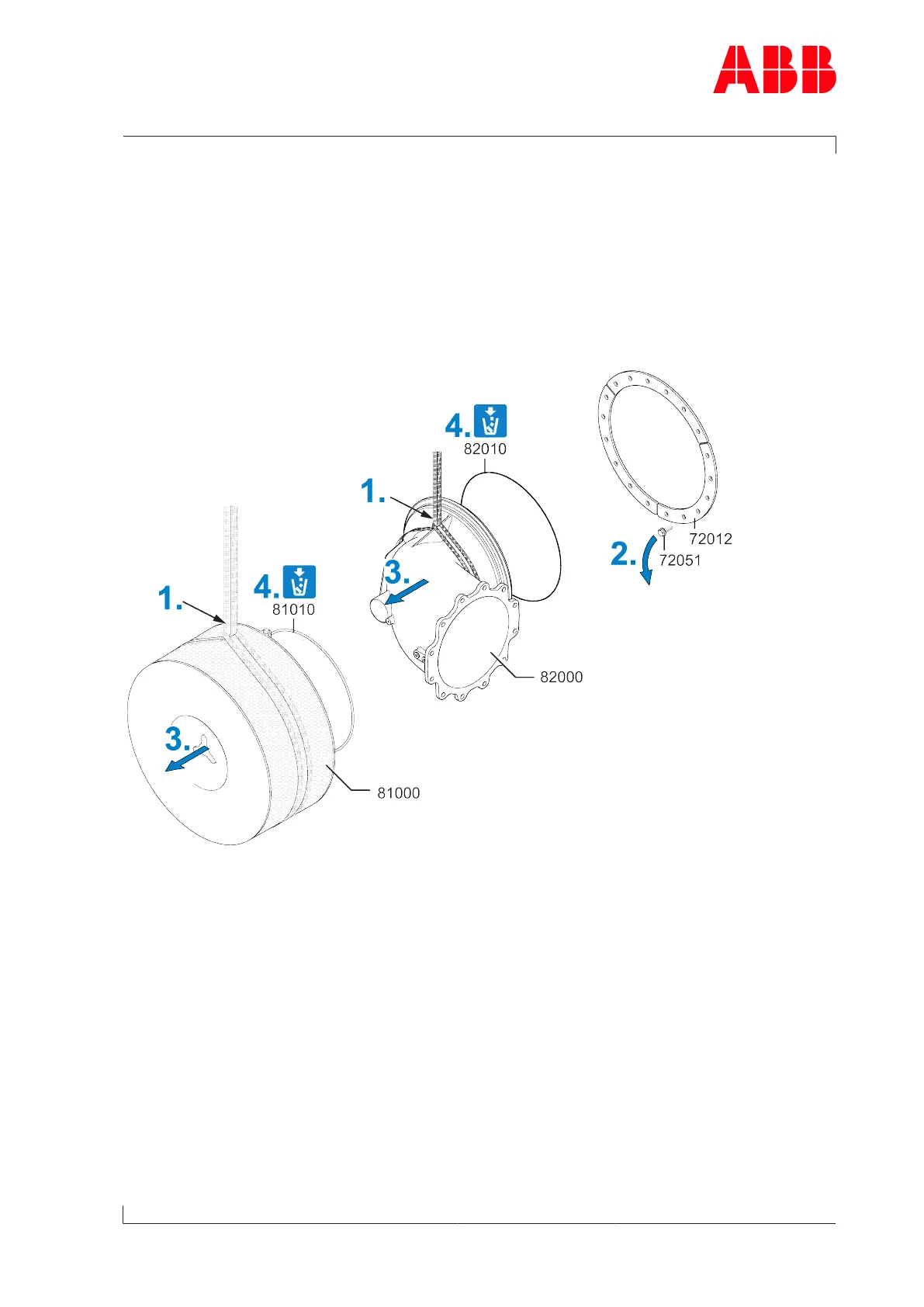

Fig.40: Removing the air inlets
1. Attach lifting gear to the filter silencer (81000) or air suction branch (82000).
2. Loosen the hexagon-head screws(72051) and remove them with fastening strips(72012).
3. Remove the filter silencer(81000) or air suction branch(82000).
4. Remove and dispose of the O-ring(81010 or 82010).
Page 77 / 171
