Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
4 Monitoring operation / 4.3 Turbocharger speed
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
4.3 Turbocharger speed
4.3.1 Introduction
A speed measuring system enables the constant monitoring of the turbocharger speed.
CAUTION
Do not strain cables
If you pull the speed measurement cables too hard, contacts can be pulled
out.
u Do not strain the speed measurement cables by pulling.
4.3.2 Layout and overview

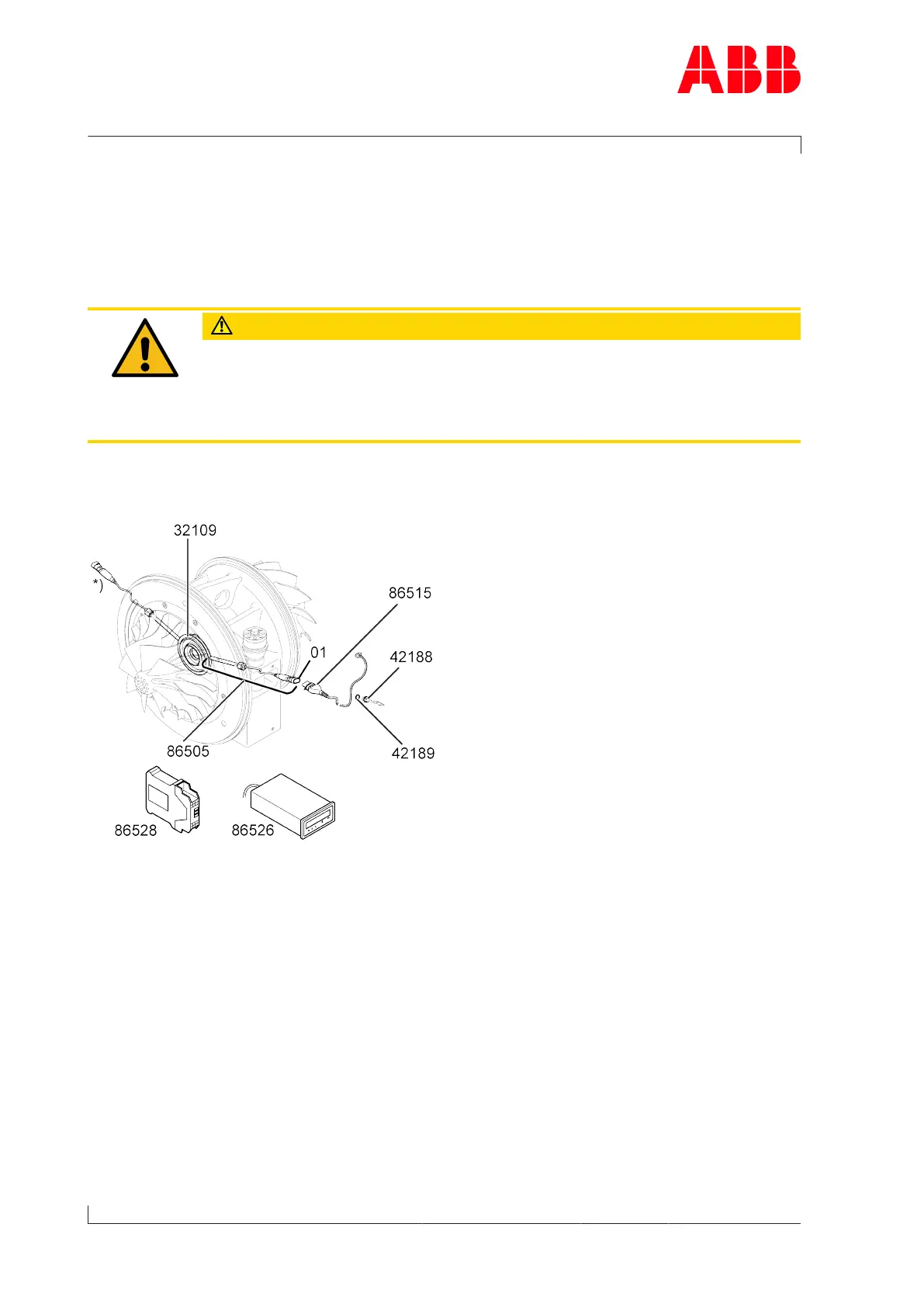

Fig.19: Layout and overview of speed measurement system
86505 Speed sensor 42188 Screw plug
86515 Cable connector 42189 Gasket
86526 F/I converter 01 Plug with integrated voltage limiter
86528 Tachometer *) Alternative mounting position for speed
sensor
32109 Sealing disc with cams
