Operation Manual / 4 Product description / A150-M56/66/57/67 -

A155-M..

10 Dismantling and fitting, cartridge concept / 10.12 Installing air in-

lets

10.12 Installing air inlets

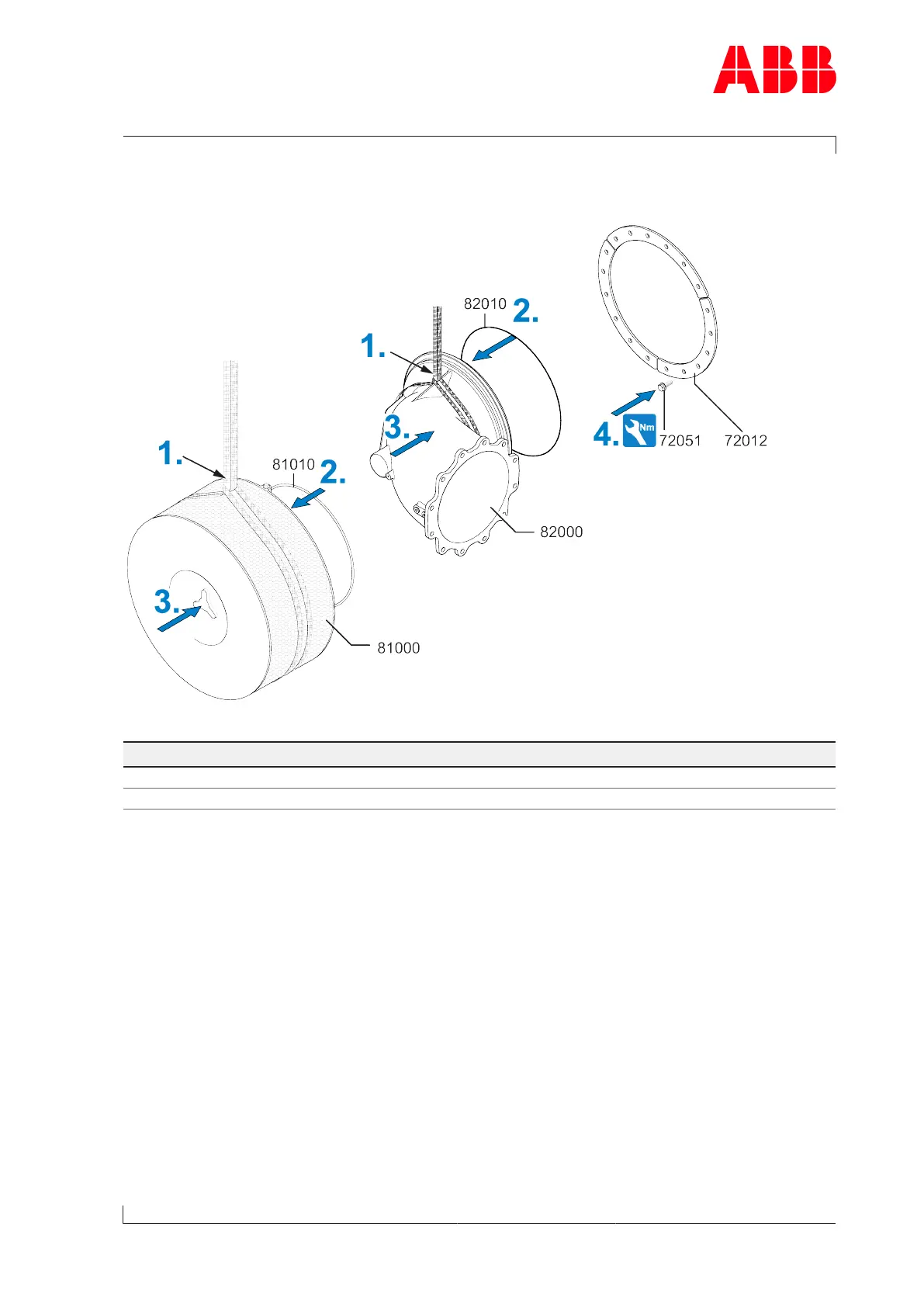

Fig.97: Installing the air inlets

Product Size Tightening torque [Nm]

A150 M16 275

A155 M18 370

Table62: Tightening torque (72051)

1. Attach lifting gear to the filter silencer(81000) or air suction branch(82000).

2. Fit a new O-ring(81010) to the filter silencer(81000) or a new O-ring(82010) to the air

suction branch(82000).

3. Install the filter silencer(81000) or air suction branch(82000).

4. Fit the fastening strips(72012) with hexagon-head screws(72051). Observe the tighten-

ing torque.
