Operation Manual / 4 Product description / A150-M56/66/57/67 -

A155-M..

9 Dismantling and fitting with removed air inlet and gas outlet / 9.19

Installing the gas outlet casing

Variant with support

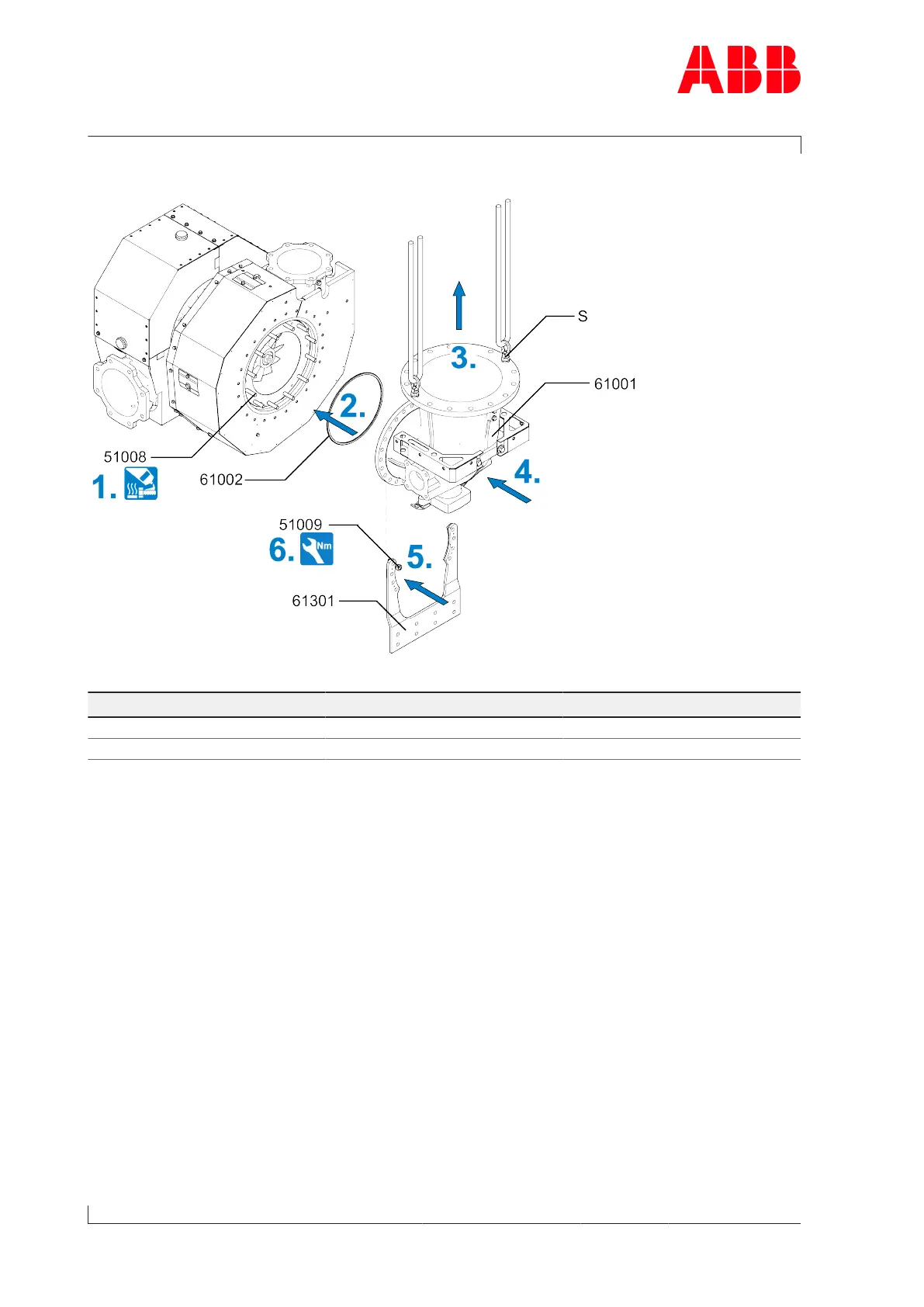

Fig.73: Installing gas outlet casing with support 1

Product Size Tightening torque [Nm]

A150 M16 200

A155 M16 200

Table51: Tightening torque (51009)

1. Coat thread of bolts(51008) with high-temperature grease.

2. Insert a new gasket(61002) into the gas outlet casing(61001).

3. Fit swivel lifting eyes(S) to gas outlet casing(61001). Secure lifting gear to the swivel lift-

ing eye.

4. Place gas outlet casing on the turbine casing(51000). Observe the marking.

5. Fit support(61301).

6. Fit hexagon nuts(51009). Observe the tightening torque.

Page 108 / 171
