14 Taking out of operation at short notice / 14.5 Cover plate drawing
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
14.5 Cover plate drawing
The cover plate is not included in the ABB scope of delivery and must be manufactured by
the operating company according to the following drawing.
Material: General structural steel, in accordance with DINEN10025-2.

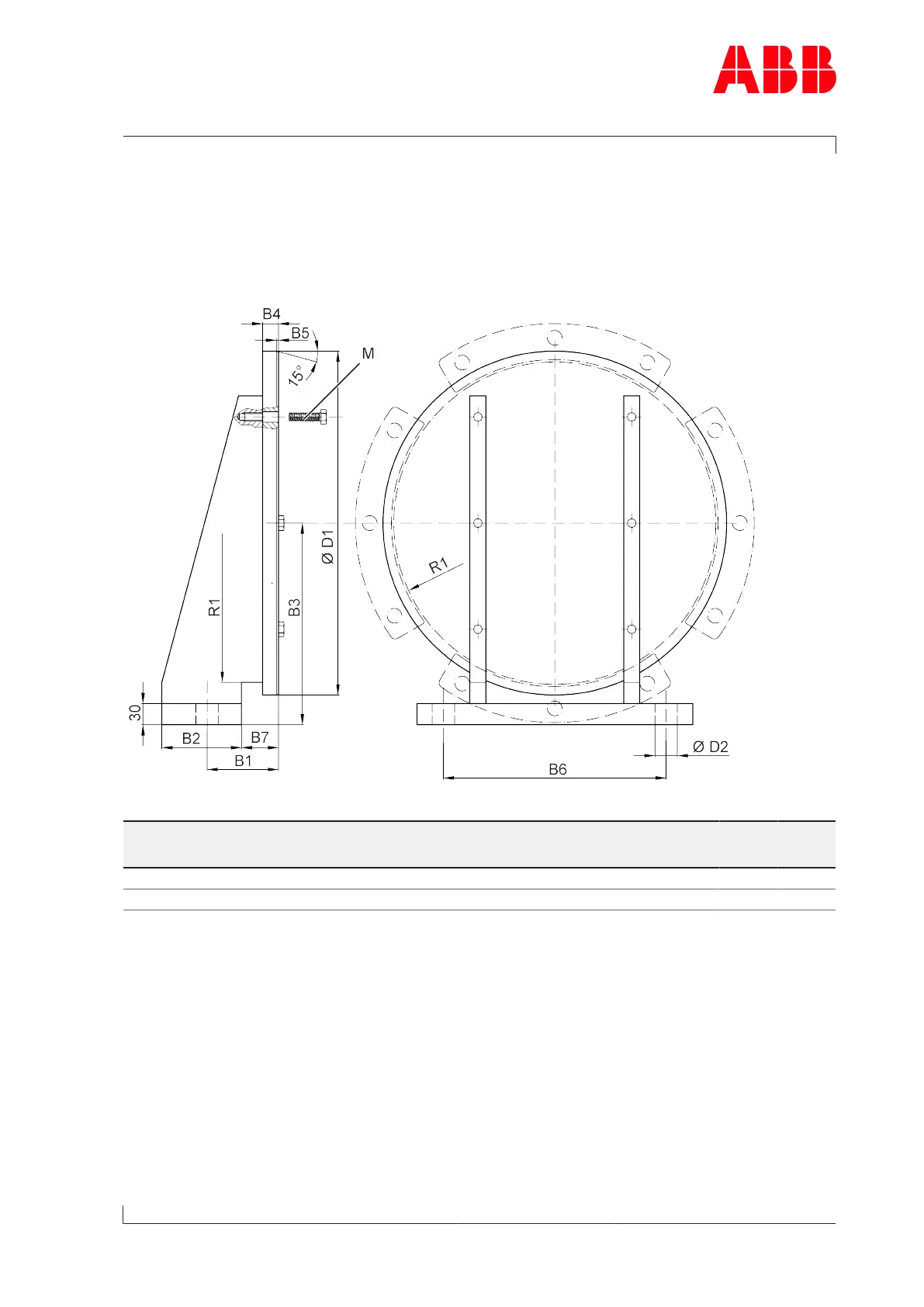

Fig.123: Cover plate drawing
Product B1
± 0.5
B2 B3 B4
± 0.2
B5 B6
± 0.1
B7 ØD1
± 0.2
ØD2 R1 M
A150 138.9 135 240 21.4 2.0 320 71.4 413.6 33 ≤196 M12
A155 164.6 160 286.5 25.5 2.0 385 84.6 492 39 ≤232 M16
Table73: Cover plate dimensions [mm]
