Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
9 Dismantling and fitting with removed air inlet and gas outlet / 9.4
Removing the cartridge group with compressor and turbine casing
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
9.4 Removing the cartridge group with compressor
and turbine casing

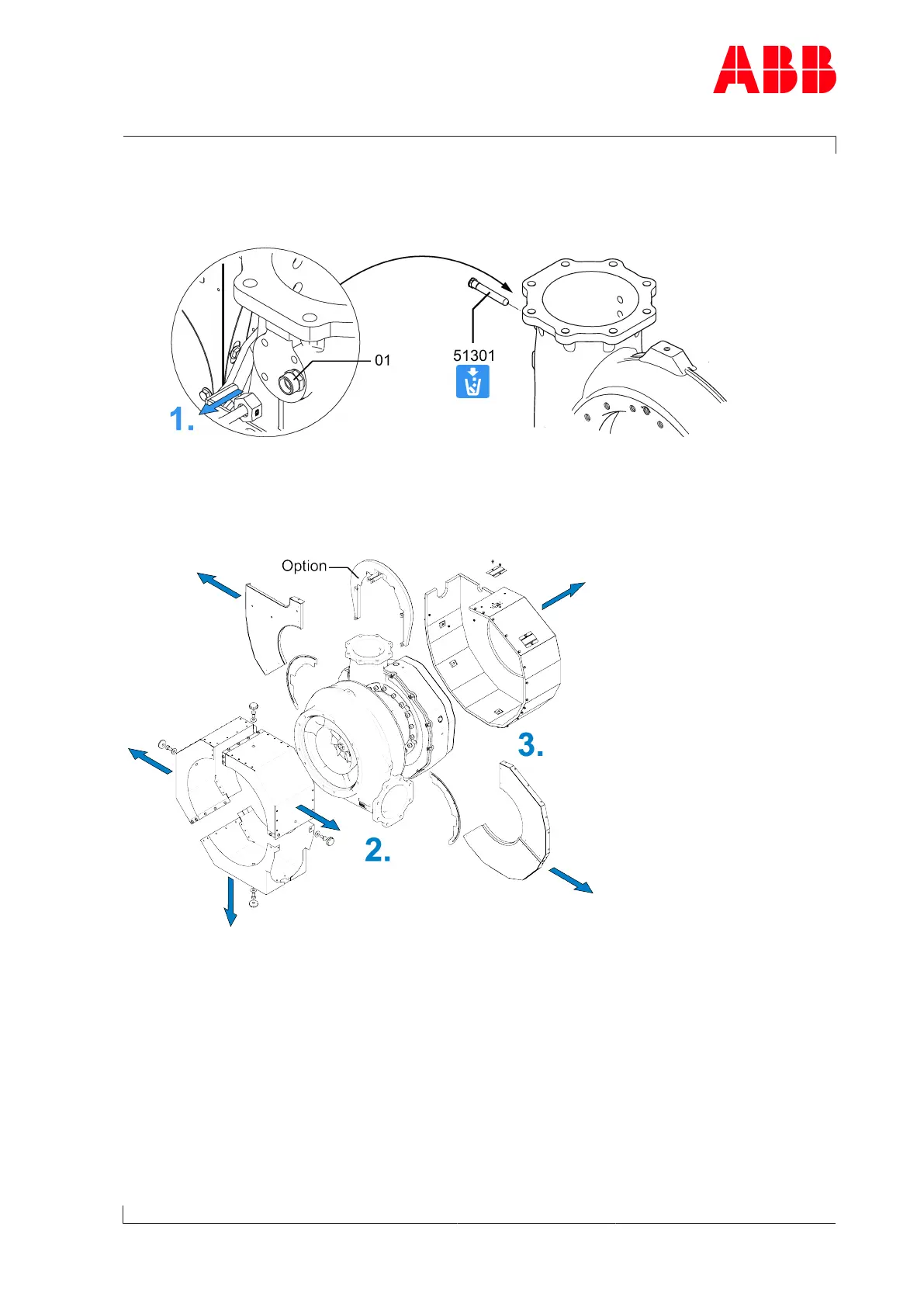

Fig.47: Turbine cleaning nozzle
1. If present: Loosen the turbine cleaning connection.
The cleaning nozzle (51301) must be replaced after each removal procedure. If the clean-
ing nozzle is not to be replaced, the screw connection (01) must not be loosened during
disassembly.
Fig.48: Remove insulation
2. Remove the compressor casing insulation.
3. Remove the turbine casing insulation.
Page 85 / 171
