Operation Manual / 4 Product description / A150-M56/66/57/67 -

A155-M..

18 Tools / 

18 Tools

For the work described in the Operation Manual, the customer tool set 90000 is required.

90000 Designation Quantity

90012 Service support 1

90013 Plastic insert 1

90022 (only - M58/68) Threaded insert 1

90230 Socket screw 2

90042 Press-off tool 2

90070 Extraction device 2

Table80: Customer tool set 90000

ABB offers an optional special tool set(90160) which, in the event of limited accessibility,

can be used to facilitate the loosening of nuts and the application of tightening torques for

the strip connection between the cartridge group and the turbine casing.

Special tool (90160):

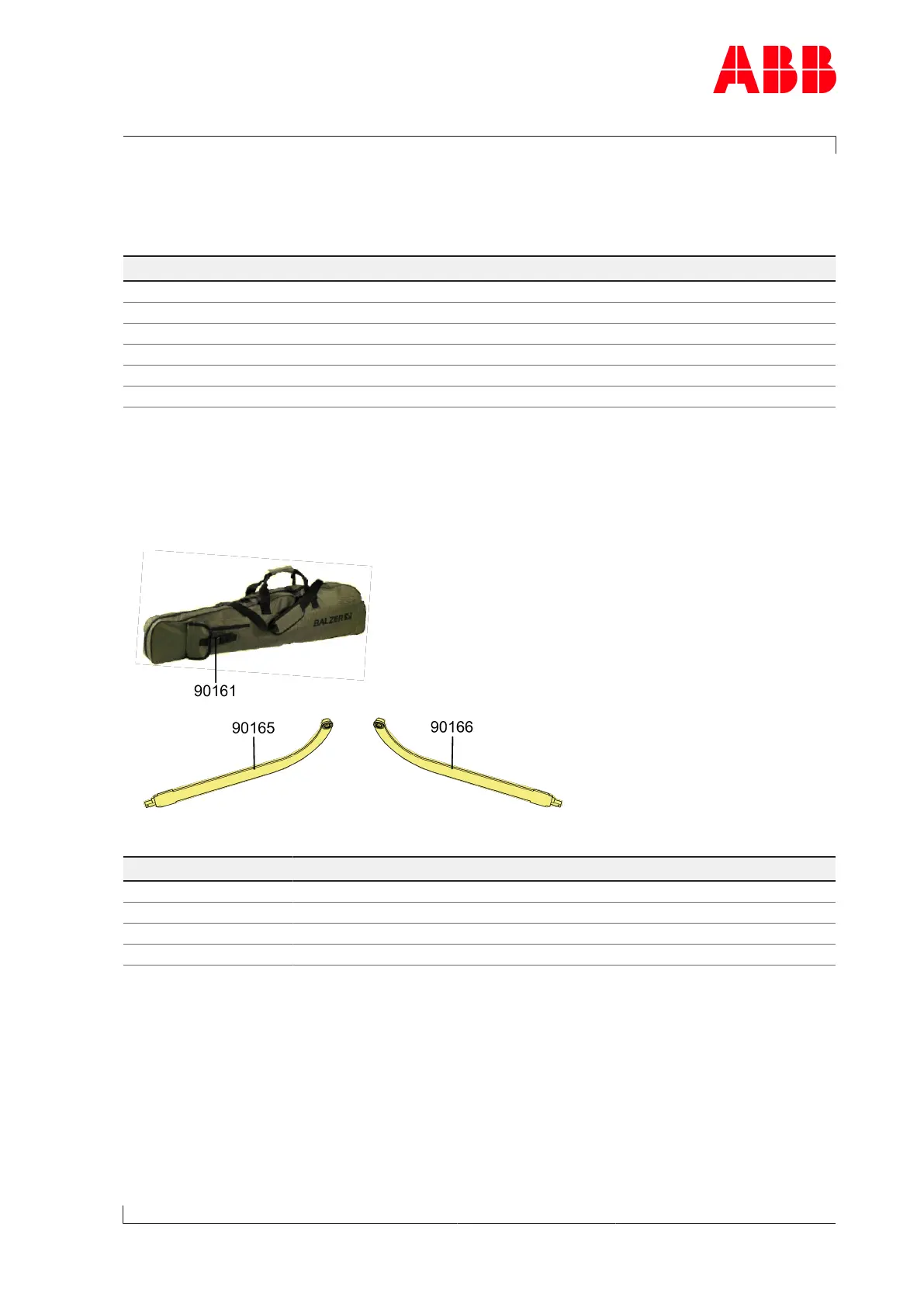

Fig.129: Special tool

Part number Description Quantity

90160 Special tool, complete 1

90161 Bag 1

90165 Spanner holder 1

90166 Spanner holder 1

Table81: Special tool (90160)
