Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
9 Dismantling and fitting with removed air inlet and gas outlet / 9.13
Installing the compressor casing
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
Installing the compressor casing

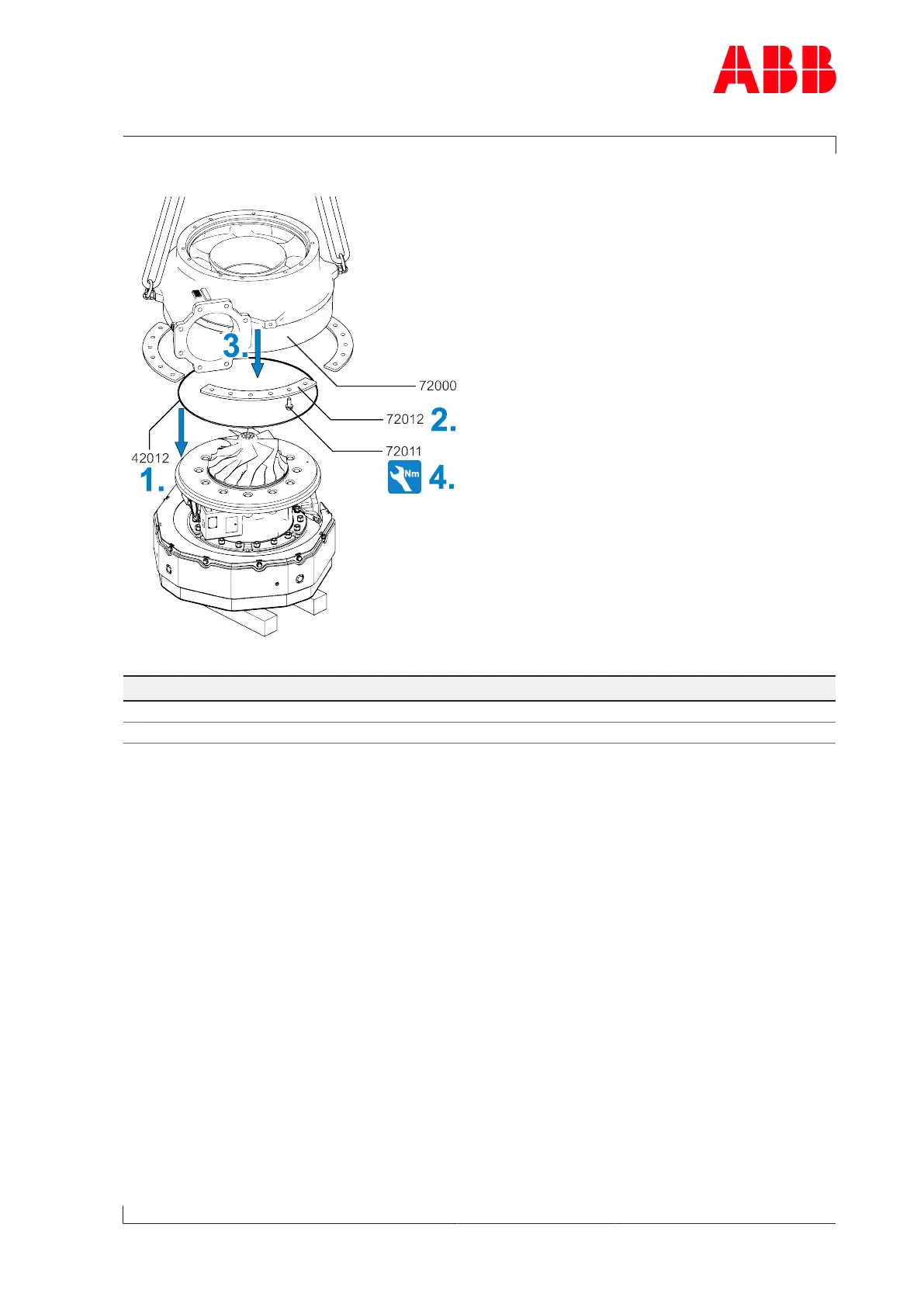

Fig.65: Installing the compressor casing
Product Size Tightening torque [Nm]
A150 M16 275
A155 M18 370
Table48: Tightening torque (72011)
1. Fit new O-ring(42012).
2. Thoroughly clean the fastening strips(72012) before assembly.
3. Install the compressor casing(72000).
4. Install the fastening strips(72012) with screws(72011). Observe the tightening torque.
