Operation Manual / 4 Product description / A150-M56/66/57/67 -

A155-M..

11 Dismantling and fitting, special tools for fastening strips / 11.1 Ap-

plication, special tools

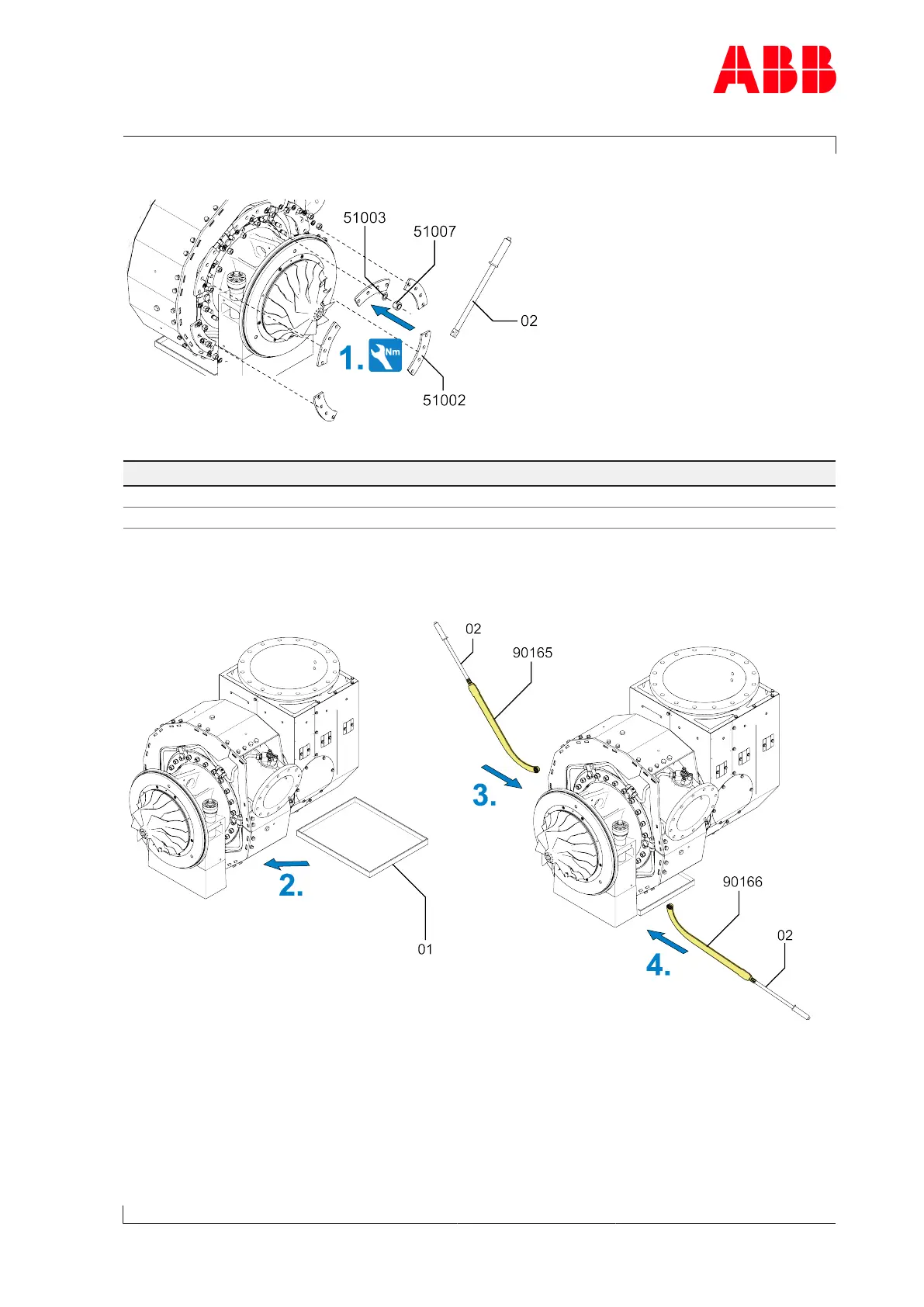

Fitting the fastening strips

Fig.103: Fitting the upper fastening strips

Product Size Tightening torque [Nm]

A150 M16 175

A155 M16 175

Table66: Tightening torque (51007)

1. Fit the nuts (51007) of the (upper) fastening strips (51002) illustrated and tighten with a

torque spanner(02) without a spanner holder. Observe the tightening torque.

Fig.104: Fitting the bottom fastening strip

2. Position the collection tub(01) to catch any fixing elements if they fall.

3. Tighten the two nuts on one side by using the spanner holder(90165).

4. Tighten the two nuts on the other side by using the spanner holder(90166).

The cartridge group is fitted at this point in time. To enable a clear representation of the

work step, the cartridge group is not illustrated in work step5.

Page 137 / 171
