Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
11 Dismantling and fitting, special tools for fastening strips / 11.1 Ap-
plication, special tools
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
The cartridge group is already fitted at this point in time. The cartridge group is not illus-
trated in the following images so that all work steps are visually clear.

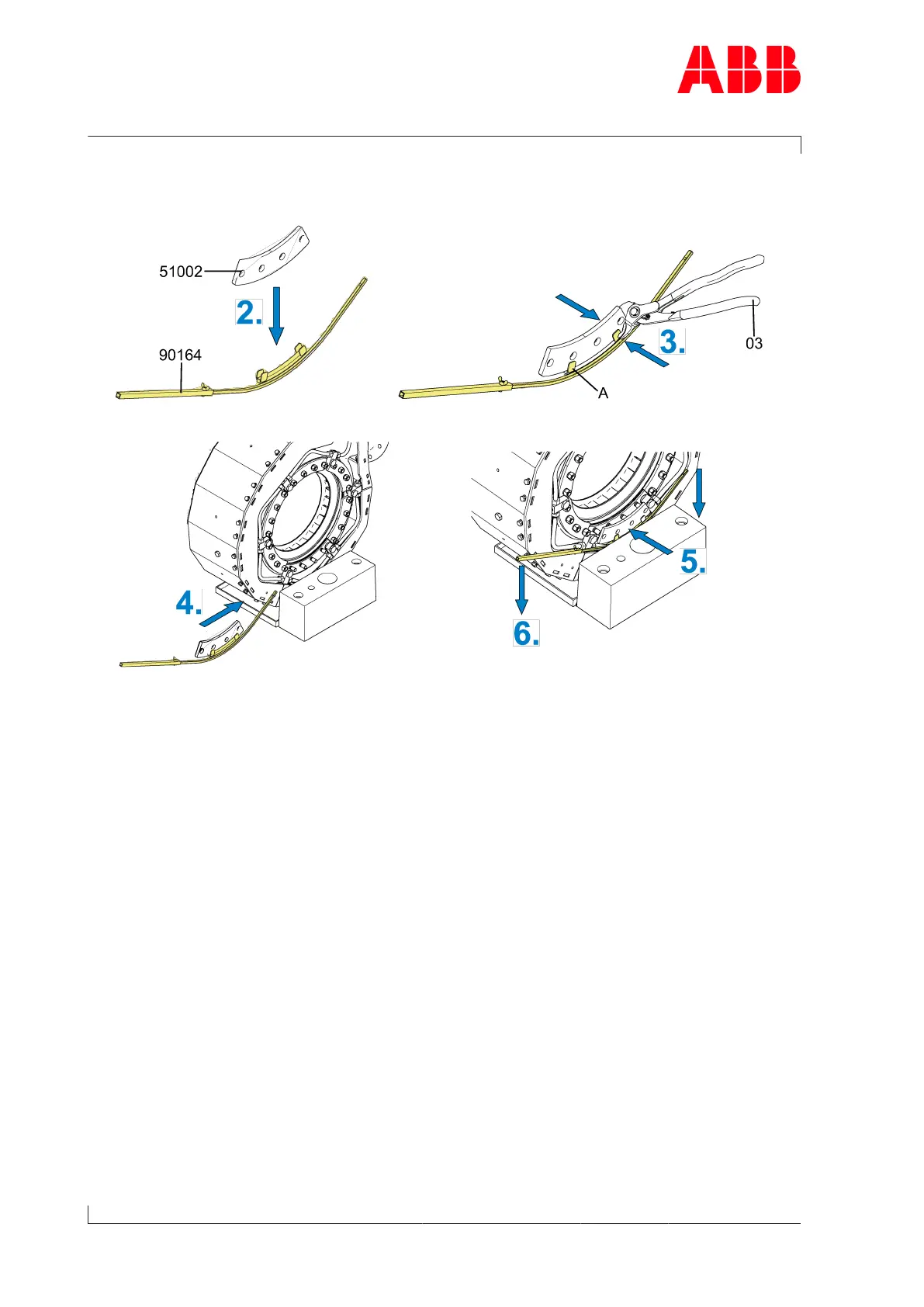

Fig.107: Positioning the fastening strip
2. Position fastening strip (51002) in the tool disassembly segment (90164).
3. Clamp the lugs (A) of the tool disassembly segment slightly using the universal pliers (03)
to fix the fastening strip.
4. Position the fastening strip with the tool disassembly segment onto the set screws.
5. Push the fastening strip with the tool disassembly segment in the direction of the tur-
bine casing as far as possible.
6. Depress the tool disassembly segment and remove it.
Page 140 / 171
