10 Dismantling and fitting, cartridge concept / 10.9 Installing the com-

pressor casing

10.9 Installing the compressor casing

Fitting the wall insert and the diffuser

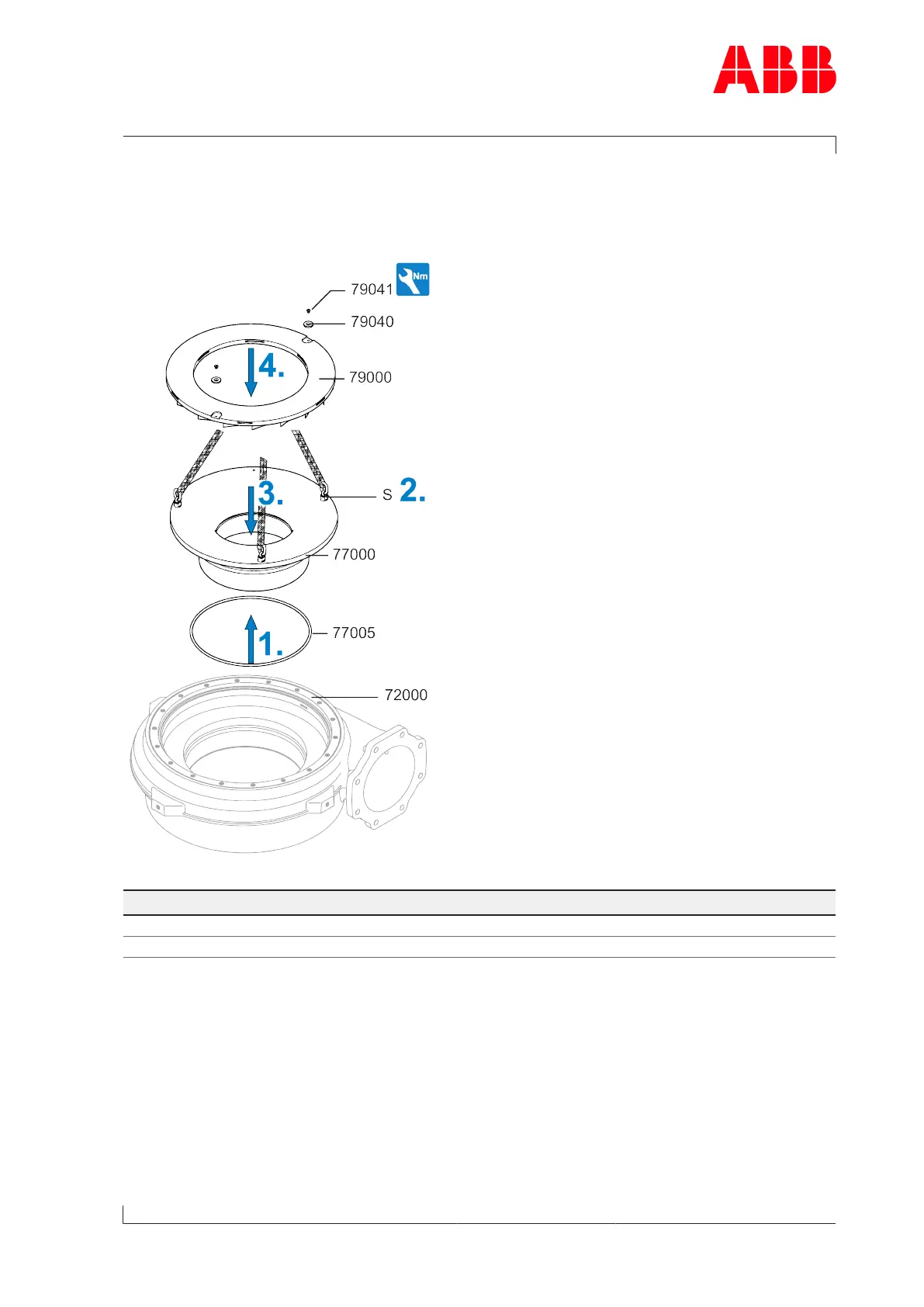

Fig.93: Fitting the wall insert and the diffuser

Product Size Tightening torque [Nm]

A150 M6 8

A155 M6 8

Table59: Tightening torque (79041)

1. Fit a new O-ring(77005).

2. Fit the swivel lifting eyes(S) to the wall insert(77000). Secure lifting gear to the swivel

lifting eye.

3. Install the wall insert(77000) into the compressor casing and, when doing so, pay atten-

tion to the positioning pin in the compressor casing.

4. Fit the diffuser(79000) with fixing discs(79040) and screws(79041). Observe the tight-

ening torque.
