LIMITER PANEL INSTALLATION, OPERATION AND MAINTENANCE MANUAL
—
2. Technical data
2.1 I
s
-limiter
TM
panel
Electrical data
Rated voltage kV 36
Rated power frequency withstand
voltage
kV 70
Rated lightning impulse withstand
voltage
kVp 170
Rated frequency Hz 50
Rated current of busbars A 1250, 2000, 2500
1)
Peak withstand current kAp 100
Rated short-time current 3s kA 40
Rated control supply voltage V DC 110, 220;
AC 110, 220
1)
With cooling fan
Dimensions and weight
Dimensions
Height mm 2845
1)
Width mm 1300
2)
Depth mm 2345
Weight including I
s
-limiter
TM
switch kg 2200
1)
Including absorber assembly. Without absorber assembly 2610
2)
Including end covers
1300
2610
2345
2345 1300
2845
—

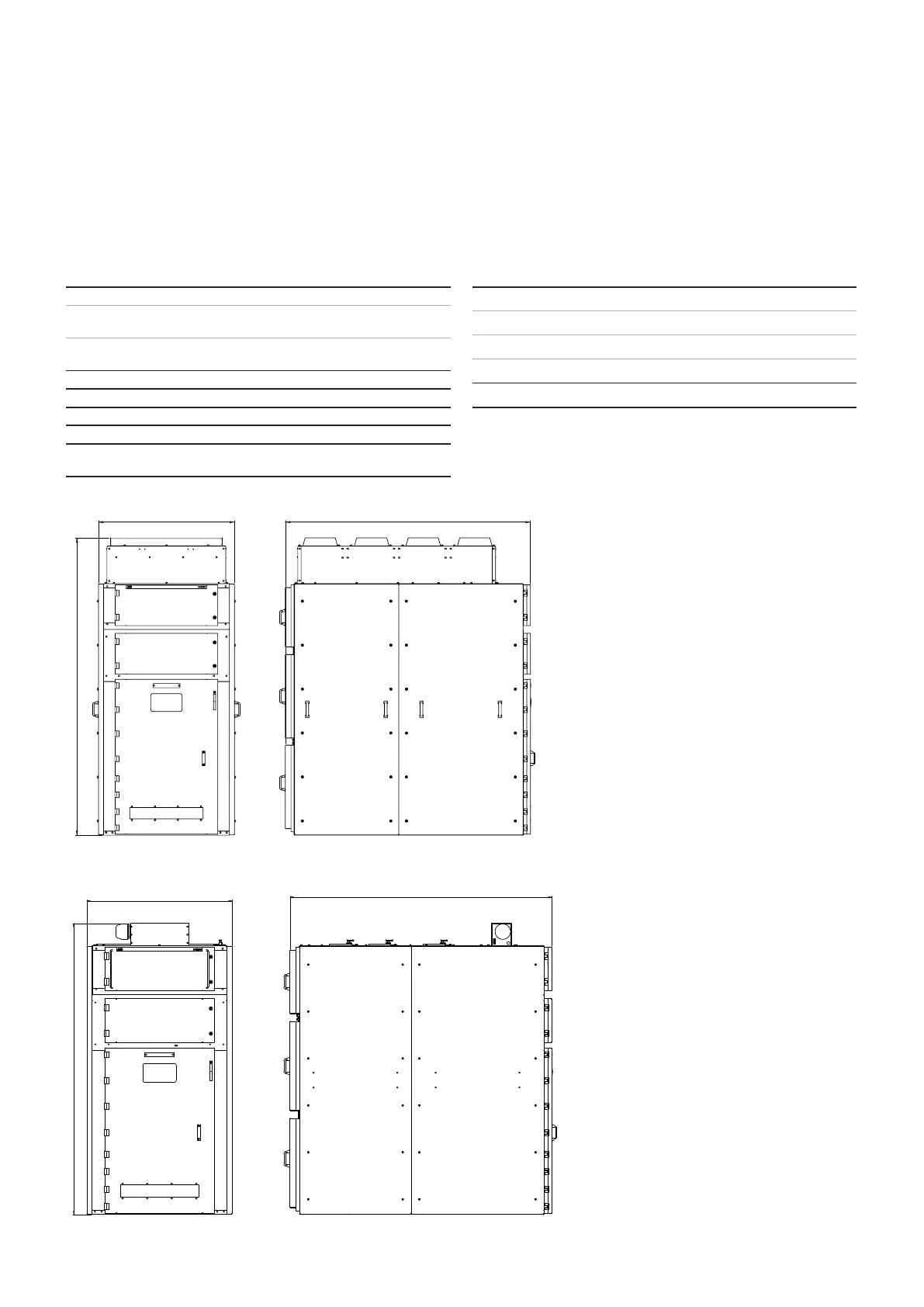

Overall dimension of panel with absorber assembly
—
Overall dimension of panel without absorber assembly
