Sensor head installation
The display, conduit, sensor head and mounting clamps are delivered separately and are
mounted together at customer site (see Fig. 2.2).

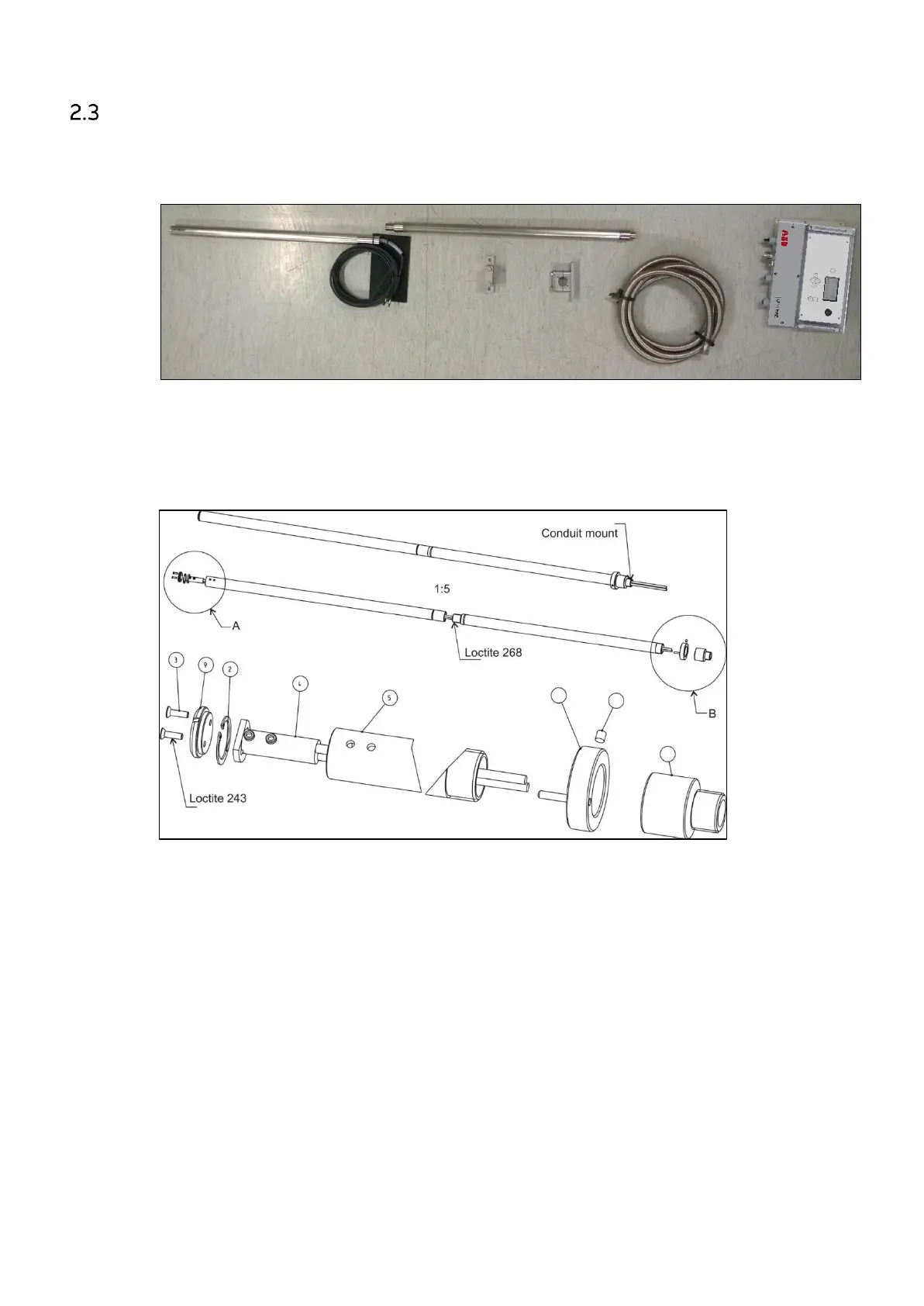

Fig. 2.2. KPM KB2 delivery.
The sensor head tube is delivered in 2 pieces which are mounted together at customer site (see
Fig. 2.3).
Fig. 2.3. Sensor head assembly, typical installation (parts listed in appendix 2).
The fiber optic cable is mounted to the first part of sensor head tube.
