ABB KPM KB2 User Manual

32
Appendix 2: Spare parts

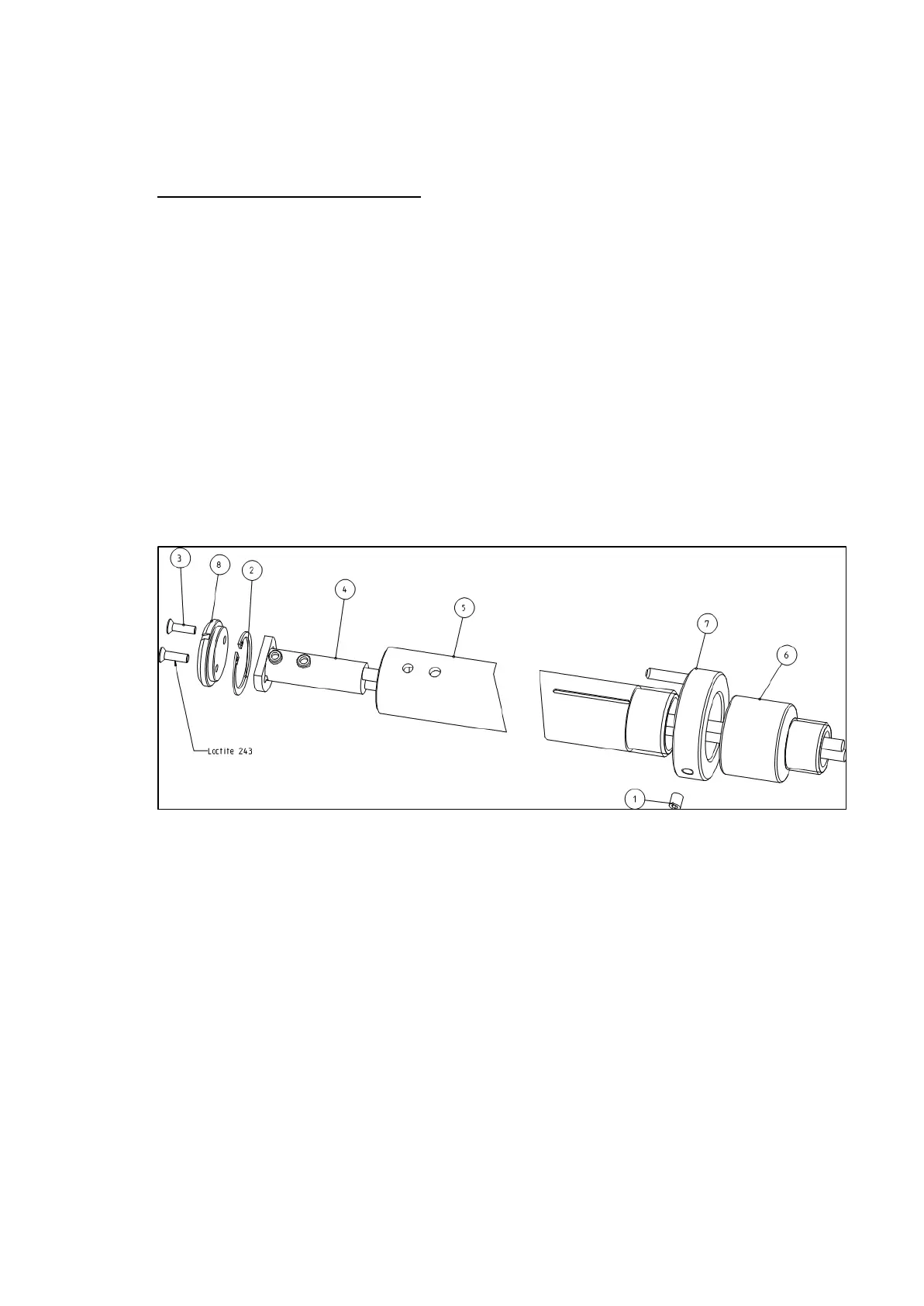

KPM KB2 Sensor Head Assembly
1. 2000018 Set screw
2. 2000033 Lock ring
3. 2000205 Screw M 4x14
4. Fiber optic cable
315001 Fiber optic cable 6 m
315002 Fiber optic cable 9 m
315003 Fiber optic cable 12 m
5. H31100059V1.0 KB Front Sensor head tube with eyelets
H31100060V1.0 KB Back Sensor head tube
6. H41100103V1.0 Tube adapter
7. H41110025V1.0 Set collar
8. H41110043V1.0 End cap
2350011 KB/6 Conduit, L=4370
2350012 KB/9 Conduit, L=7370
2350013 KB/12 Conduit, L=10370
A41100096V1.0 KB Sensor Head Assembly 6 m
A41100097V1.0 KB Sensor Head Assembly 9 m
A41100098V1.0 KB Sensor Head Assembly 12 m
A41100095V1.0 KB Mounting Assembly
A41100094V1.0 KB Mounting Rack
A41100058V1.0 KB Mounting Adapter PosiEye
