PGC5000 Series Service Instructions 8 Replacement parts
SI/PGC5000-EN, Rev B 80
8.5 Class b main interior, both versions (see Figure 8.10)
Description Part Number
Oven Heater Kit, 115 V 1000 W 800K007-1
Oven Heater Kit, 230 V 1000 W 800K007-2
Oven Heater Kit, 115 V 500 W 800K007-3
Oven Heater Kit, 230 V 500 W 800K007-4
Temperature Sensor, Platinum 3617330-1
Makeup Valve 3616890-1
Splitter Valve 3616890-2
Metering Valve 3529409-1
Restrictor Valve 3616446-1
Diaphragm Valve, one-screw type 8230442-3
Diaphragm Valve, four-screw type 851Z064-_
Liquid Sample Valve (see 8.5.1)
Flame Ionization Detector (see 8.5.2)
Single-Port Thermal Conductivity Detector (see 8.5.3)
Multiport Thermal Conductivity Detector (see 8.5.4)
Flame Photometric Detector (see 8.5.5)
Burner Block (see 8.5.6)
M2CP Valve (see 8.5.7)
M2CP
Val ve
Oven
Heater
Dete ctor
Assy

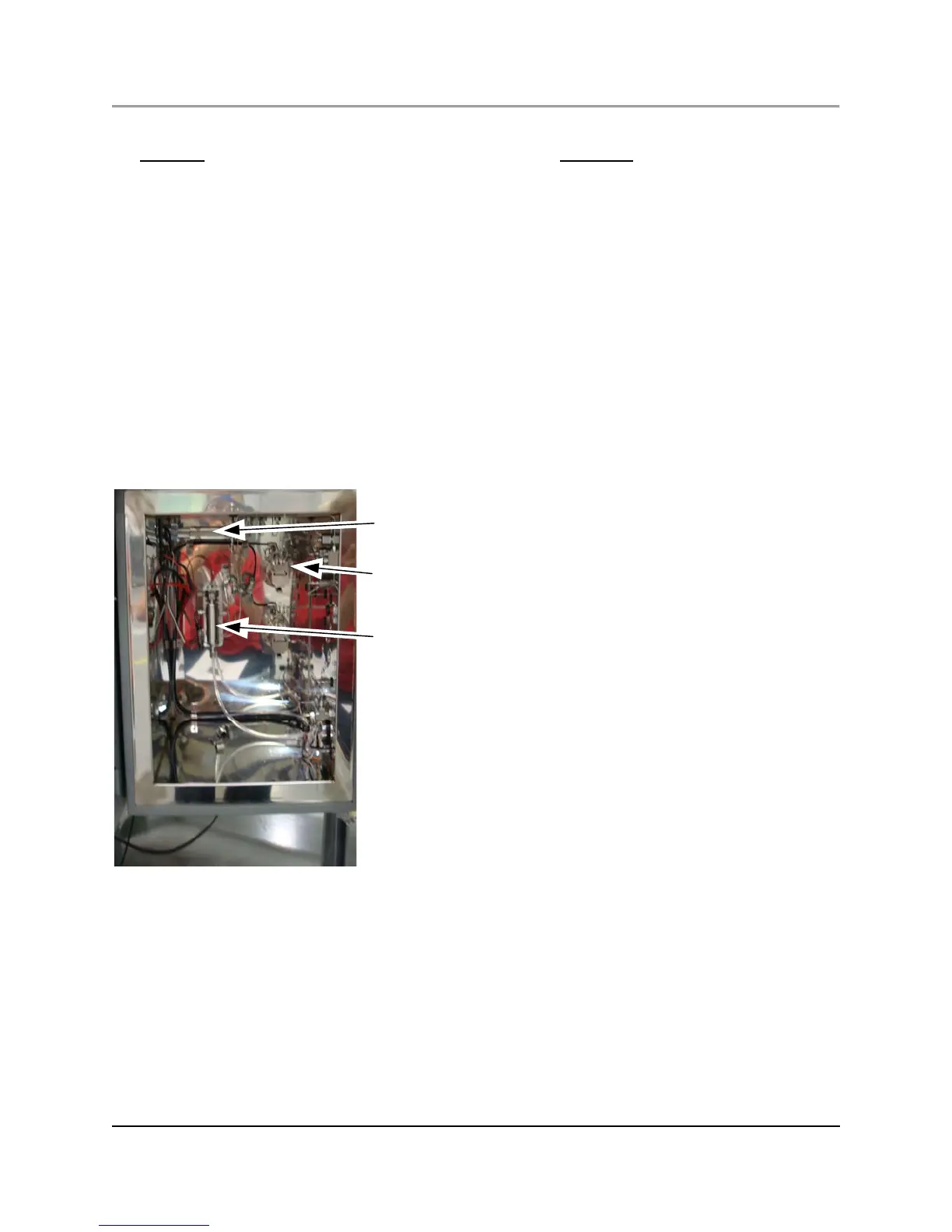

Fig. 8.10. Main Interior Components
