ABB PGC5000 Series - Flame ionization detector; Single-port thermal conductivity detector

PGC5000
PGC5000 Series Service Instructions 8 Replacement parts
SI/PGC5000-EN, Rev B 82
8.5.2 Flame ionization detector (see Figure 8.12)
Description Part Number
Maintenance Kit 799K003-1
Jet 3617156-2
Ignitor Assy 794A007B-2
Thermocouple Assy 794A008B-1
Polarizer Assy 794A009B-1
Column kits are application dependent–see Data Package for correct part
Capillary Column Kit NEC 799K001N-1
Packed Column Kit NEC 799K001N-2
Packed Column Kit CENELEC 799K001N-3
Capillary Column Kit CENELEC 799K001N-4
Wire Splice Kit 800K001-1
Microdot Cable Insertion Kit 799K006-1

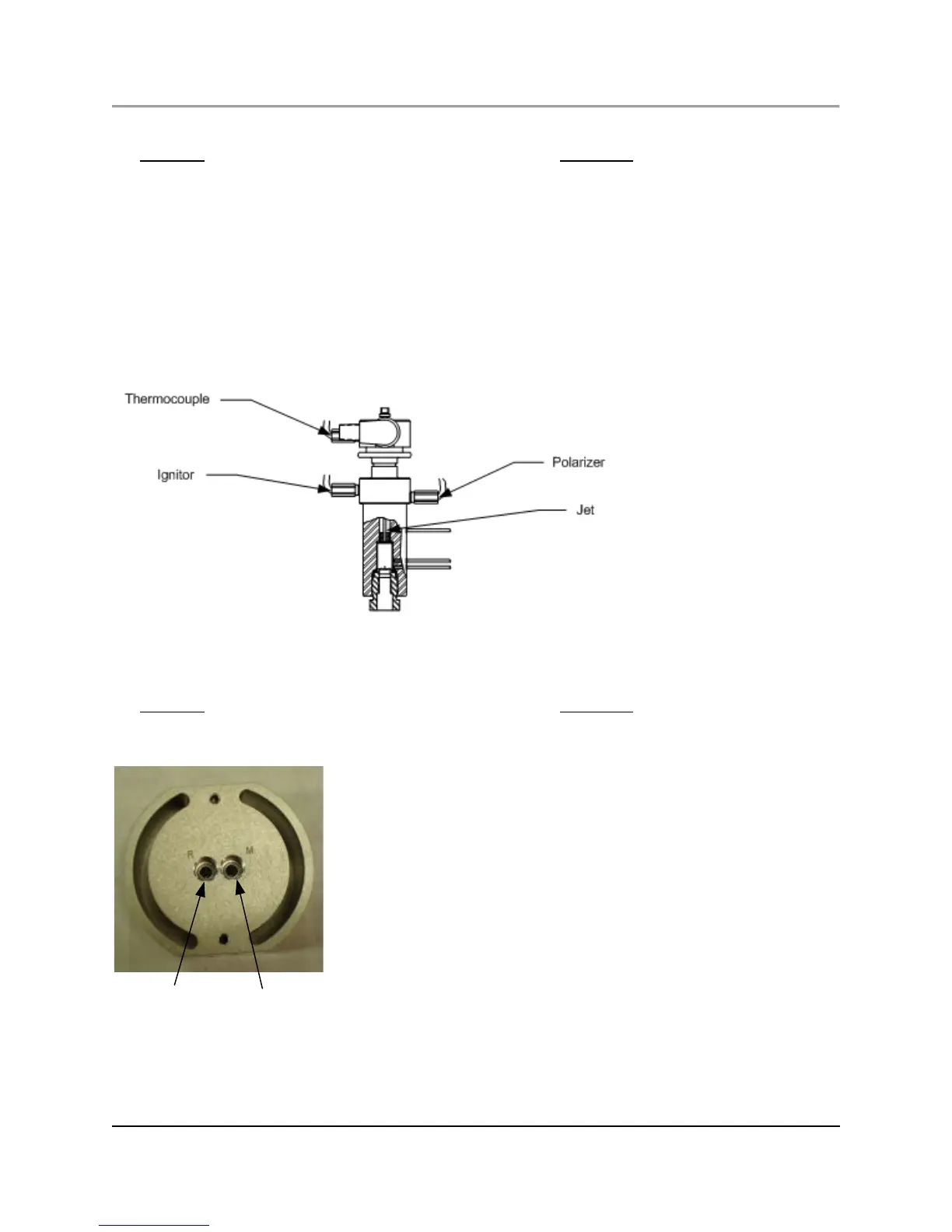

Fig. 812. FID Components
8.5.3 Single-port thermal conductivity detector (see Figure 8.13)
Description Part Number
Filament Kit NEC 800K003-1
Filament Kit CENELEC/CSA 800K003-2
Reference
Filament
Measure
Filament
Fig. 8.13. Single-Port TCD Components
