FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | CI/FEP630/FEH630-EN REV. D 19
Rotate LCD indicator – dual-compartment housing
The LCD indicator can be rotated in three increments of 90°
each. To open and close the housing, refer to Opening and
closing the housing on page 17.
Turn the LCD indicator:
Perform steps
A to F.

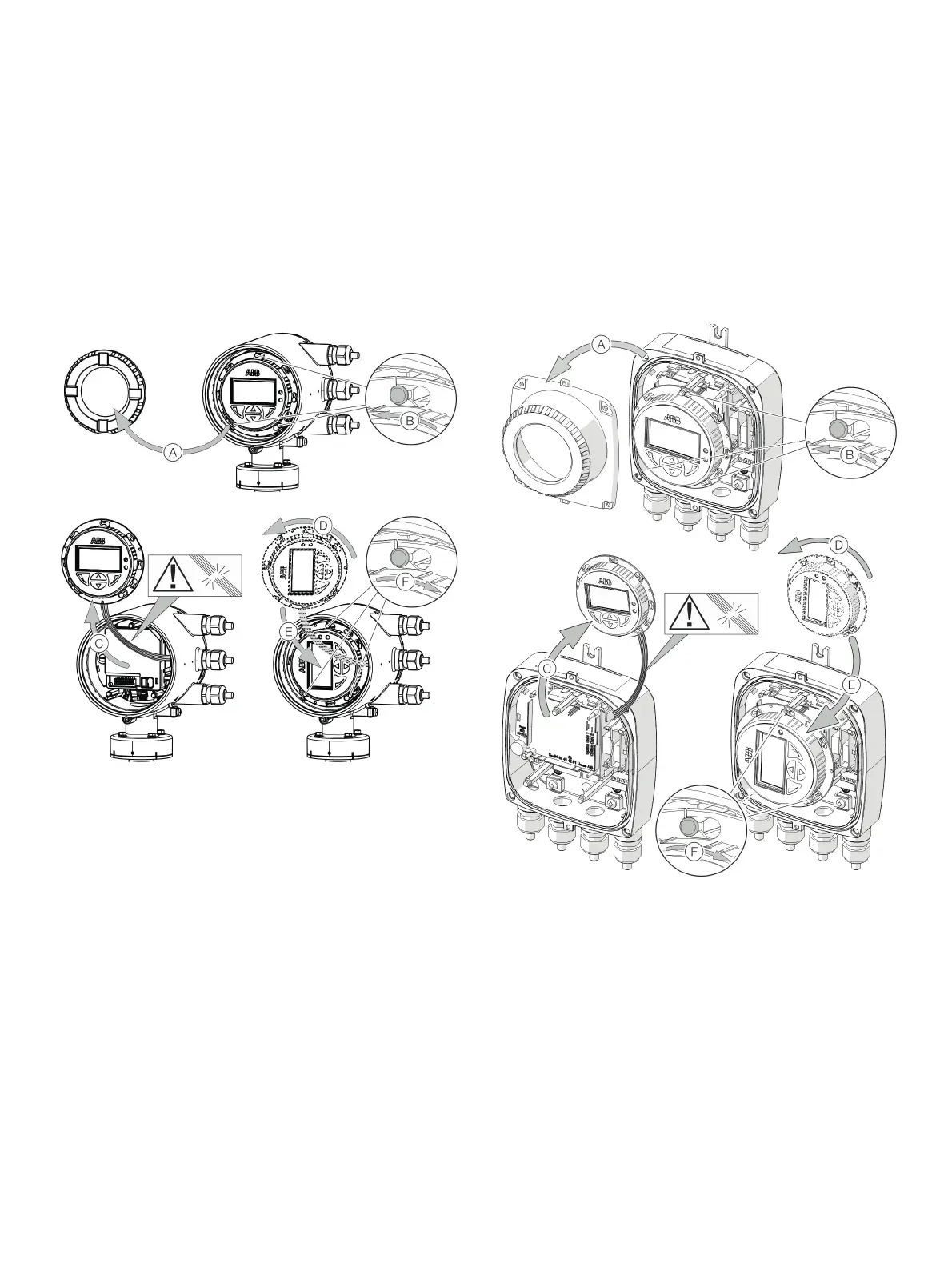

Figure 25: Rotating the LCD indicator
Rotate LCD indicator – single-compartment housing
The LCD indicator can be rotated in three increments of 90°
each. To open and close the housing, refer to Opening and
closing the housing on page 17.
Turn the LCD indicator:
Perform steps
A to F.
Figure 26: Rotating the LCD indicator
