38 FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | CI/FEP630/FEH630-EN REV. D
… 5 Electrical connections
… Pin assignment

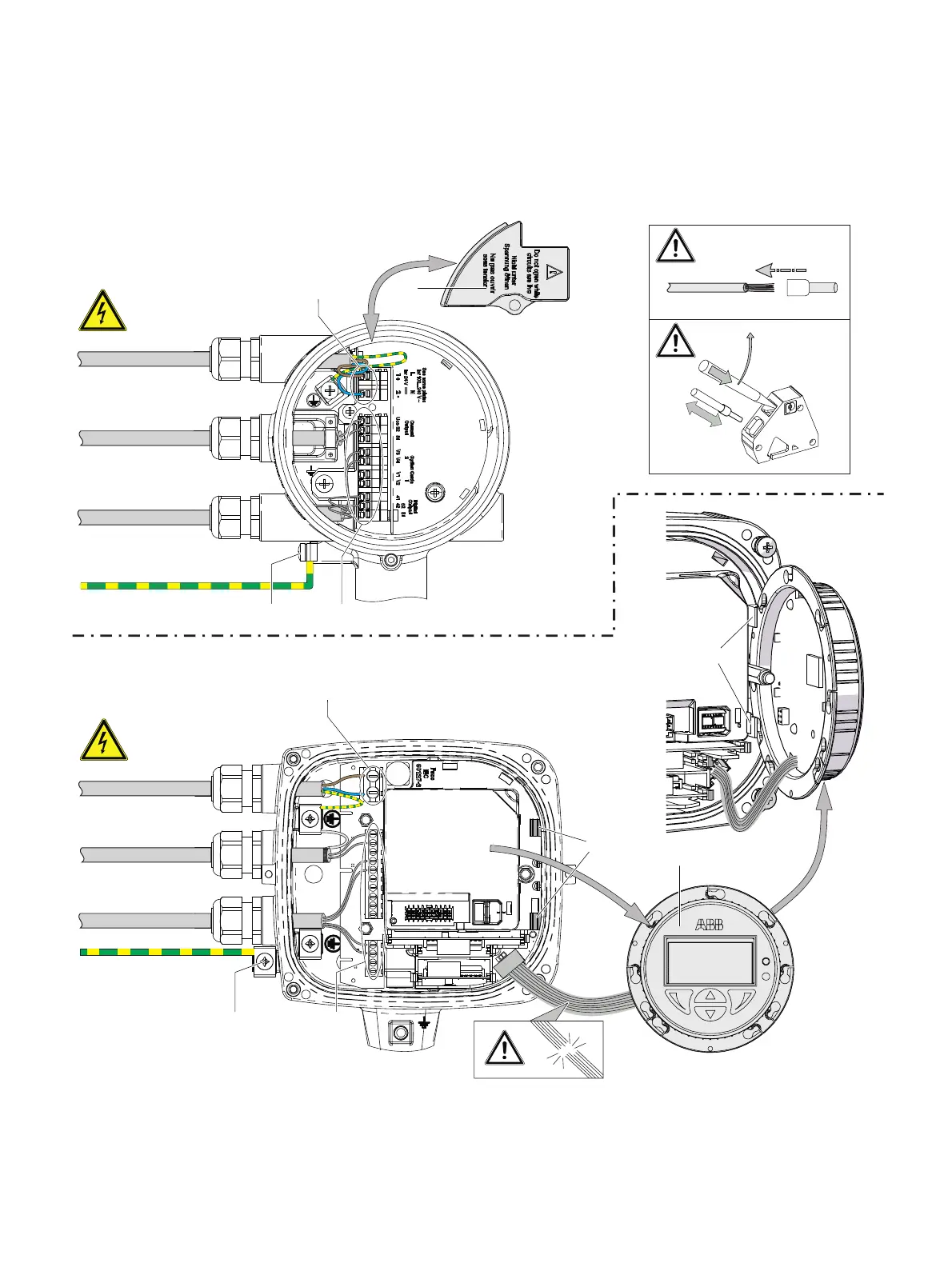

Connection to integral mount design
Dual- compartment housing
G11618-01
HART
Iout 1+2
DI DO+
100 ... 240 V AC
24 V DC
HART
Iout 1+2
DI DO+
100 ... 240 V AC
24 V DC
PA
PA
1
2
4 3
1
4 3
6
6
5
Single-compartment housing
1 Terminals for power supply
2 Cover for power supply terminals
3 Terminals for inputs and outputs
4 Terminal for potential equalization
5 LCD indicator
6 Bracket for LCD indicator (park position)
Figure 56: Connection to device (example), PA = potential equalization
