ABB ProcessMaster FEP630 - Single-Compartment Housing; Configuration of Digital Outputs V1 V2 or V3 V4

FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | CI/FEP630/FEH630-EN REV. D 47
Single-compartment housing
G12156
Off
On
1
1 DIP switch, Write protection

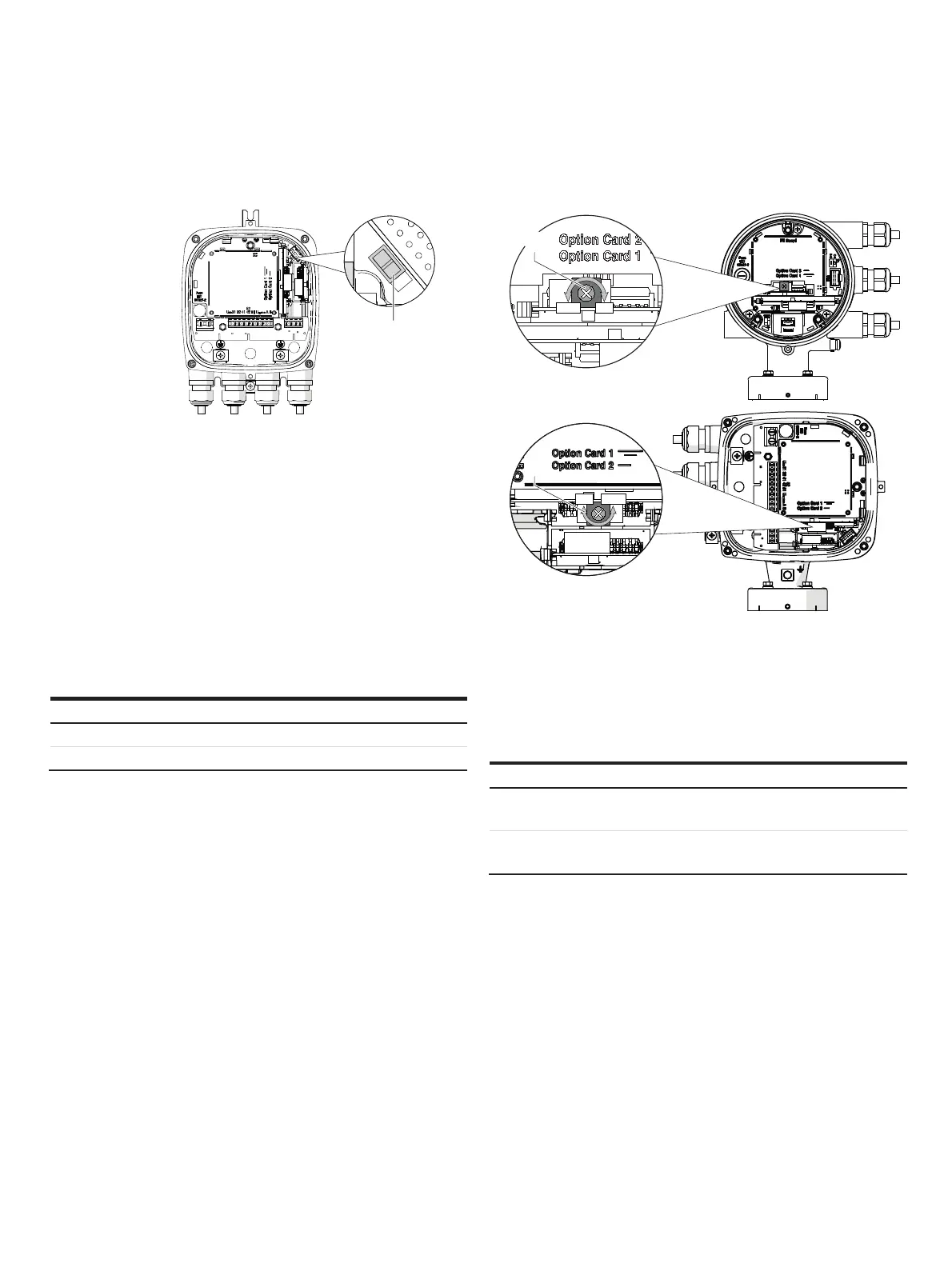

Figure 63: Position of the DIP switch
The DIP switches are used to configure specific hardware
functions. The power supply to the transmitter must be briefly
interrupted or the device reset in order for the modified setting
to take effect.
Write-protect switch
When write protection is activated, device parameterization
cannot be changed via the LCD indicator. Activating and sealing
the write protection switch protects the device against
tampering.
Number Function
On Write protection active
Off Write protection deactivated.
Configuration of digital outputs V1 / V2 or V3 / V4
G11924-01
ONOFF
1
ON
OFF
1
1 NAMUR rotary switch
Figure 64: Position of rotary switch on the plug-in card
The configuration (NAMUR, optoelectronic coupler) for the
digital output on the plug-in card is set via a rotary switch on the
plug-in card.
Number Function
On Digital output V1 / V2 or V3 / V4 as
NAMUR output.
Off Digital output V1 / V2 or V3 / V4 as
optoelectronic coupler output.
