FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | CI/FEP630/FEH630-EN REV. D 21

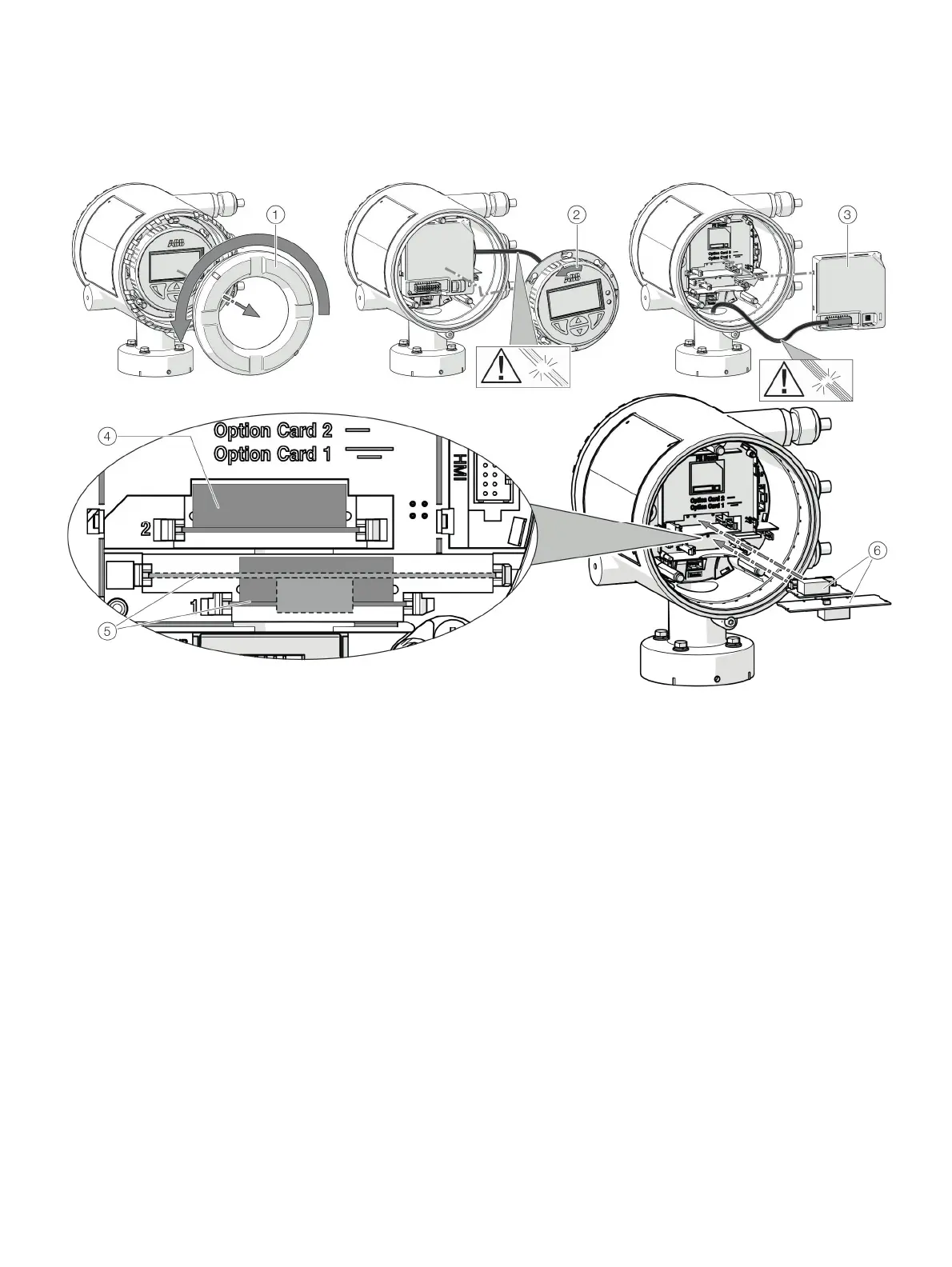

1 Cover
2 LCD indicator
3 Frontend board (FEB, with integral mount design only)
4 Slot OC2
5 Slot OC1
6 Plug-in cards
Figure 27: Installation of plug-in cards (example, dual-compartment housing)
