ABB ProcessMaster FEP630 - Easy Setup Menu Parameterization

FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | CI/FEP630/FEH630-EN REV. D 51

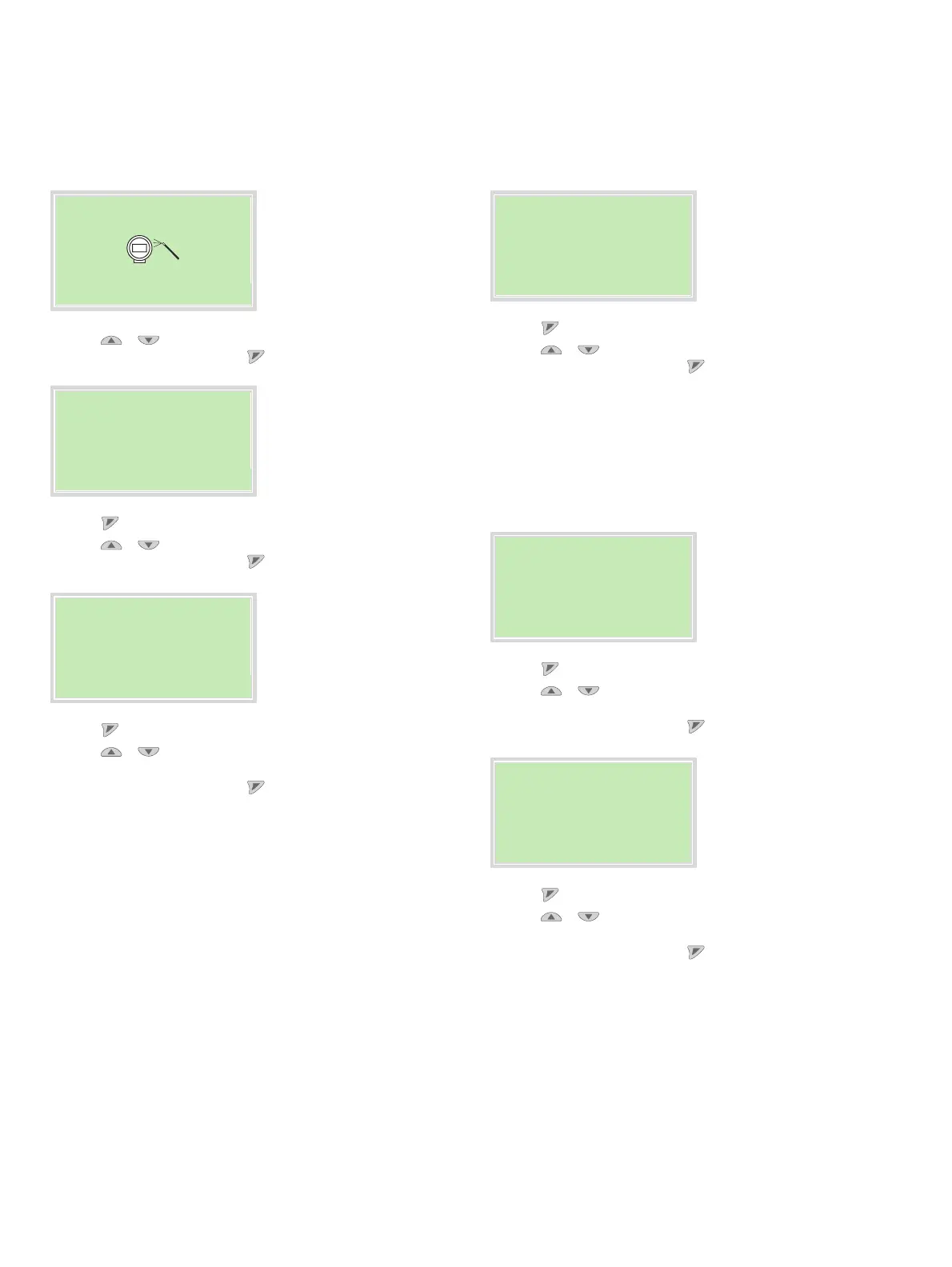

Menu
Easy Setup
Exit Select
5. Use / to select ‘Easy Setup’.
6. Confirm the selection with .
Easy Setup
Language
Language
Next Edit
7. Use to call up the edit mode.
8. Use / to select the desired language.
9. Confirm the selection with .
Easy Setup
Unit Volumeflow Q
v
l/s
Next Edit
10.Use to call up the edit mode.
11. Use / to select the desired unit for the volume flow
rate.
12. Confirm the selection with .
Easy Setup
Qv Max 1
25.000 l/s
Next Edit
13. Use to call up the edit mode.
14. Use / to set the desired upper range value.
15. Confirm the selection with .
The device is factory calibrated to the flow range end value
Q
max
DN, unless other customer information is available. The
ideal upper range values are those which correspond to a flow
velocity of 2 to 3 m/s (0.2 to 0.3 × Q
max
DN)
The adjustable upper range values are listed in the table at
Measuring range table on page 54.
Easy Setup
Unit Vol. Totalizer
l/s
Next Edit
16. Use to call up the edit mode.
17. Use / to select the desired unit for the volume
totalizer.
18. Confirm the selection with .
Easy Setup
Pulses per Unit
10.000/m³
Next Edit
19. Use to call up the edit mode.
20.Use / to select the desired pulse per unit for the
pulse output.
21. Confirm the selection with .
