ABB PT003915 - Spare Part - Illustrations; Table 55

Operation Manual / Power2 340-H / High-pressure stage
13 Spare parts / 13.2 Spare part – Illustrations
© Copyright 2022 ABB. All rights reserved. HZTL4054_EN Rev.F March 2022
13.2 Spare part – Illustrations
The spare parts lists shown below are only available in English.

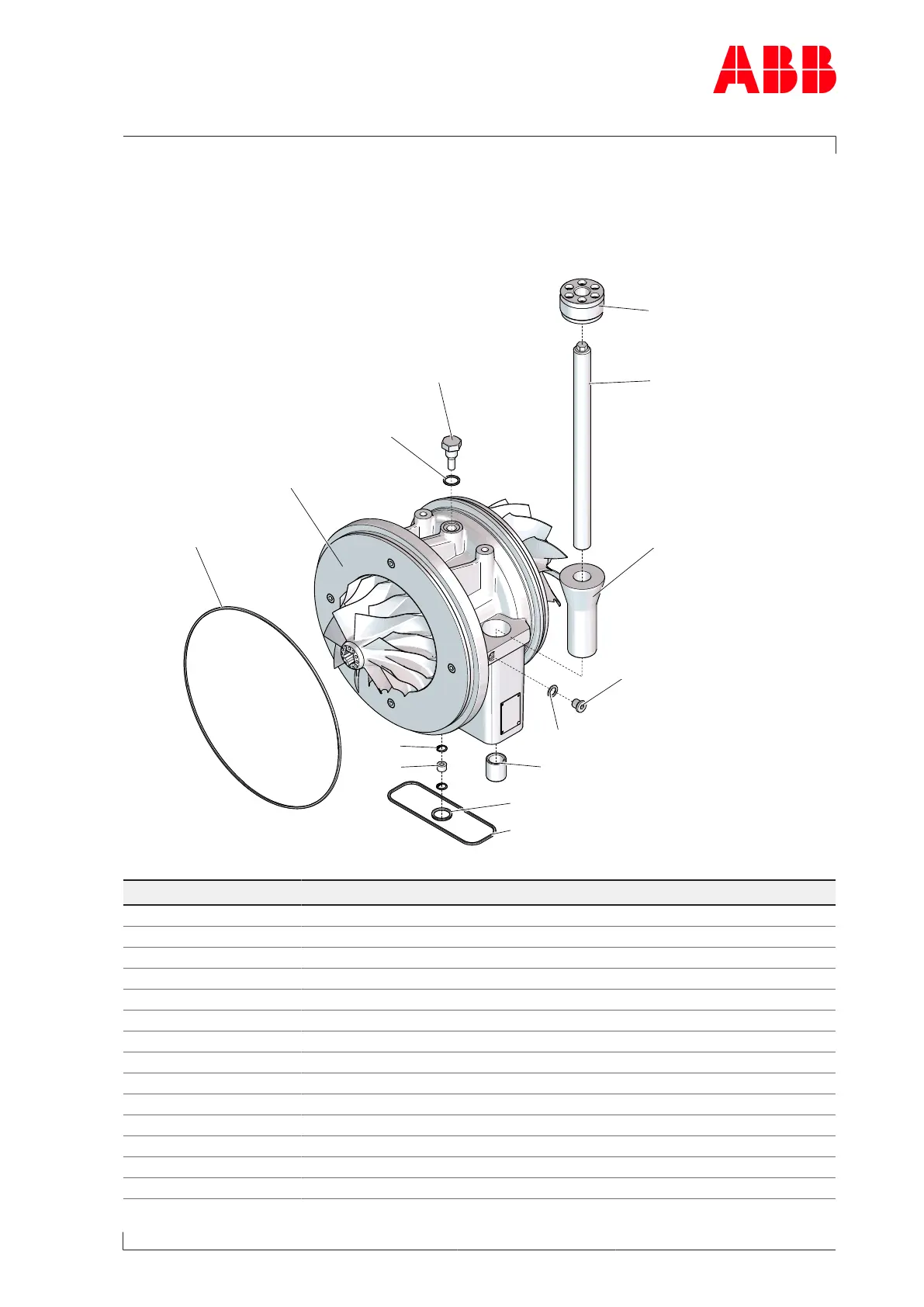

Cartridge
42198*
42199*
42196
42197
42193
10900
42010*
42009
42189
42188
42012*
42190
42191
42201
* = Available within the spare part set HZTL443584 Mod. A
Part no. Designation
10900 Cartridge
42009 Screw plug
42010* O-ring
42012* O-ring
42188 Hexagon-head screw
42189 Gasket
42190 Expansion bush
42191 Threaded rod
42193 Centering bush
42196 Orifice oil inlet
42197 Safety ring
42198* O-ring
42199* O-ring
42201 Clamping nut
Table55
Page 99 / 114
