Operation Manual / Power2 340-H / High-pressure stage
10 Taking out of operation at short notice / 10.4 Cover plate drawing
© Copyright 2022 ABB. All rights reserved. HZTL4054_EN Rev.F March 2022
10.4 Cover plate drawing
The cover plate is not included in the Turbo Systems scope of delivery and must be manufac-
tured by the operating company according to the following drawing.
Material: General structural steel, in accordance with DINEN10025-2.

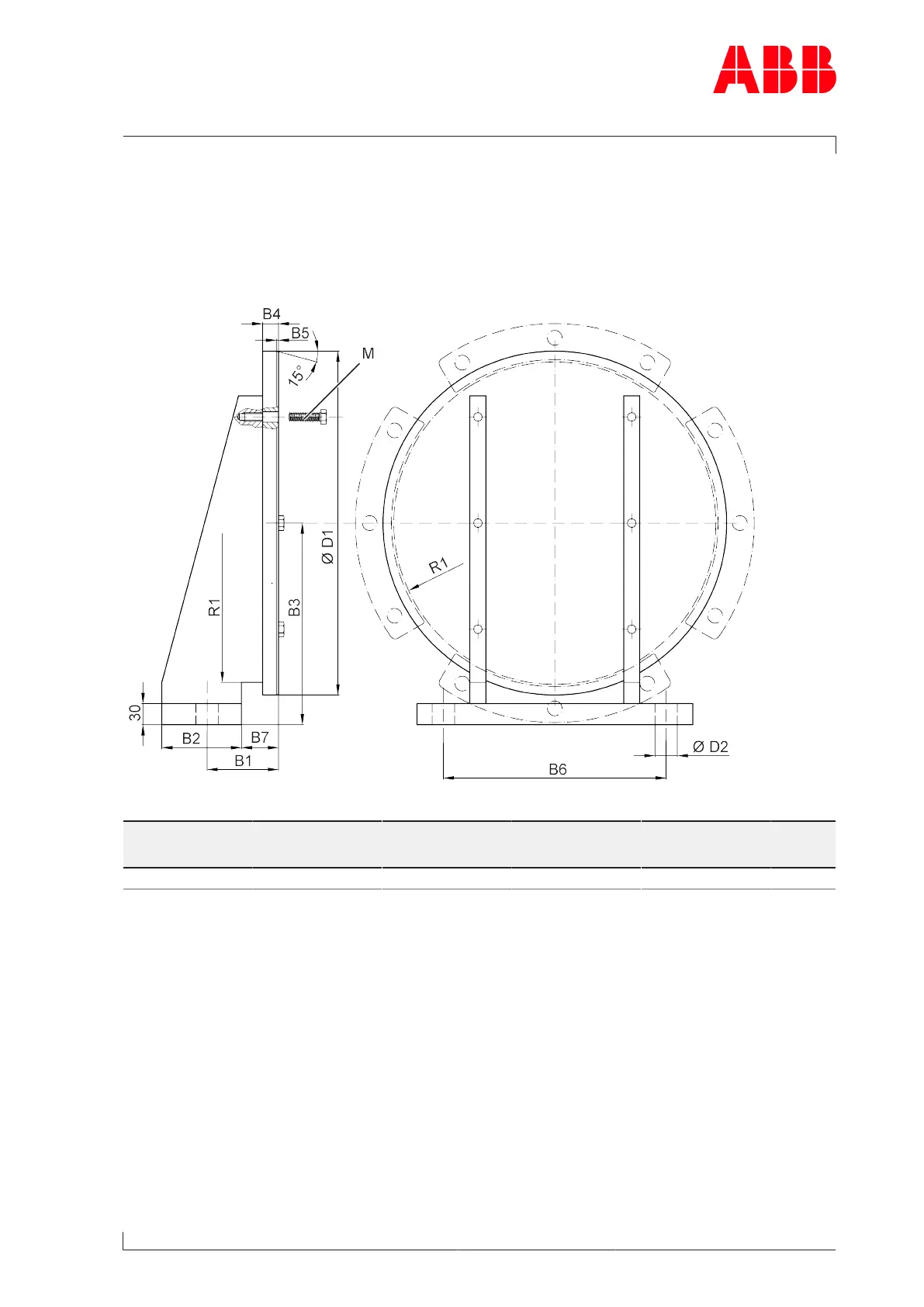

Fig.44: Cover plate drawing
B1
± 0.5
B2 B3 B4
± 0.2
B5 B6 B7 ØD1
± 0.2
ØD2 R1 M
82.5 70 158 20 2 212 47.9 251.2 25 ≤115 M8
Table52: Cover plate dimensions [mm]
Page 91 / 114
