ABB PT003915 - Removing Air Inlets; Fig. 30: Removing the Air Inlets

Operation Manual / Power2 340-H / High-pressure stage
9 Disassembly and assembly / 9.5 Removing air inlets
© Copyright 2022 ABB. All rights reserved. HZTL4054_EN Rev.F March 2022
9.5 Removing air inlets
u Mark the casing position for assembly.

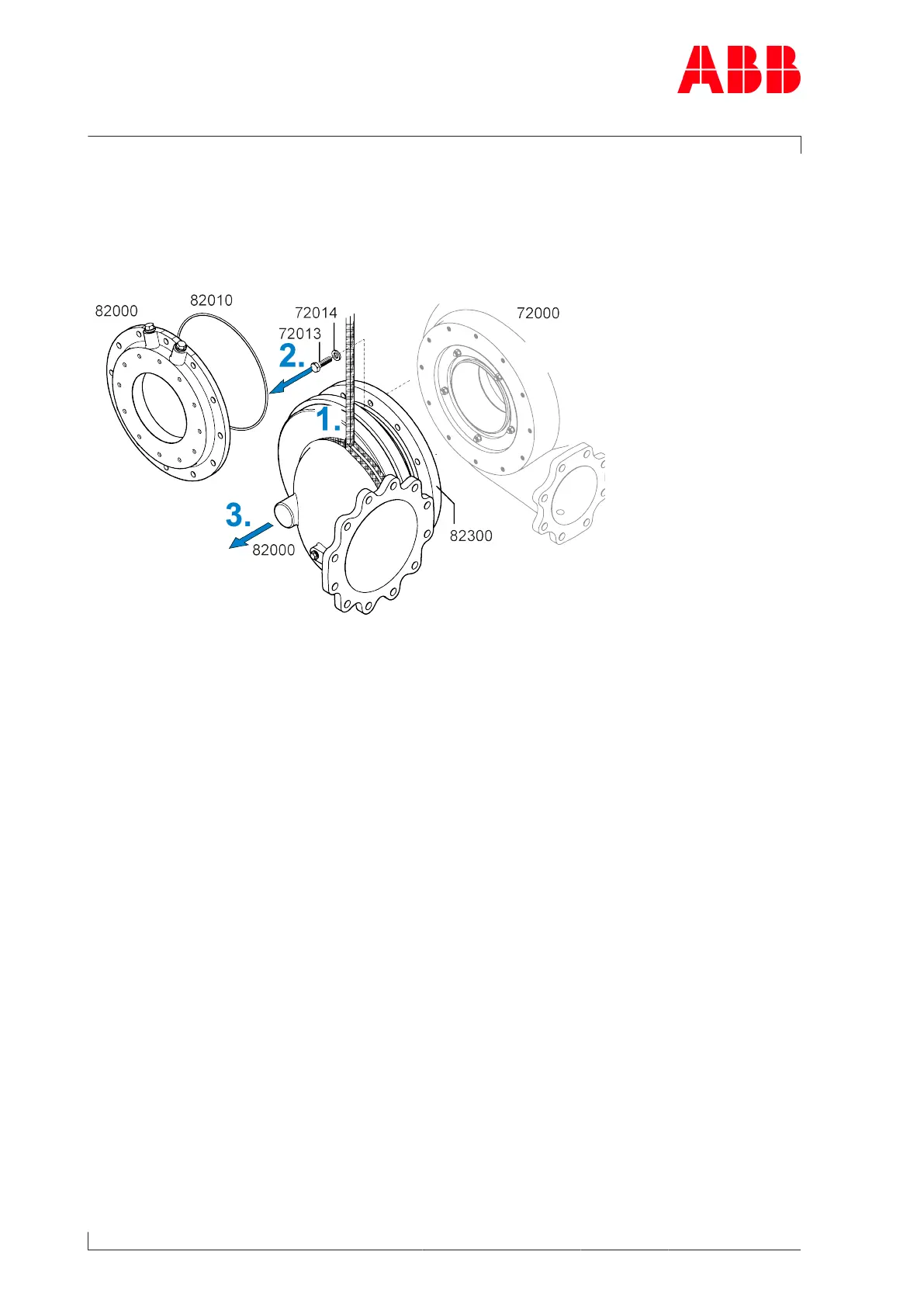

Fig.30: Removing the air inlets
1. Loop the lifting gear around the radial air suction branch(82000).
2. Loosen hexagon-head screws(72013) and remove with washers(72014).
3. Remove the bellows(82300) together with the radial air suction branch(82000) or the
axial air suction branch(82000) with the O-ring(82010), respectively.
u Measure clearance N (see Measuring radial clearances N and R →85).
