Operation Manual / Power2 340-H / High-pressure stage
9 Disassembly and assembly / 9.2 Material required
© Copyright 2022 ABB. All rights reserved. HZTL4054_EN Rev.F March 2022
WARNING
Servicing the assembly devices
Assembly devices must be checked for damage before and after use.
u Visually inspect for corrosion, cracks, deformation and wear.
u Damaged assembly devices must no longer be used and must be re-
placed.
Definition of terms
¡ Suspension point
Defined loading point on a component or an assembly (blind hole thread, eyelet, lug).
¡ Assembly device
Devices that are fitted on the low-pressure or high-pressure stage in order to obtain a
suspension point. Assembly devices are specially constructed and designed for the
defined use; they are not commercially available products. Use assembly devices only for
the described applications.
¡ Lifting gear
Equipment for the lifting and transporting of loads (lifting slings, chain block, crane).
Lifting gear is not supplied by Turbo Systems.
Swivel lifting eyes to be used
Swivel lifting eyes are required for the safe lifting of loads, which are not supplied by Turbo
Systems.

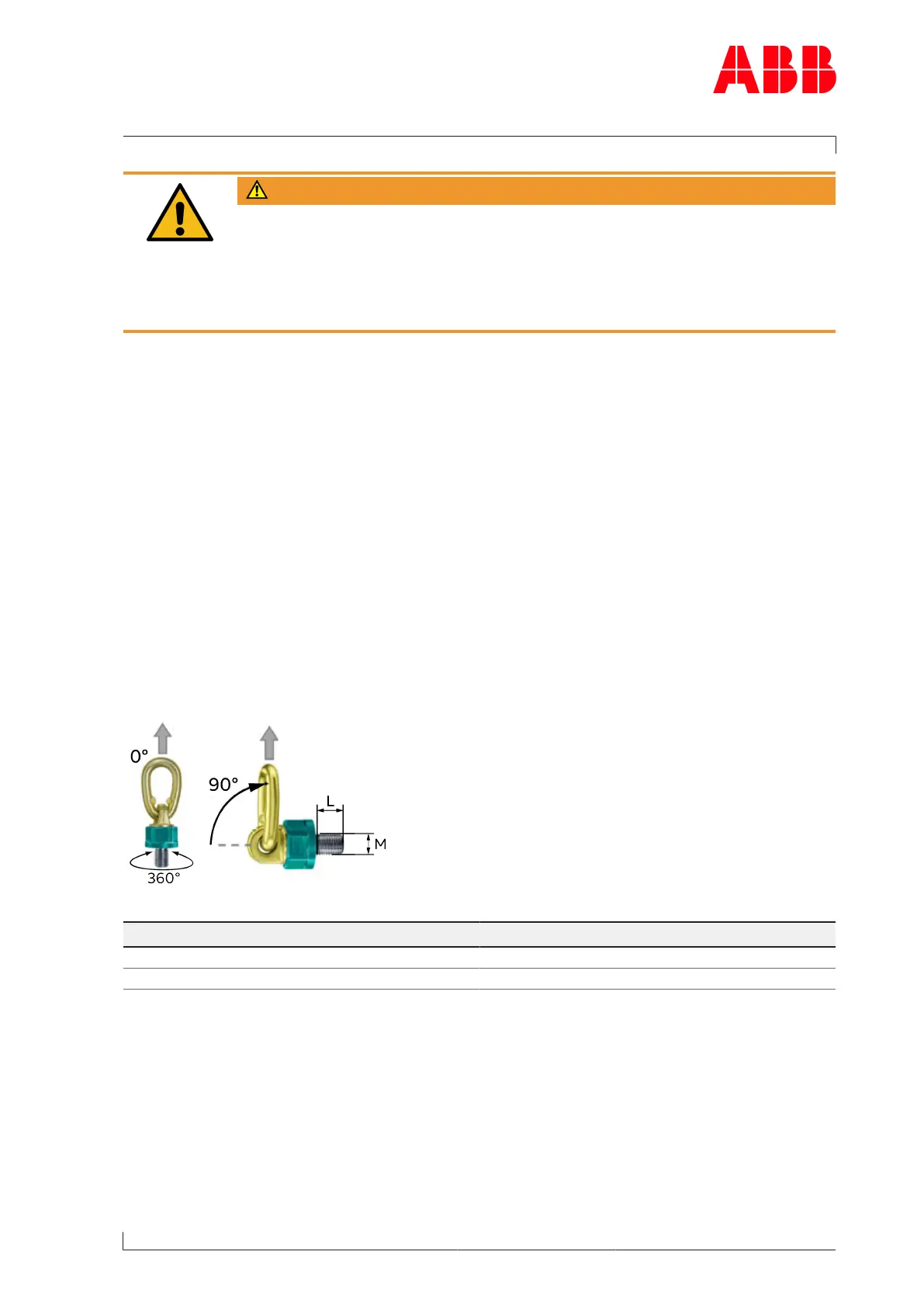

Fig.27: Swivel lifting eye (example)
Thread M Length L Minimum load limit Quantity
M12 21mm 200kg 2
M8 13mm 200kg 2
Table40: Swivel lifting eyes
Page 71 / 114
