9.14 Table of tightening torques

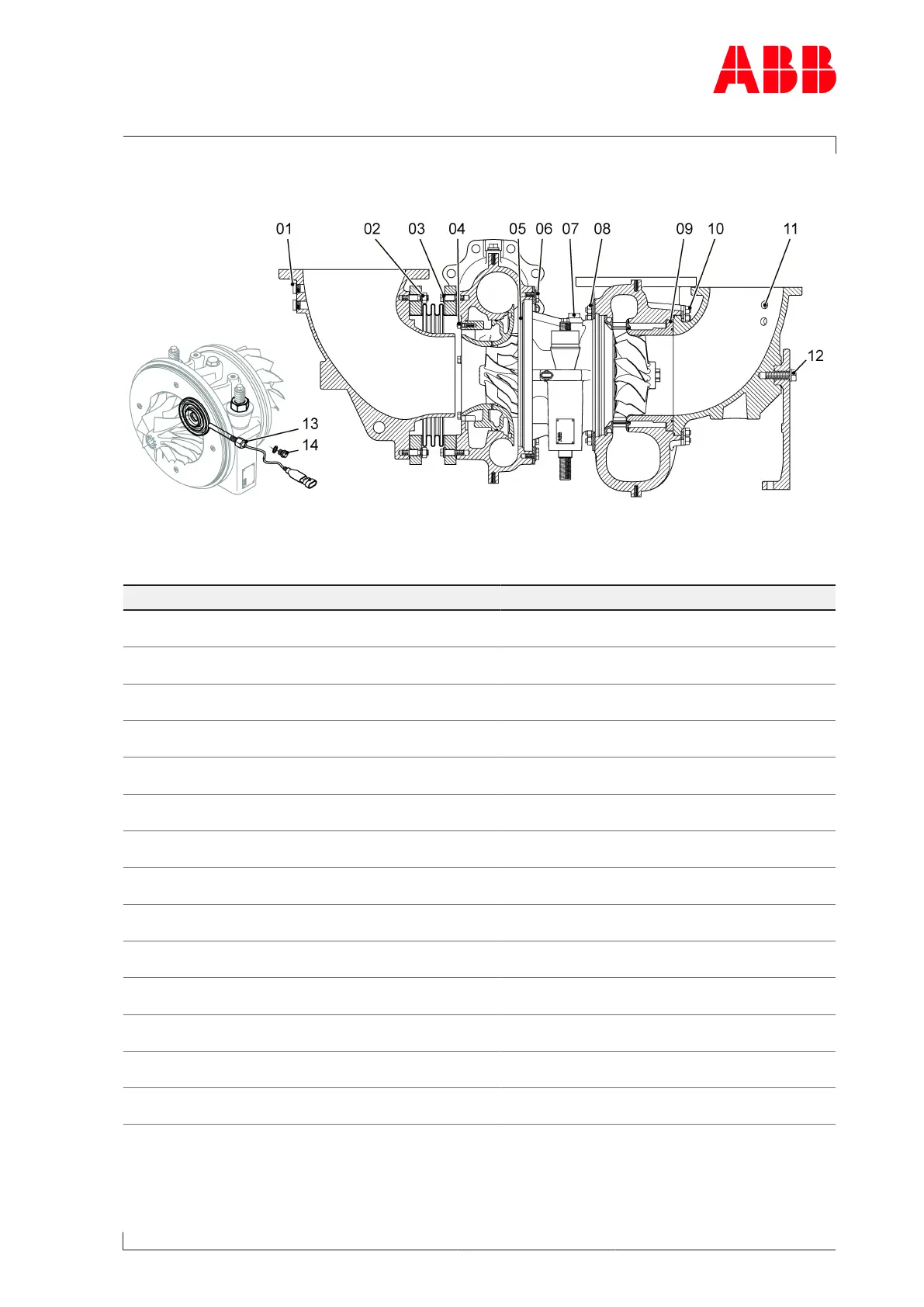

Fig.42: Overview of tightening torques
The following tightening torques[Nm] must be observed for the designated bolted connec-
tions:
Part number Tightening torque [Nm]
01 72005, 82005, 82007 M18x1.5
60Nm
02 82022 M12
85Nm
03 72013 M12
85Nm
04 77022 M8
40Nm
05 42007 M8
25Nm
06 72011 M10
75Nm
07 42009 M16
20Nm
08 51007 M10
45Nm
09 51005 M8
25Nm
10 51009 M10
45Nm
11 51028, 61005 M18x1.5
60Nm
12 61003 M16
180Nm
13 86505 M12x1.5
15Nm
14 42188 M12x1.5
35Nm
Table50: Tightening torques [Nm]
