ABB PT003915 - Fig. 45: Figure for Cover Plate, Slots for O-Rings; Table 53: Dimensions of Cover Plate, Slots for O-Rings [MM]

Operation Manual / Power2 340-H / High-pressure stage
10 Taking out of operation at short notice / 10.4 Cover plate drawing
© Copyright 2022 ABB. All rights reserved. HZTL4054_EN Rev.F March 2022
Slots for O-rings in cover plate

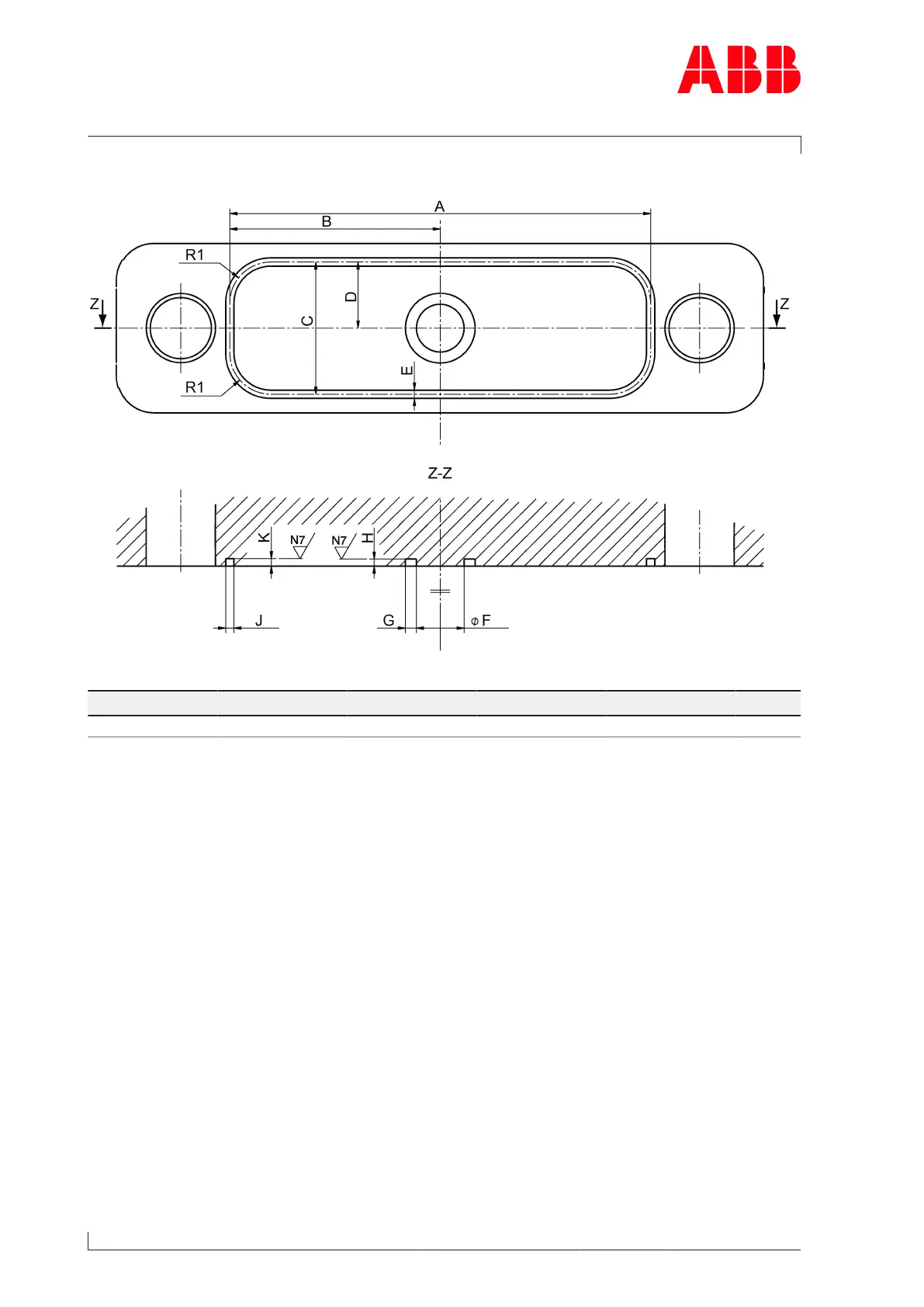

Fig.45: Figure for cover plate, slots for O-rings
A B C D E F G H J K R1
172 86 54 27 3.4 19.5 4.5 2.9 3.4 3.1 16.8
Table53: Dimensions of cover plate, slots for O-rings [mm]
Page 92 / 114
