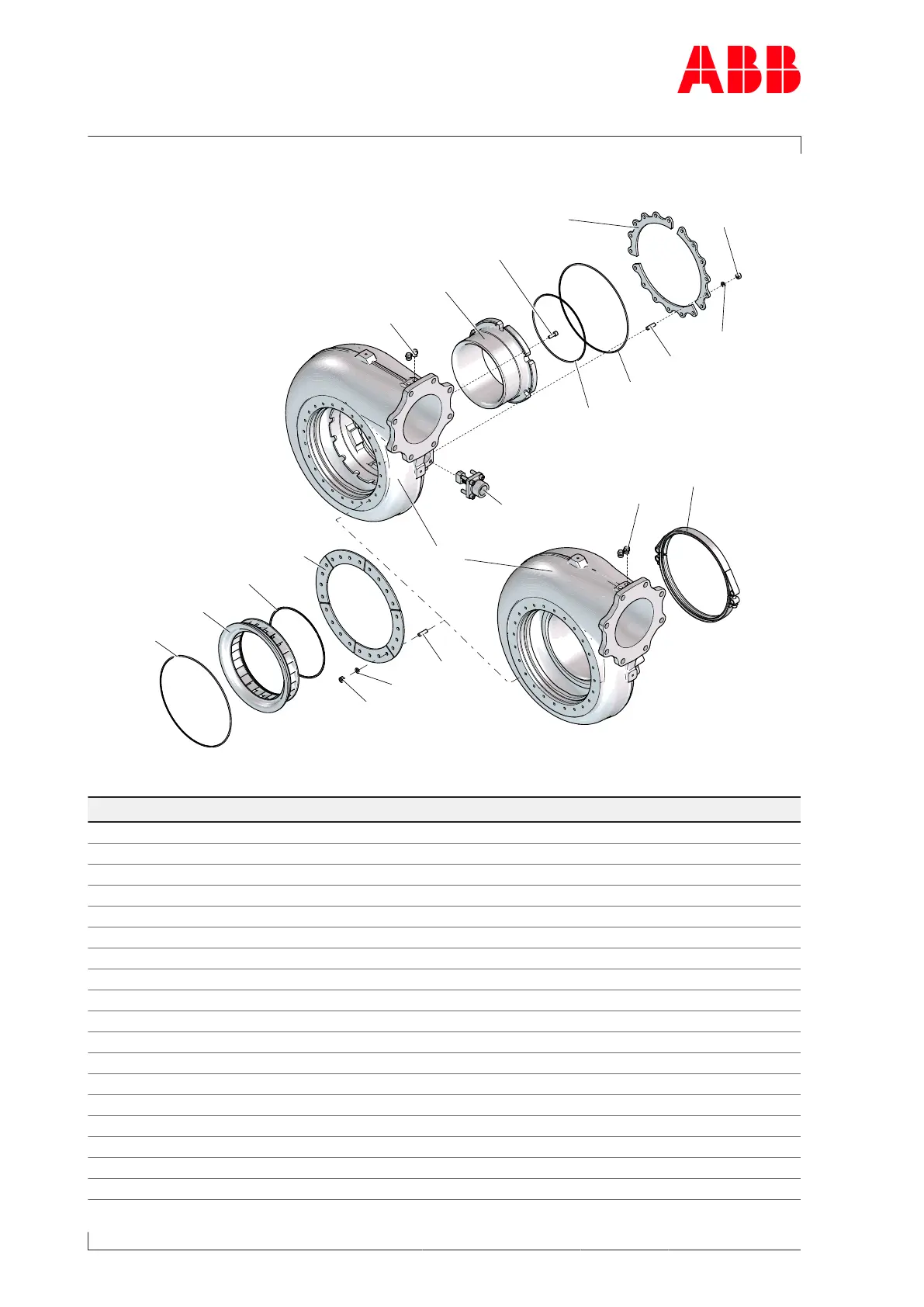

Turbine casing
51003
51105*
51026*
51005*
51015
51009
51004
51008
57004*
57002
Turbine cleaning**
51028
51006
61072
51002
51000
51007
56005*
56001
51028
* = Available within the spare part set HZTL443282 Mod. A
** = if provided
THV03
THV05
Part no. Designation
51000 Turbine casing
51002 Fastening strip
51003 Verbusripp washer
51004 Verbusripp washer
51005* Socket screw
51006 Stud
51007 Hexagon nut
51008 Stud
51009 Hexagon nut
51015 Fastening strip
51026* Metal C-ring
51028 Screw plug
51105* Metal C-ring
56001 Nozzle ring
56005* Lamellar sealing ring
57002 Gas-outlet flange
57004* Metal C-ring
61072 V-clamp
