63Installation

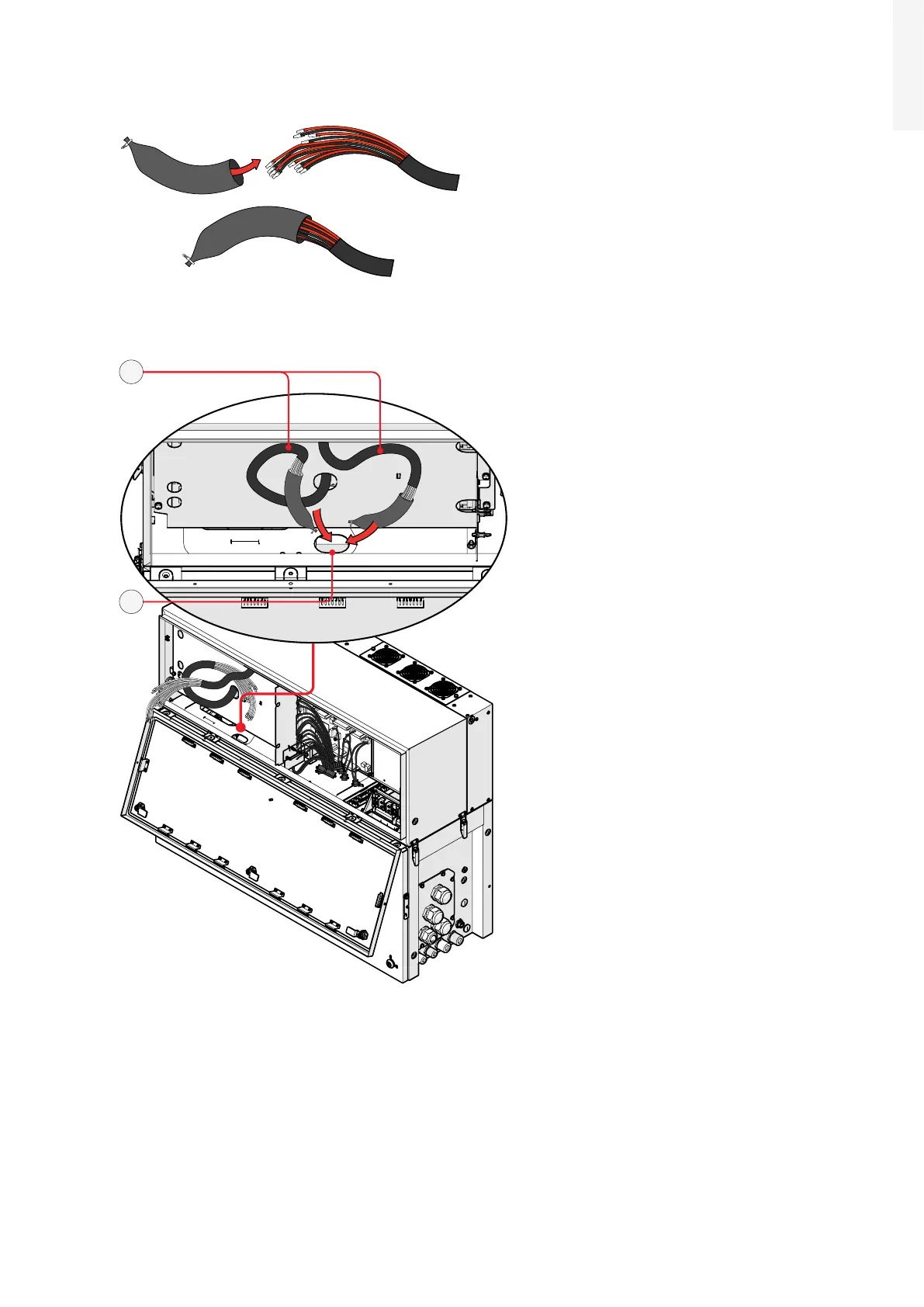

• Wrap the DC interface cables (33) with the two cable sheaths supplied in the wiring box installation kit.

•

Pass the DC interface cables (33) into the wiring box using the dedicated opening for DC interface cables

(30) as shown in the picture.

• Close the power module cover (06) and open the wiring box cover (07).
